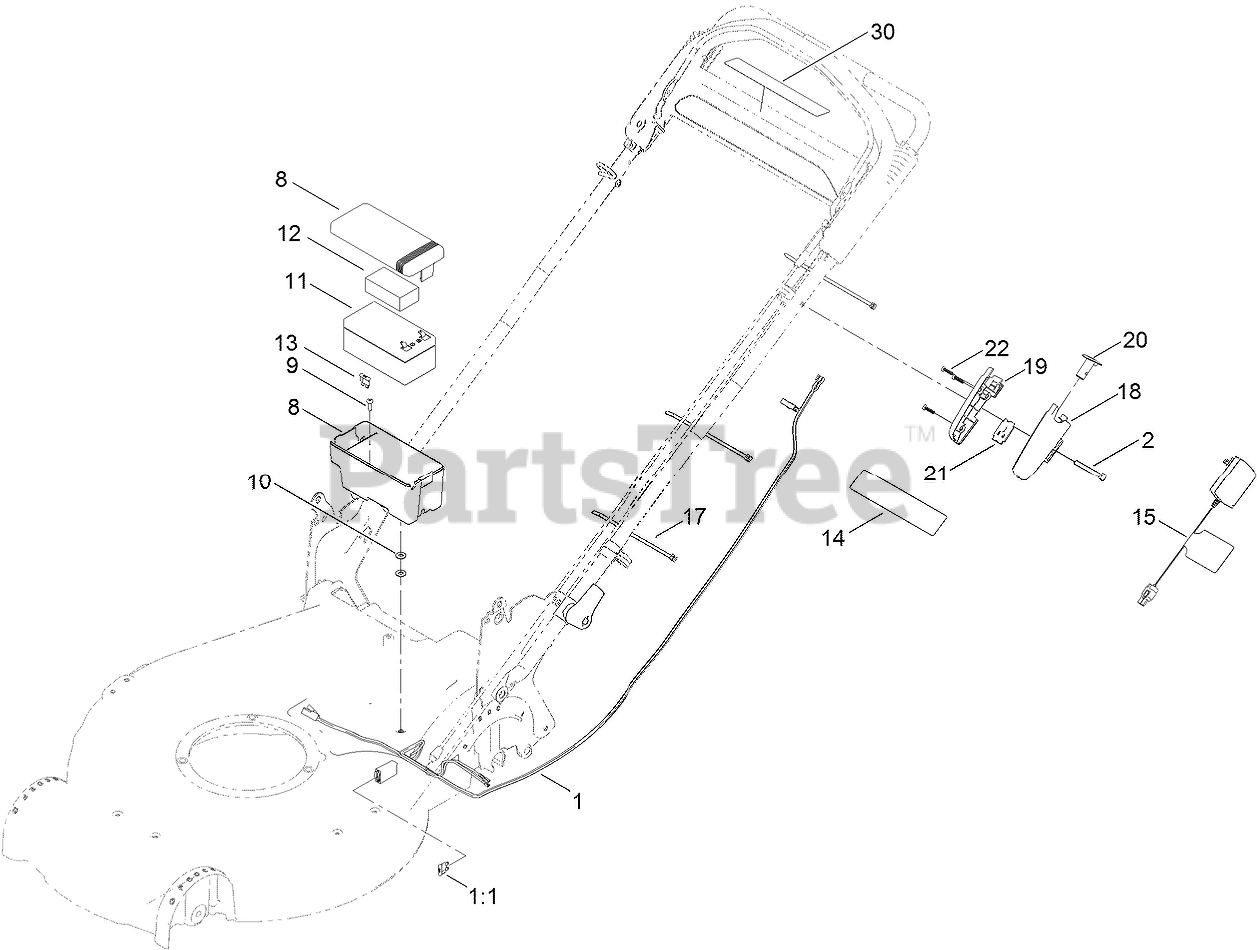

21691 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 409000000 - 999999999) Electrical Assembly Parts Diagram

53cm Super Recycler Walk-Behind Mower

Electrical Assembly Parts Diagram

  • Title

1

Toro 125-5025

HARNESS-WIRE

$86.99

$

Usually ships in 3-6 days

0

1:1

Toro 99-6124

FUSE-40 AMP

$5.49

$

In Stock, Qty 8

0

2

Toro 137-3034

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

8

Toro 108-4844

BATTERY BOX ASM

$23.99

$

Usually ships in 3-6 days

0

9

Toro 139-1714

SCREW-THD FORM

$2.49

$

Usually ships in 3-6 days

0

10

Toro 120-9679

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

11

Toro 106-8397

BATTERY-WET

$79.99

$

Usually ships in 3-6 days

0

12

Toro 107-3774

FOAM-BATTERY, TOP

$4.99

$

In Stock, Qty 9

0

13

Toro 99-6124

FUSE-40 AMP

$5.49

$

In Stock, Qty 8

0

14

Toro 140-4357

DECAL-BATTERY CHARGING

$10.99

$

Usually ships in 3-6 days

0

15

Toro 137-9153

CHARGER, BATTERY (12V, CE)

$53.99

$

Usually ships in 3-6 days

0

17

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

18

Toro 133-8160

HOUSING-SWITCH, LH

$1.99

$

In Stock, Qty 5

0

19

Toro 133-8161

HOUSING-SWITCH, RH

$1.99

$

In Stock, only 2 left!

0

20

Toro 125-2470

BUTTON-SWITCH

$2.49

$

In Stock, Qty 11

0

21

Toro 121-9173

SWITCH-PUSH BUTTON

$23.99

$

In Stock, only 1 left!

0

22

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

30

Toro 133-1900

DECAL-BUTTON, PUSH

$5.99

$

In Stock, only 2 left!

0
