21681 - Toro 48cm Super Recycler Walk-Behind Mower (SN: 405490000 - 407029999) Carburetor, Muffler, Air Cleaner and Valve Cover Assembly Parts Diagram

48cm Super Recycler Walk-Behind Mower

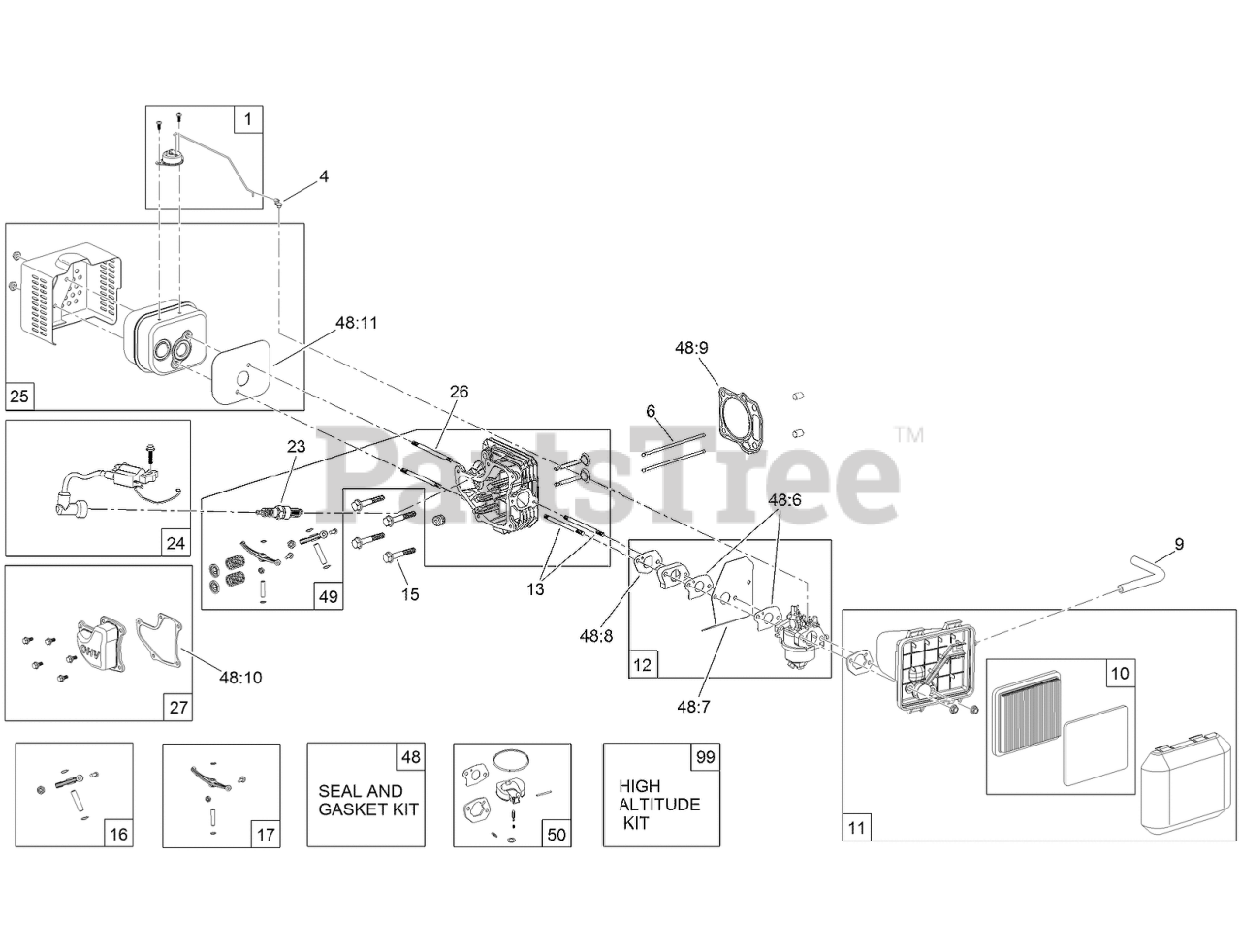

Carburetor, Muffler, Air Cleaner and Valve Cover Assembly Parts Diagram

  • Title

1

Toro 121-4175

THERMAL CONTROL KIT

$31.99

$

Usually ships in 3-6 days

0

4

Toro 120-4451

LOCK-THROTTLE

$2.49

$

In Stock, Qty 15

0

6

Toro 121-4193

ROD-PUSH

$2.49

$

Usually ships in 3-6 days

0

9

Toro 119-1902

TUBE-BREATHER

$4.49

$

Usually ships in 3-6 days

0

10

Toro 119-1909

AIR FILTER AND PREFILTER KIT

$19.99

$

In Stock, Qty 6

0

11

Toro 121-4177

AIR CLEANER ASM KIT

$38.99

$

In Stock, only 2 left!

0

12

Toro 136-7907

CARB REPLACEMENT KIT

$92.99

$

In Stock, only 1 left!

0

13

Toro 121-0367

STUD-INTAKE

$3.49

$

Usually ships in 3-6 days

0

15

Toro 121-0043

BOLT-FLANGE

$1.49

$

Usually ships in 3-6 days

0

16

Toro 136-7869

INTAKE ROCKER ARM ASM

$19.99

$

Usually ships in 3-6 days

0

17

Toro 136-7868

EXHAUST ROCKER ARM ASM

$20.99

$

Usually ships in 3-6 days

0

23

Toro 121-4199

SPARK PLUG

$4.49

$

In Stock, Qty 16

0

24

Toro 136-7912

IGNITION ASM

$66.99

$

Usually ships in 3-6 days

0

25

Toro 121-4277

MUFFLER AND SHIELD KIT

$82.99

$

Usually ships in 3-6 days

0

26

Toro 121-0045

STUD-EXHAUST

$1.99

$

In Stock, only 2 left!

0

27

Toro 121-4188

VALVE COVER KIT

$30.99

$

Usually ships in 3-6 days

0

48

Toro 127-9144

SEAL AND GASKET KIT

$45.99

$

In Stock, only 1 left!

0

48:1

Toro 121-0019

SEAL-OIL

Note: Not illustrated

$1.99

$

Usually ships in 3-6 days

0

48:2

Toro 121-0020

GASKET-BREATHER

Note: Not illustrated

$1.99

$

Usually ships in 3-6 days

0

48:3

Toro 121-0021

SEAL-OIL

Note: Not illustrated

$1.99

$

Usually ships in 3-6 days

0

48:4

Toro 120-4459

GASKET-COVER, CASE

Note: Not illustrated

$9.49

$

Usually ships in 3-6 days

0

48:5

Toro 121-0022

SEAL-OIL

Note: Not illustrated

$2.49

$

Usually ships in 3-6 days

0

48:6

Toro 121-4184

GASKET-CARBURETOR

$1.99

$

In Stock, Qty 12

0

48:7

Toro 120-4446

INSULATOR-CARBURETOR

$

$

Currently unavailable

48:8

Toro 121-4183

GASKET-INTAKE

$1.99

$

Usually ships in 3-6 days

0

48:9

Toro 121-4197

GASKET-HEAD

$5.49

$

Usually ships in 3-6 days

0

48:10

Toro 121-4190

GASKET-VALVE COVER

$4.49

$

Usually ships in 3-6 days

0

48:11

Toro 121-0034

GASKET-EXHAUST

$2.49

$

In Stock, only 1 left!

0

48:12

Toro 121-4179

GASKET-AIR CLEANER

Note: Not illustrated

$2.49

$

Usually ships in 3-6 days

0

49

Toro 136-7915

COMPLETE HEAD ASM

$172.99

$

Usually ships in 3-6 days

0

50

Toro 127-9146

INTERNAL CARB KIT WITH GASKETS

$25.99

$

In Stock, only 1 left!

0

99

Toro 121-4242

HIGH ALTITUDE KIT

$13.99

$

Usually ships in 3-6 days

0
