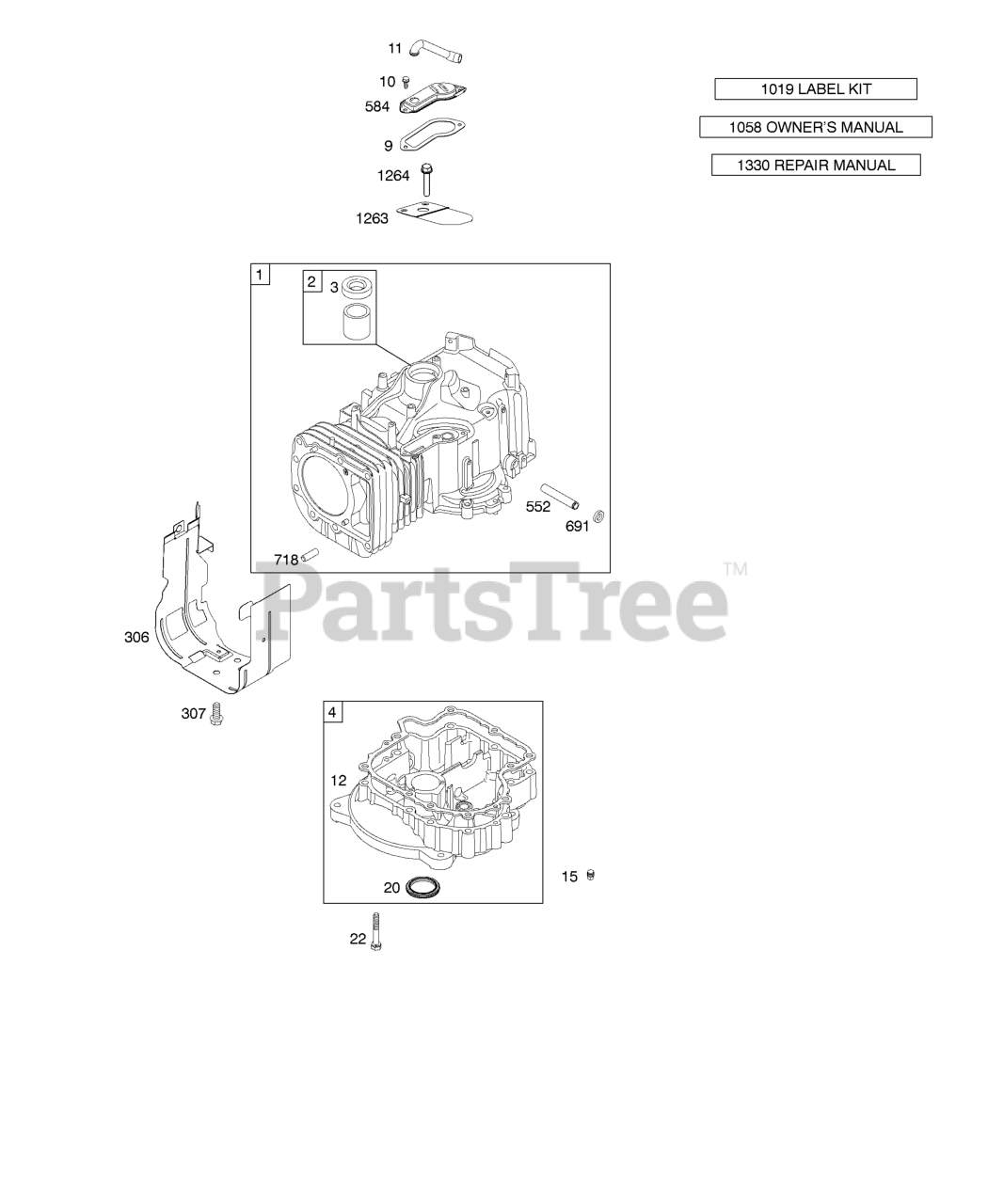

216802-0108-E1 - Briggs & Stratton Vertical Engine Cylinder, Engine Sump Parts Diagram

Vertical Engine

Cylinder, Engine Sump Parts Diagram

  • Title

1

Briggs & Stratton 697377

CYLINDER ASSEMBLY

$471.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399265

Kit-Bushing/Seal
(Superseded to 797673)

Note: (Magneto Side)

$18.99

$

In Stock, Qty 8

0

3

Briggs & Stratton 391086S

SEAL, Oil

Note: (Magneto Side)

$6.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 697106

SUMP, Engine

$308.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 697109

Gasket-Breather

$7.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 697157

SCREW

Note: (Breather Assembly)

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 697113

Tube-Breather
(Superseded to 794683)

$7.99

$

In Stock, Qty 20+

0

12

Briggs & Stratton 697110

GASKET, Crankcase

Note: (.015" Thick)(Standard)

$7.49

$

In Stock, Qty 20+

0

15

Briggs & Stratton 690946

PLUG, Oil Drain

Note: (3/8" Standard)

$5.99

$

In Stock, Qty 14

0

20

Briggs & Stratton 690947

Seal-Oil
(Superseded to 795387)

Note: (PTO Side)

$7.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 692125

SCREW

Note: (Crankcase Cover/Sump)

$4.99

$

In Stock, only 4 left!

0

306

Briggs & Stratton 697359

Shield-Cylinder
(Superseded to 592778)

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 691003

SCREW

Note: (Cylinder Shield)

$3.49

$

In Stock, Qty 9

0

552

Briggs & Stratton 697144

BUSHING, Governor Crank

$9.49

$

Usually ships in 2-12 days

0

584

Briggs & Stratton 697112

Cover-Breather Passage
(Superseded to 794682)

$9.49

$

In Stock, Qty 6

0

691

Briggs & Stratton 692407

SEAL, Governor Shaft

$7.99

$

In Stock, Qty 8

0

718

Briggs & Stratton 690959

PIN, Locating

$6.99

$

In Stock, only 1 left!

0

1019

Briggs & Stratton 697764

Kit-Label

$37.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 276344

Operator's Manual
(Superseded to 276344TRI)

$

$

Not available

1263

Briggs & Stratton 697124

REED, Breather

$7.49

$

In Stock, Qty 20+

0

1264

Briggs & Stratton 697104

SCREW

Note: (Breather Reed)

$3.99

$

Usually ships in 2-12 days

0

1330

Briggs & Stratton 272147

Repair Manual

$59.99

$

In Stock, only 4 left!

0
