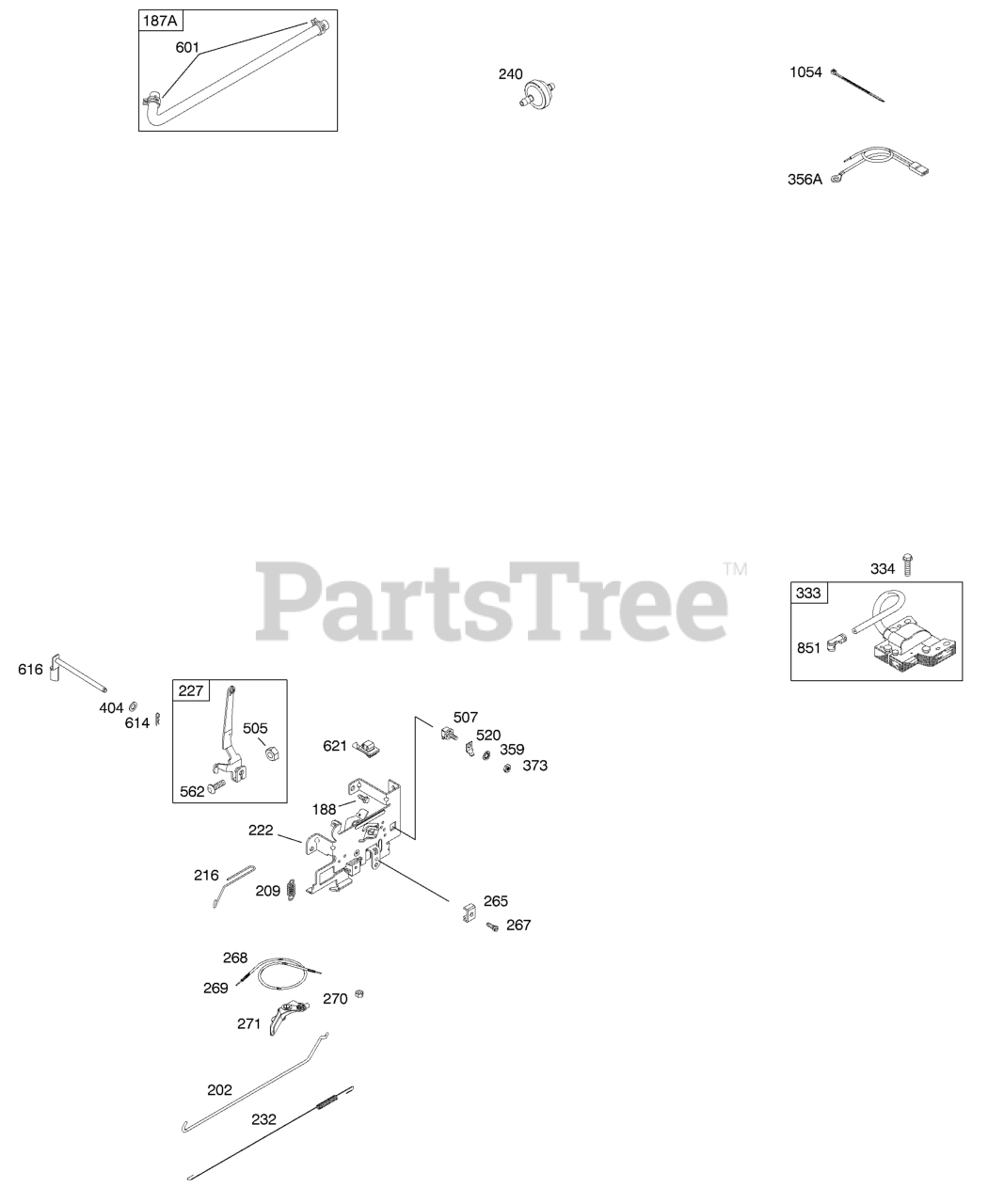

216802-0108-E1 - Briggs & Stratton Vertical Engine Controls, Fuel System, Ignition Parts Diagram

Vertical Engine

Controls, Fuel System, Ignition Parts Diagram

  • Title

187A

Briggs & Stratton 791806

Line-Fuel

Note: (Formed)(Cut To Required Length) Used After Code Date 05063000

$54.99

$

Usually ships in 2-12 days

0

187A

Briggs & Stratton 699332

Line-Fuel
(Superseded to 791806)

Note: (Formed)(Cut To Required Length) Used Before Code Date 05070100

$54.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 691693

SCREW

Note: (Control Bracket)

$3.99

$

In Stock, Qty 12

0

202

Briggs & Stratton 691841

LINK, Mechanical Governor

$9.49

$

In Stock, Qty 17

0

209

Briggs & Stratton 691278

Spring-Governor

Note: (Platinum)

$7.99

$

In Stock, only 2 left!

0

216

Briggs & Stratton 691840

LINK, Choke

$8.99

$

In Stock, Qty 20+

0

222

Briggs & Stratton 694042

Bracket-Control
(Superseded to 597209)

$38.99

$

In Stock, Qty 20+

0

227

Briggs & Stratton 691374

LEVER, Governor Control

$26.99

$

In Stock, only 2 left!

0

232

Briggs & Stratton 691842

SPRING, Governor Link

$11.99

$

In Stock, Qty 20+

0

240

Briggs & Stratton 394358S

FILTER, Fuel

Note: (White)

$5.99

$

In Stock, Qty 20+

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 690804

Screw

Note: (Casing Clamp)

$

$

Not available

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356A

Briggs & Stratton 398808

WIRE, Stop (30" Cut To Required Length)

Note: (2 Wires, 15" And 15-11/16" Long)(Snap Connect Insulated Female BladeTerminal, Ring Terminal, And Bare Wire End)

$11.99

$

In Stock, only 1 left!

0

359

Briggs & Stratton 691077

Washer

Note: (Ground Terminal)

$3.49

$

In Stock, only 2 left!

0

373

Briggs & Stratton 691612

NUT

Note: (Ground Terminal)

$3.49

$

In Stock, only 1 left!

0

404

Briggs & Stratton 691691

WASHER

Note: (Governor Crank)

$3.99

$

In Stock, Qty 5

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

507

Briggs & Stratton 691972

Insulator

$8.49

$

In Stock, only 3 left!

0

520

Briggs & Stratton 691084

Terminal-Ground

$6.49

$

In Stock, only 2 left!

0

562

Briggs & Stratton 691119

BOLT

Note: (Governor Control Lever)

$4.49

$

In Stock, Qty 17

0

601

Briggs & Stratton 95162S

Clamp-Hose
(Superseded to 791850)

Note: (Zinc Plate)(Spring Wire)

$3.49

$

In Stock, Qty 20+

0

614

Briggs & Stratton 691620

PIN, Cotter

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 692012

CRANK, Governor

$13.99

$

In Stock, only 2 left!

0

621

Briggs & Stratton 692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

851

Briggs & Stratton 692424

Terminal-Spark Plug

$5.99

$

In Stock, Qty 13

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0
