21680 - Toro 48cm Super Recycler Walk-Behind Mower (SN: 405100000 - 999999999) Handle Assembly Parts Diagram

48cm Super Recycler Walk-Behind Mower

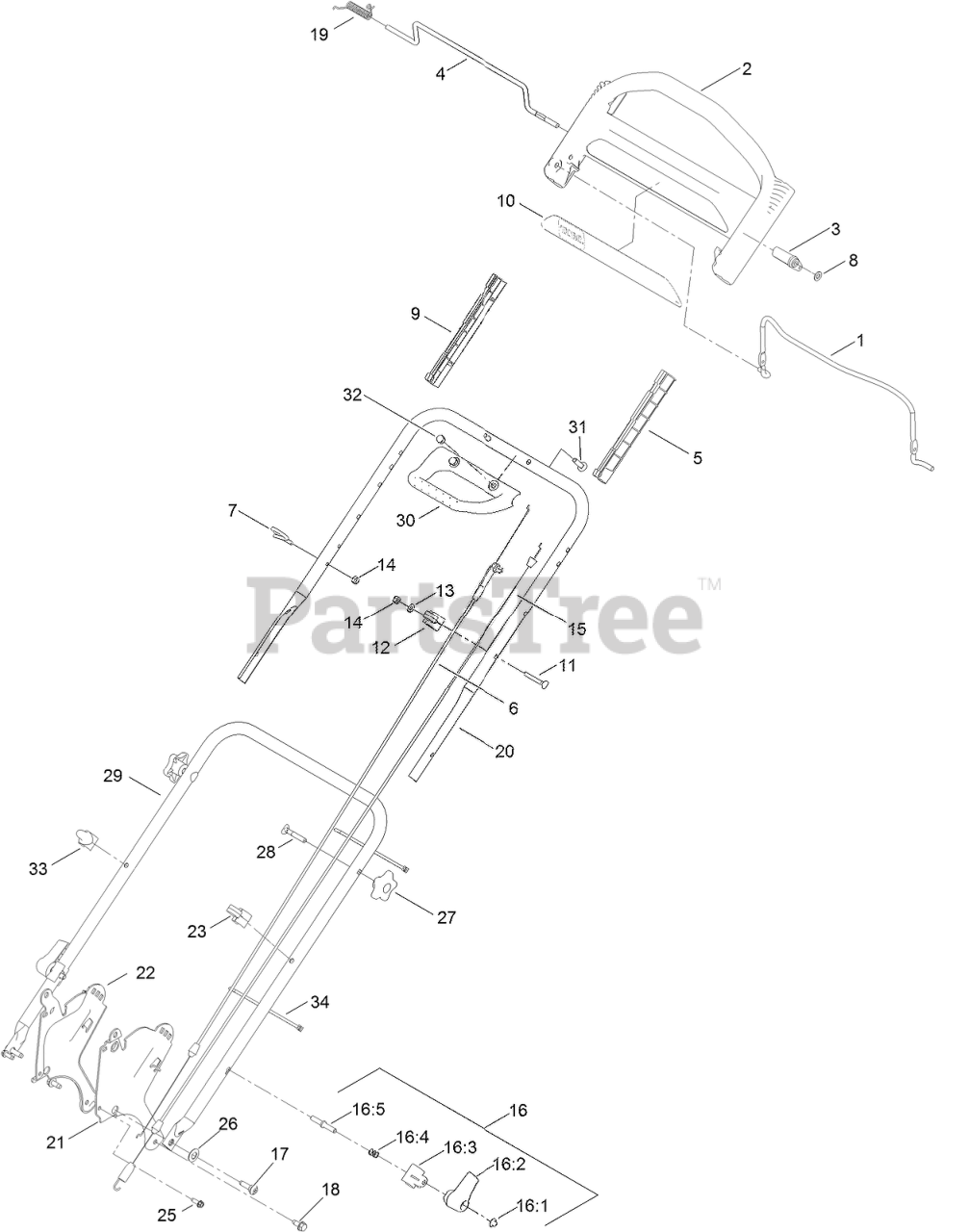

Handle Assembly Parts Diagram

  • Title
1

Toro 131-0880-03

BAIL-BRAKE

$25.99

$

In Stock, only 1 left!

0

2

Toro 104-8678

HANDLE-CONTROL

$83.99

$

Usually ships in 3-6 days

0

3

Toro 99-1589

LEVER-TRACTION

$7.99

$

In Stock, Qty 15

0

4

Toro 136-7150

BAR-CONTROL, TRACTION

$17.99

$

In Stock, only 1 left!

0

5

Toro 105-6842

GUIDE-LH

$8.99

$

In Stock, only 3 left!

0

6

Toro 120-3921

CABLE-BRAKE

$58.99

$

In Stock, only 1 left!

0

7

Toro 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 5

0

8

Toro 120-9683

WASHER-PLAIN

$2.99

$

Usually ships in 3-6 days

0

9

Toro 105-6841

GUIDE-RH

$8.99

$

In Stock, only 2 left!

0

10

Toro 120-3911

DECAL-HANDLE

$15.99

$

Usually ships in 3-6 days

0

11

Toro 137-3109

BOLT-CARR

$1.99

$

Usually ships in 3-6 days

0

12

Toro 136-5864

ANCHOR-CABLE

$2.99

$

In Stock, Qty 7

0

13

Toro 139-1699

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

14

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 14

0

15

Toro 117-9389

CABLE-TRACTION

$39.99

$

In Stock, only 1 left!

0

16

Toro 115-2860

QUICK RELEASE ASM
(Superseded to 138-3249)

$11.99

$

In Stock, only 2 left!

0

16:1

Toro 32112-11

NUT-PUSH

$1.49

$

In Stock, only 3 left!

0

16:2

Toro 138-3248

LEVER-RELEASE
(Superseded to 138-3249)

$11.99

$

In Stock, only 2 left!

0

16:3

Toro 138-3253

ANCHOR-SPRING
(Superseded to 138-3249)

$11.99

$

In Stock, only 2 left!

0

16:4

Toro 115-2858

SPRING-COMPRESSION

$3.49

$

In Stock, only 2 left!

0

16:5

Toro 138-3243

ROD-RELEASE

$2.49

$

Usually ships in 3-6 days

0

17

Toro 139-1693

SCREW-SHOULDER, BHTF

$2.99

$

Usually ships in 3-6 days

0

18

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

19

Toro 136-7166

SPRING-TORSION

$3.49

$

In Stock, only 4 left!

0

20

Toro 132-4484-05

HANDLE-UPPER

$53.99

$

In Stock, only 1 left!

0

21

Toro 114-2671-03

BRACKET-HANDLE, LH

$27.99

$

Usually ships in 3-6 days

0

22

Toro 114-2672-03

BRACKET-HANDLE, RH

$27.99

$

Usually ships in 3-6 days

0

23

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 7

0

25

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

26

Toro 112-9972

WASHER-SPRING, CONICAL

$7.99

$

In Stock, only 2 left!

0

27

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 14

0

28

Toro 137-3107

SCREW-HANDLE

$1.99

$

In Stock, Qty 15

0

29

Toro 117-9380-05

HANDLE-LOWER

$61.99

$

Usually ships in 3-6 days

0

30

Toro 131-0847

HANDLE-ASSIST, TRACTION

$14.99

$

In Stock, only 2 left!

0

31

Toro 139-1702

BOLT-CARRIAGE

$1.49

$

In Stock, only 2 left!

0

32

Toro 137-4808

NUT-ACORN

$1.99

$

Usually ships in 3-6 days

0

33

Toro 117-4141

GUIDE-ROPE, LOWER

$13.99

$

In Stock, only 4 left!

0

34

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0
