21678x30A - Murray 21" Walk-Behind Mower (1996) Mower Housing Assembly Parts Diagram

21" Walk-Behind Mower

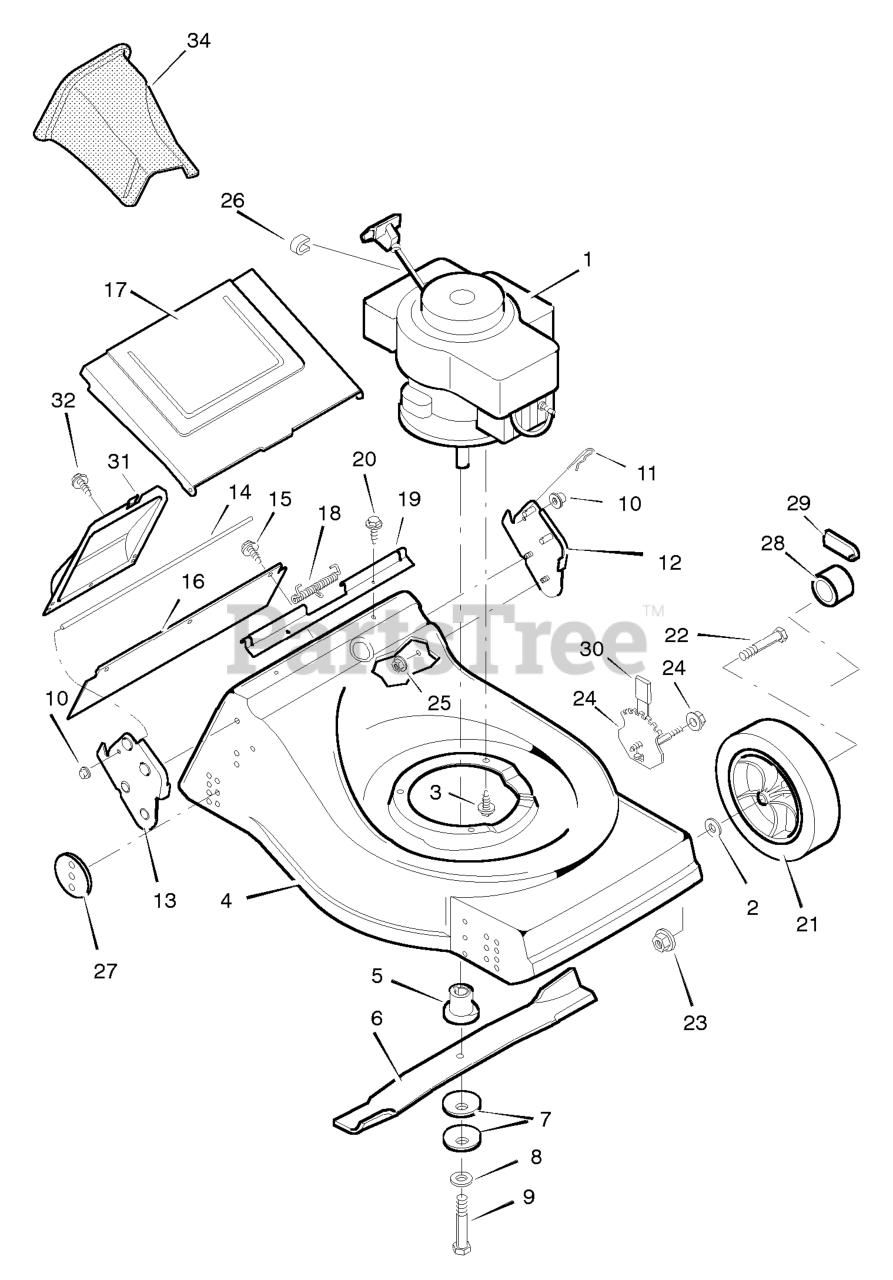

Mower Housing Assembly Parts Diagram

  • Title
1

Engine *

$

$

Not available

2

Murray 108512

Washer
(Superseded to 2108512SM)

$36.99

$

In Stock, only 1 left!

0

3

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

4

Murray 070162

Housing

$

$

Not available

5

Murray 071056MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

$13.99

$

Usually ships in 2-12 days

0

7

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

8

$4.49

$

Usually ships in 2-12 days

0

9

Murray 01X142MA

Bolt, Hex

$8.49

$

In Stock, only 2 left!

0

10

Murray 028X42MA

Push- On Cap

$3.99

$

Usually ships in 2-12 days

0

11

Murray 031X10MA

Pin, Hair

$3.49

$

Usually ships in 2-12 days

0

12

Murray 71097E701

Bracket, Left Handle

$

$

Currently unavailable

13

Murray 71096E701

Bracket, Right Handle

$

$

Currently unavailable

14

Murray 215X14 Z

Rod, Door Pivot

$

$

Currently unavailable

15

$4.49

$

In Stock, Qty 6

0

16

Murray 043640

Deflector, Rear

Note: (Model with Height Adjusters)

$

$

Not available

--

Murray 042678

Deflector, Rear

Note: (Model without Height Adjusters)

$

$

Currently unavailable

17

Murray 071517

Door, Rear

$

$

Currently unavailable

18

Murray 166X33MA

Spring, Torsion

$6.99

$

In Stock, only 1 left!

0

19

Murray 071410MA

Spacer, Door

$7.99

$

Usually ships in 2-12 days

0

20

$4.49

$

In Stock, only 4 left!

0

21

Wheel and Tire *

$

$

Not available

22

Murray 009X10MA

Bolt, Axle

$

$

Not available

23

Murray 15X682

Nut, Flange

$

$

Currently unavailable

24

Murray 401025MA

Adjuster, Height

$72.99

$

Usually ships in 2-12 days

0

25

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

26

Murray 042189MA

Stop, Rope

$3.99

$

Usually ships in 2-12 days

0

27

$1.99

$

Usually ships in 2-12 days

0

28

Murray 020107MA

Hub Cap

Note: (Optional)

$4.49

$

Usually ships in 2-12 days

0

29

Murray 043847MA

Hub Cap

Note: (Optional)

$4.49

$

Usually ships in 2-12 days

0

--

Murray 043615MA

Hub Cap

Note: 0ptional; (For 8x2 in. Plastic Wheel)

$4.49

$

Usually ships in 2-12 days

0

30

$

$

Not available

31

Murray 71246E701

Cover, Transmission

$9.49

$

Usually ships in 2-12 days

0

32

$4.49

$

Usually ships in 2-12 days

0

34

Murray 071250MA

Plug, Mulcher

$97.99

$

Usually ships in 2-12 days

0

--

Book, Instruction

$

$

Not available
