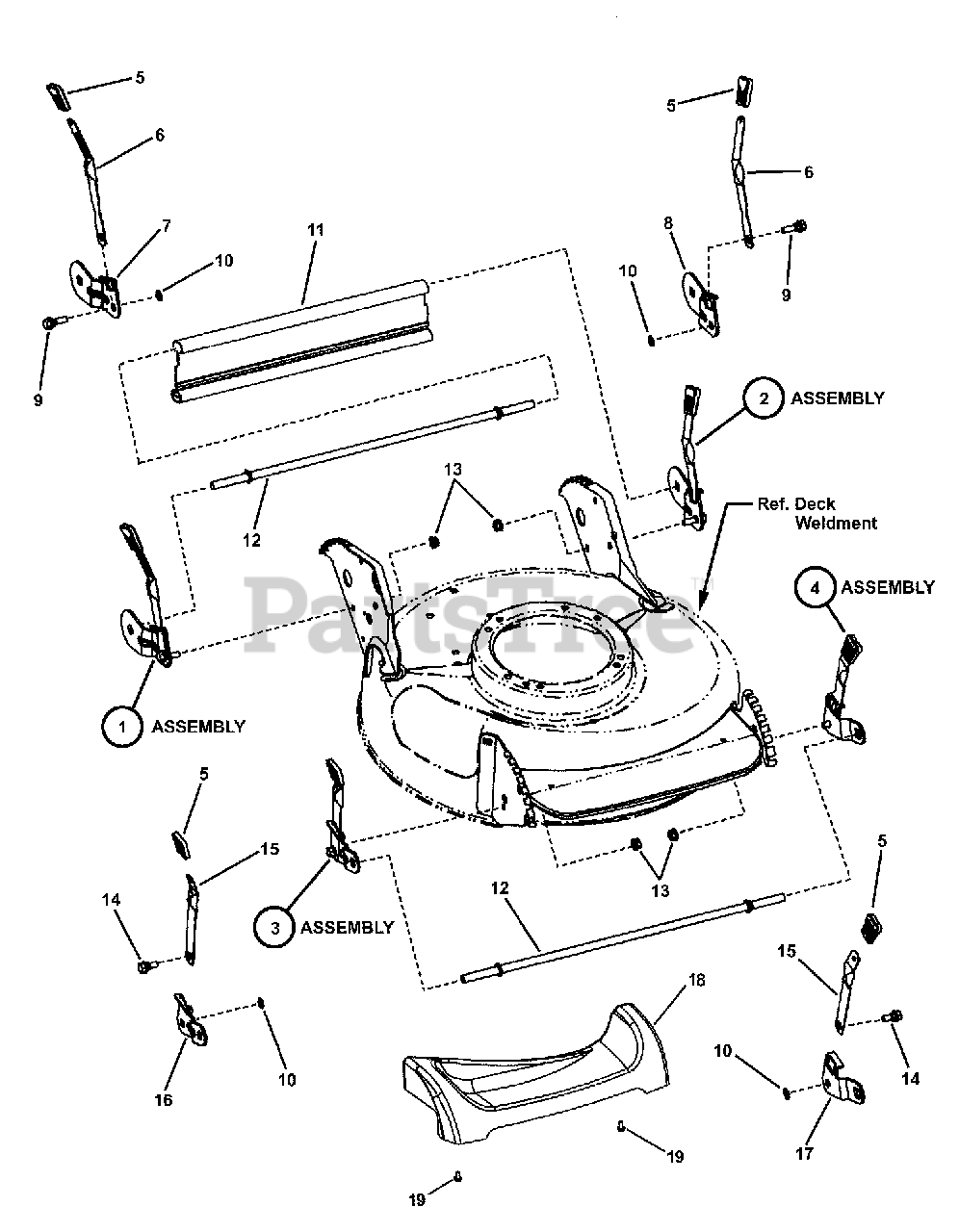

2167520BFC (7800434) - Snapper 21" Walk-Behind Mower, 6.75hp Wheel Brackets & Latches (Push) Parts Diagram

21" Walk-Behind Mower, 6.75hp

Wheel Brackets & Latches (Push) Parts Diagram

  • Title

1

Snapper 7054228

ASSEMBLY, Wheel Arm, Right Rear (Push)
(Superseded to 7054228YP)

$

$

Not available

2

Snapper 7600175

ASSEMBLY, Wheel Arm, Left Rear Long (Push)
(Superseded to 7600175YP)

Note: (was 7501119)

$25.99

$

Usually ships in 2-12 days

0

3

Snapper 7051886

ASSEMBLY, Right Wheel Arm
(Superseded to 7600180YP)

$

$

Not available

4

Snapper 7500038

ASSEMBLY, Left Wheel Arm (.512" Square Hole)
(Superseded to 7600183YP)

$

$

Not available

5

Snapper 7100633

GRIP, Height Latch - Black (1.3" Wide)
(Superseded to 7103793YP)

$4.49

$

In Stock, Qty 9

0

5

Snapper 7103793

GRIP, Height Latch - Black (1.7" Wide)
(Superseded to 7103793YP)

$4.49

$

In Stock, Qty 9

0

6

Snapper 7035717

LATCH, Height Adjusting (long)
(Superseded to 7035717YP)

$6.99

$

In Stock, Qty 10

0

7

Snapper 7033776

ARM, Wheel, Right Rear
(Superseded to 7033776YP)

$8.49

$

In Stock, only 1 left!

0

8

Snapper 7102587

ARM, Wheel, Left Rear
(Superseded to 7102587YP)

$9.49

$

Usually ships in 2-12 days

0

9

Snapper 7011078

BOLT, 5/16-18 x 1" Hex Washer Face Shoulder
(Superseded to 703840)

$5.49

$

In Stock, only 2 left!

0

10

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

11

Snapper 7103210

GUARD, Rear (21 Push)
(Superseded to 7103210YP)

$17.99

$

Usually ships in 2-12 days

0

12

Snapper 7100752

AXLE, Front, Easy Line (3/8-16 Threads)
(Superseded to 7100752YP)

$

$

Not available

13

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

Note: (was 7091070)

$5.49

$

In Stock, Qty 20+

0

14

Snapper 7015761

BOLT, 5/16-18 x 3/4" Hex Washer Face Shoulder
(Superseded to 703839)

$5.49

$

In Stock, only 3 left!

0

15

Snapper 7012325

LATCH, Height
(Superseded to 7012325YP)

$5.99

$

In Stock, Qty 20+

0

16

Snapper 7031017

WHEEL ARM, R.H. Front (Round Hole)
(Superseded to 7031017YP)

$14.99

$

Usually ships in 2-12 days

0

17

Snapper 7011393

WHEEL ARM, L.H. Front (Square Hole)
(Superseded to 7011393YP)

$

$

Not available

18

Snapper 7100196

COVER, Front 21" walk
(Superseded to 7100196YP)

$23.99

$

Usually ships in 2-12 days

0

19

Snapper 7900018

SCREW, Round Washer Head Torx, Hi-Lo
(Superseded to 703834)

$4.49

$

In Stock, only 4 left!

0
