2167519B (7800031) - Snapper 21" Walk-Behind Mower, 6.75hp WHEEL BRACKETS, LATCHES (Push) Parts Diagram

21" Walk-Behind Mower, 6.75hp

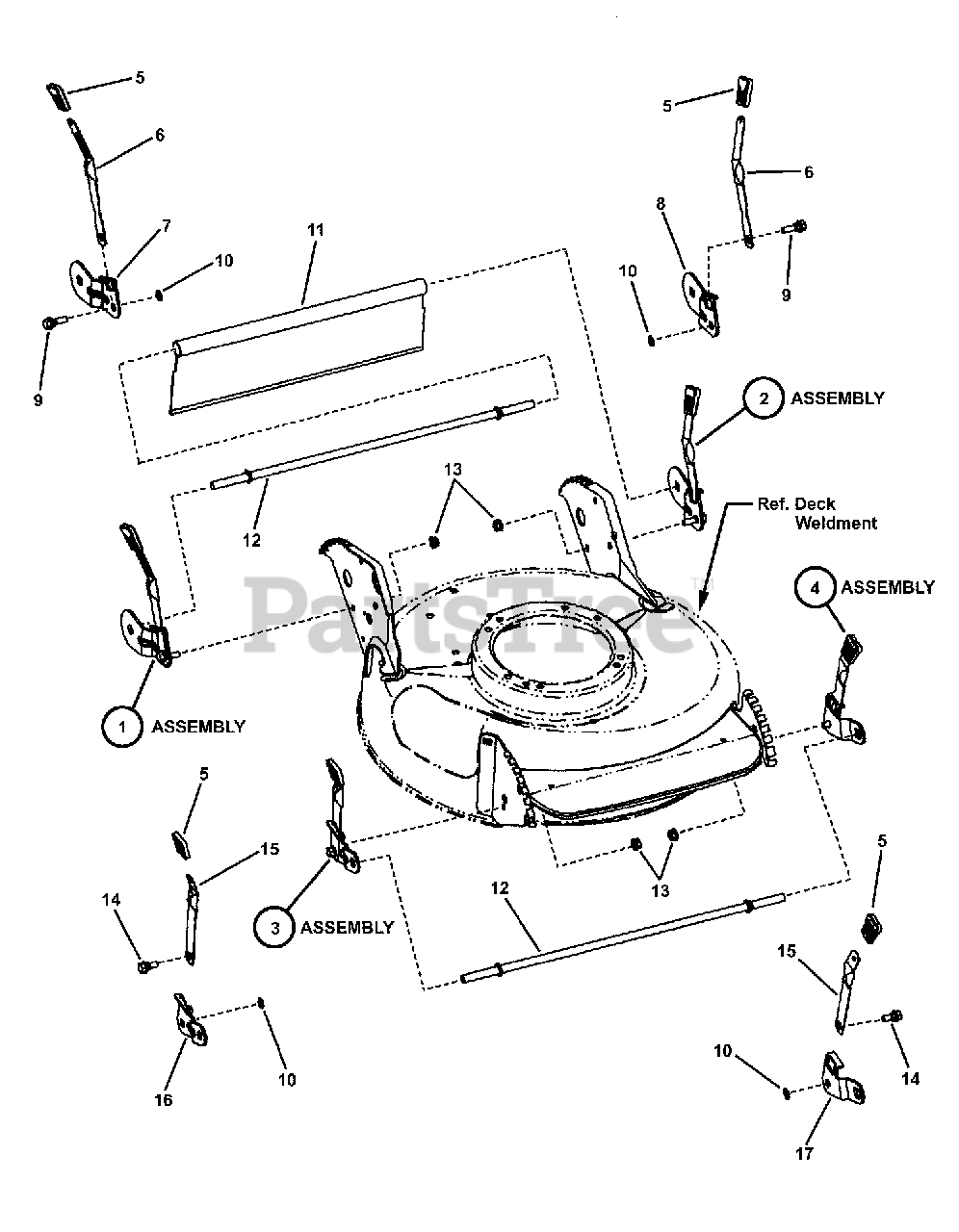

WHEEL BRACKETS, LATCHES (Push) Parts Diagram

  • Title

1

Snapper 7054228

ASSY, Wheel Arm, Right Rear (Push)
(Superseded to 7054228YP)

$

$

Not available

2

Snapper 7054229

ASSY, Wheel Arm Left Rear Long (Push)
(Superseded to 7053019YP)

$34.99

$

Usually ships in 2-12 days

0

3

Snapper 7051886

ASSEMBLY, Right Wheel Arm
(Superseded to 7600180YP)

$

$

Not available

4

Snapper 7051885

ASSEMBLY, Left Wheel Arm
(Superseded to 7600179YP)

$20.99

$

In Stock, Qty 9

0

5

Snapper 7100633

GRIP, Height Latch - Black (1.3" Wide)
(Superseded to 7103793YP)

$4.49

$

In Stock, Qty 9

0

6

Snapper 7035717

LATCH, Height Adjusting (long)
(Superseded to 7035717YP)

$6.99

$

In Stock, Qty 10

0

7

Snapper 7033776

ARM, Wheel, Right Rear
(Superseded to 7033776YP)

$8.49

$

In Stock, only 1 left!

0

8

Snapper 7033775

ARM, Wheel, Left Rear

$

$

Not available

9

Snapper 7011078

BOLT, 5/16-18 x 1" Hex Washer Face Shoulder
(Superseded to 703840)

$5.49

$

In Stock, only 2 left!

0

10

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

11

Snapper 7035741

FOOT GUARD, Long Rear (21 Push)
(Superseded to 7035741YP)

$49.99

$

Usually ships in 2-12 days

0

12

Snapper 7021119

AXLE, 21"
(Superseded to 7021119YP)

$22.99

$

In Stock, Qty 18

0

13

Snapper 7091070

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

Note: or 7090585 or 7091601

$5.49

$

In Stock, Qty 20+

0

14

Snapper 7015761

BOLT, 5/16-18 x 3/4" Hex Washer Face Shoulder
(Superseded to 703839)

$5.49

$

In Stock, only 3 left!

0

15

Snapper 7012325

LATCH, Height
(Superseded to 7012325YP)

$5.99

$

In Stock, Qty 20+

0

16

Snapper 7031017

WHEEL ARM, R.H. Front (Round Hole)
(Superseded to 7031017YP)

$14.99

$

Usually ships in 2-12 days

0

17

Snapper 7031016

WHEEL ARM, L.H. Front (Square Hole)
(Superseded to 7031016YP)

$7.99

$

In Stock, only 3 left!

0
