2166 (13A-254G100) - Cub Cadet Garden Tractor 42" Deck Assembly Parts Diagram

Garden Tractor

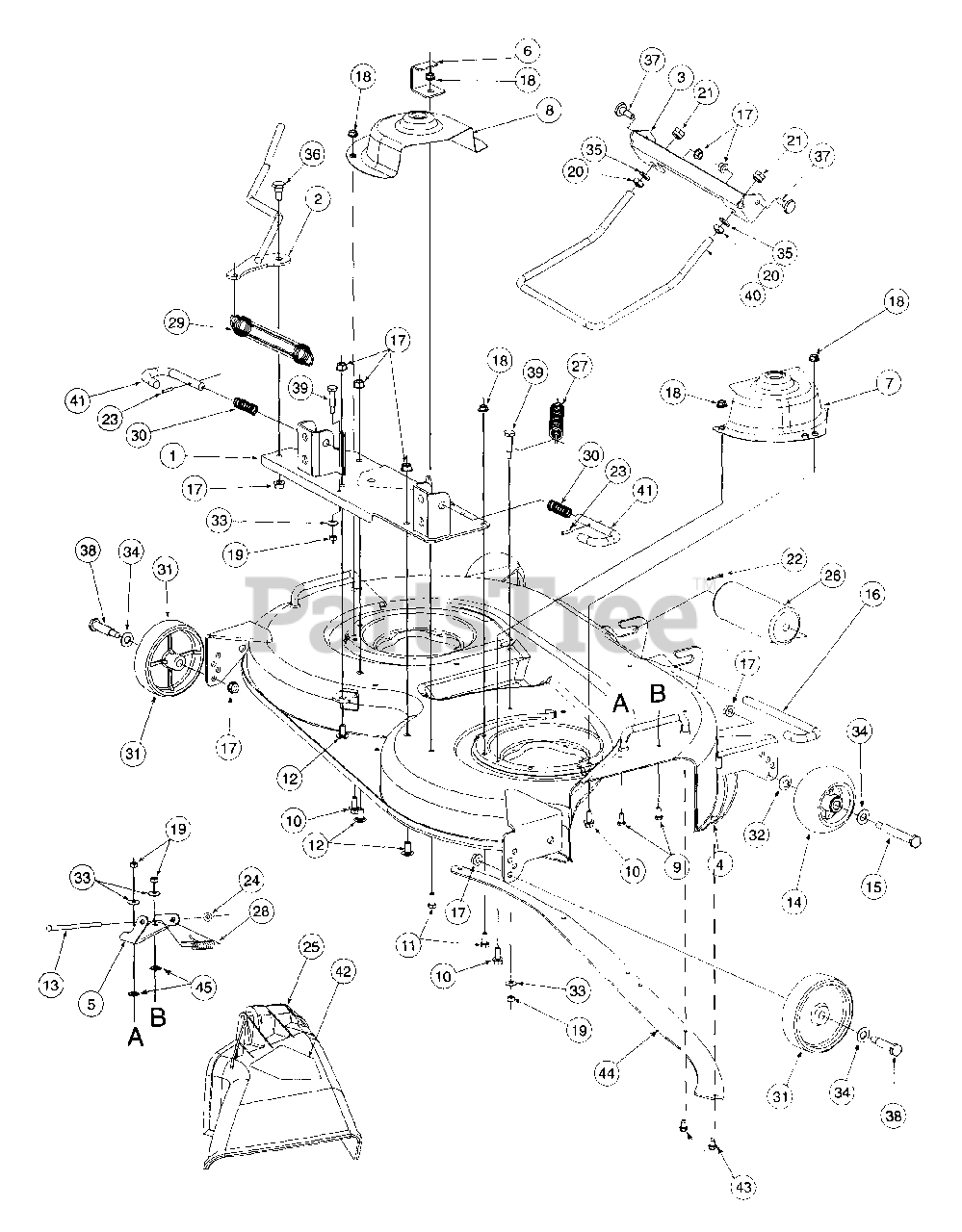

42" Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 603-0181A-0716

Plate Assembly, Mounting
(Superseded to 603-0181B-0716)

$192.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-0199

Handle, Tension

Variations

Cub Cadet 603-0199-0498

USE 603-0199-0716 HANDLE TEN - OLD CUB YELLOW (0498)

$54.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0199-0716

HANDLE TENSION - CUB YELLOW-99 (0716)

$54.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0199-0637

HANDLE TENSION - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 603-0199-4021

TENSION HANDLE - CUB YELLOW 2 (4021)

$

$

Not available

$54.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-0200-0716

Bracket, Front Lift
(Superseded to 703-2248-0716)

$47.99

$

In Stock, only 2 left!

0

4

Cub Cadet 603-0409A-0716

Deck Assembly
(Superseded to 903-0409D-4021)

$806.99

$

Usually ships in 3-6 days

0

Cub Cadet 777S30503

Graphic, Danger Keep Hands Away

$11.99

$

In Stock, only 2 left!

0

Cub Cadet 777S30014

Graphic, Caution Under Spring Tension

$9.99

$

Usually ships in 3-6 days

0

Cub Cadet 777S30018

Graphic, Danger Avoid Serious Injury

$8.49

$

In Stock, only 1 left!

0

5

Cub Cadet 703-1693A

Bracket, Hinge Mounting

$23.99

$

In Stock, only 4 left!

0

6

Cub Cadet 703-2559-0716

Bracket, Handle Stop
(Superseded to 703-2559-0637)

$26.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-3237-0716

Shield, RH Pulley
(Superseded to 703-3237-4021)

$66.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-2945

Shield, LH Pulley

Variations

Cub Cadet 703-2945-0498

USE 703-2945-0716 COVER-BELT - OLD CUB YELLOW (0498)

$71.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2945-0716

COVER-BELT LH - CUB YELLOW-99 (0716)

$71.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2945-4021

COVER-BELT LH - CUB YELLOW 2 (4021)

$71.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2945-0637

COVER-BELT LH - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 703-2945-0648

USE 703-2945-0637 COVER-BELT - TECH GRAY (0648)

$

$

Not available

$66.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 x .62 GR5

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-1260A

Screw, Hx Wsh Hd Tapp, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3178

Bolt, Carriage, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 711-0792

Pin, Hinge, .25 Dia x 6.75 Lg
(Superseded to 911-0792)

$4.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 703-1890

Wheel, Deck w/Fitting
(Superseded to 703-1890A)

$39.99

$

In Stock, Qty 20+

0

Cub Cadet 737-0280

Lube, Fitting

$7.99

$

In Stock, Qty 8

0

15

Cub Cadet 738-3056

Bolt, Shoulder, 1/2 x 2.5
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

16

Cub Cadet 711-3314

Pin, Roller, 1/2 Dia x 7.31 Lg
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

17

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18 GR5

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-3006

Nut, Hex, 1/4-20

$4.99

$

In Stock, Qty 19

0

20

Cub Cadet 712-3048

Nut, Hex Jam, 1/2-13 GR5

$4.99

$

In Stock, Qty 7

0

21

Cub Cadet 712-3083

Nut, Hex Insert Lock, 1/2-13

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 714-3004

Pin, Cotter, 3/32 x 1.25

$4.99

$

In Stock, Qty 8

0

23

Cub Cadet 715-3003

Pin, Spiral Spring, 3/16 x .75

$6.99

$

In Stock, Qty 9

0

24

Cub Cadet 726-0106

Cap, Speed Nut

$3.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 731-1032B

Deflector Assy
(Superseded to 631-05229)

Note: (Incl. Ref #5, 13, 24 & 28, 45)

$81.99

$

In Stock, Qty 6

0

26

Cub Cadet 731-3005

Roller

$28.99

$

In Stock, Qty 20+

0

27

Cub Cadet 732-0262

Spring, Extension, .88 OD x 6.12
(Superseded to 932-0262)

$

$

Not available

28

Cub Cadet 732-0602A

Spring, Torsion

$12.99

$

In Stock, Qty 5

0

29

Cub Cadet 732-3115

Spring, Extension, 1.25 OD x 8.15

$

$

Not available

30

Cub Cadet 732-3127

Spring, Compression
(Superseded to 932-3127)

$4.49

$

In Stock, Qty 6

0

31

Cub Cadet 734-0973

Wheel, Deck, 5 in. Dia

$12.99

$

In Stock, Qty 20+

0

32

Cub Cadet 736-0105

Washer, Bell, .401 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 736-0270

Washer, Bell, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 736-0272

Washer, Flat, .510 x 1.0 x .060

$4.99

$

In Stock, Qty 20+

0

35

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 5

0

36

Cub Cadet 738-0143

Bolt, Shoulder, .498 Dia x .340 Lg

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 738-0507B

Bolt, Shoulder, .50 Dia x .434 Lg

$4.49

$

In Stock, only 4 left!

0

38

Cub Cadet 738-0533

Bolt, Shoulder, .498 Dia x 1.64 Lg

$7.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 738-0572

Bolt, Shoulder, .375 Dia x 1.16 Lg

$7.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 747-3172B

Rod, Front Lift
(Superseded to 747-3172C)

$71.99

$

In Stock, only 3 left!

0

41

Cub Cadet 747-3188

Pin, Mower Support

$34.99

$

In Stock, only 3 left!

0

42

Cub Cadet 777S30145

Graphic, Danger
(Superseded to 977S30145)

$10.99

$

In Stock, only 1 left!

0

43

Cub Cadet 710-0599

Screw, Self Tapping, 1/4-20 x .5

Note: (Mfg Date I040 and After)

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 783-1146A

Skirt, Deck
(Superseded to 753-0884)

Note: (Mfg Date I040 and After)

Variations

Cub Cadet 783-1146A-0637

Deck Skirt Kit, 42" - POWDER BLACK (0637)

$82.99

$

In Stock, only 1 left!

0

$82.99

$

In Stock, only 1 left!

0

45

Cub Cadet 726-0233

Nut, Push, 1/4

$4.49

$

In Stock, only 3 left!

0
