2166 (13A-214G100) - Cub Cadet Garden Tractor Drive Line 27.87 Lg Parts Diagram

Garden Tractor

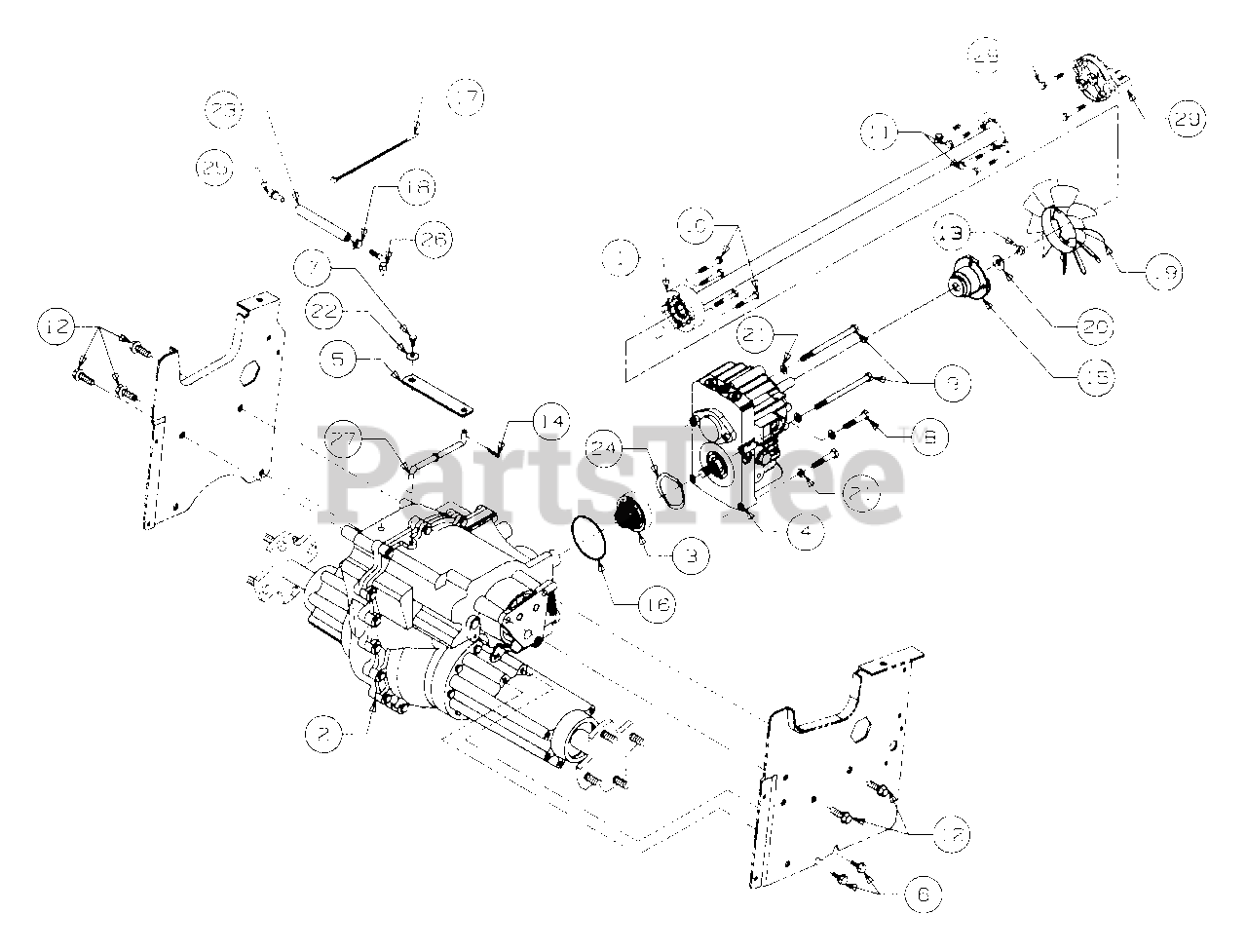

Drive Line 27.87 Lg Parts Diagram

  • Title

1

Cub Cadet 603-0191

Shaft Assembly, Drive, 27.87 Lg

$318.99

$

In Stock, only 2 left!

0

Cub Cadet 759-3764

Kit, Drive Barrel

$27.99

$

In Stock, Qty 20+

0

2

Cub Cadet 618-3231

Transmission Assembly, Hydro
(Superseded to 918-3231)

$

$

Not available

Cub Cadet 618-0579

Hub Assy, Wheel
(Superseded to 618P0579B)

Note: (Not Incl. w/#2)

$77.99

$

In Stock, only 3 left!

0

Cub Cadet 712-1329

Nut, Hex, 3/4-16

Note: (Not Incl. w/#2)

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 732-0152

Spring, Comp.

Note: (Not Incl. w/#2)

$4.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 618-3088

Pinion Assembly, Input

$189.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 618-3111

Pump, Hydrostatic
(Superseded to 918-3111)

$

$

Not available

5

Cub Cadet 703-2568

Arm, Hydro Dump

$

$

Not available

6

Cub Cadet 710-1260A

Screw, Hex Wsh Tap, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0642

Screw, Hex Wsh Tap, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3180

Screw, Hex Cap, 5/16-18 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3195

Screw, Hex Cap, 5/16-18 x 4.5 GR5

$7.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-1062

Screw, Hex Patch, 1/4-20 x 1.25 GR5

$6.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-3288

Screw, Hex Patch, 1/4-20 x 1.62 GR5

$6.99

$

In Stock, Qty 12

0

12

Cub Cadet 710-3290

Screw, Hex Wsh Tap, 3/8-16 x 1.25

$4.49

$

In Stock, only 1 left!

0

13

Cub Cadet 712-0262

Nut, Hex Center Lock Jam, 3/8-24

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 714-0104

Pin, Internal Cotter, 5/16 Dia x 1.12

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 748-3099

Adapter, Pump Tapered

$

$

Not available

16

Cub Cadet 721-0261

O-Ring, 2.75 x .103

$9.99

$

In Stock, only 1 left!

0

17

Cub Cadet 725-0157

Tie, Self-Clinch Cable

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 731-3297

Fan, 10 Blade Cooling

$37.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 736-0105

Washer, Bell, .380 x .88 x .063

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 736-0270

Washer, Bell, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 759-3330

Line, Fuel, 7in

Note: (10ft Bulk)

$63.99

$

In Stock, only 2 left!

0

24

Cub Cadet 736-3099

Washer, Wave, 1.96 x 2.44 x .06
(Superseded to 936-3099)

$

$

Not available

25

Cub Cadet 737-0296

Vent

$12.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 737-0299

Fitting, Elbow

$

$

Not available

27

Cub Cadet 747-3228

Rod, Hydro Disengagement

$

$

Not available

28

Cub Cadet KH-24-086-16

Bolt
(Superseded to KH-24-086-17-S)

$2.49

$

In Stock, Qty 7

0

29

Cub Cadet 719-3096

Engine/Driveshaft Coupler
(Superseded to KH-24-029-12-S)

$33.99

$

In Stock, only 1 left!

0
