2166 (13A-214G100) - Cub Cadet Garden Tractor Cylinder Head, Valves And Breather Parts Diagram

Garden Tractor

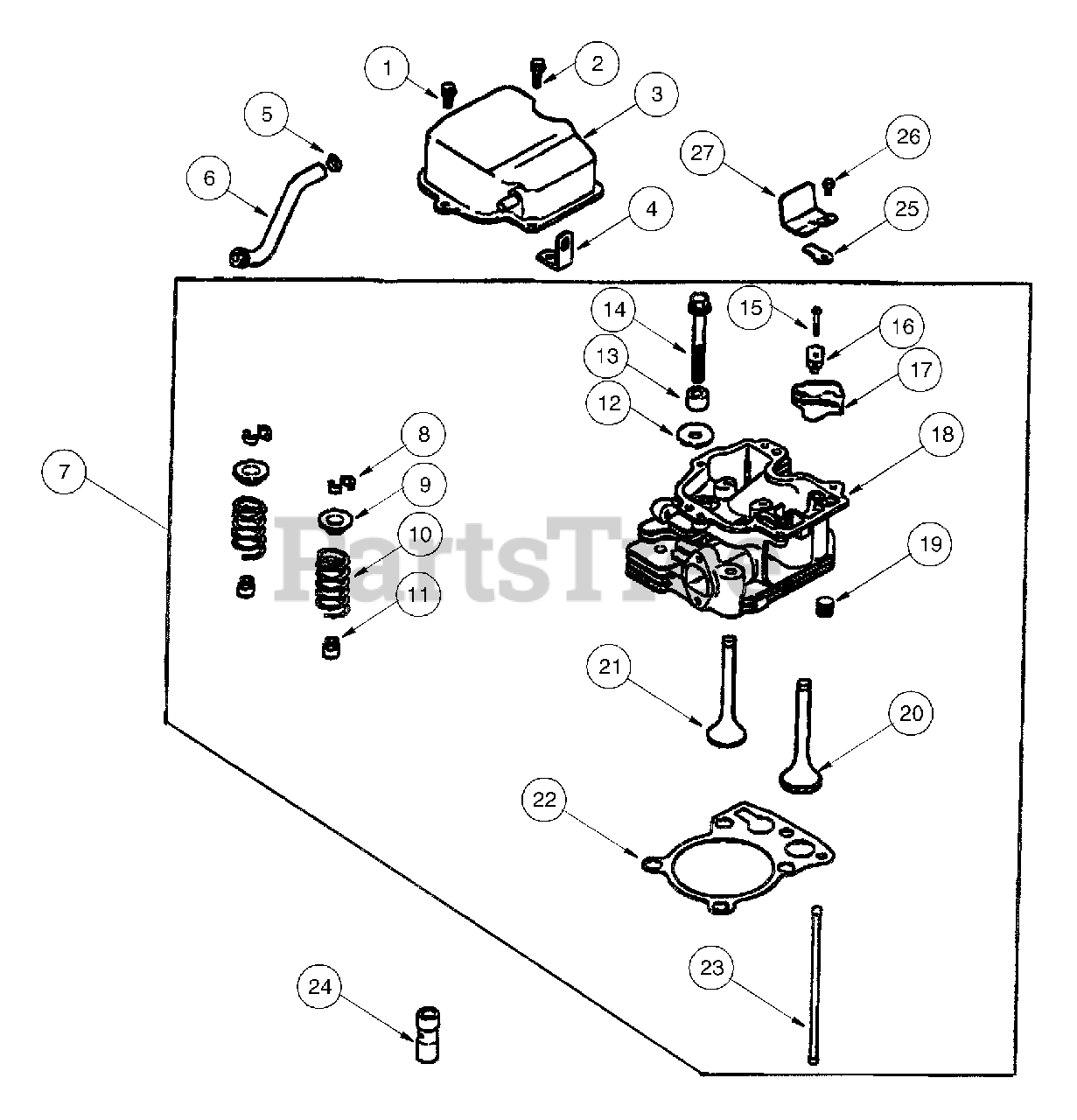

Cylinder Head, Valves And Breather Parts Diagram

  • Title

1

Cub Cadet KH-M-0645020

Screw, Hex Flange, M6 x 1 x 20
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

2

Cub Cadet KH-M-0645025

Screw, Hex Flange, M6 x 1 x 25
(Superseded to KH-M-645025-S)

$2.49

$

In Stock, only 3 left!

0

3

Cub Cadet KH-12-096-07

Cover, Valve w/Nipple
(Superseded to KH-12-755-102-S)

$86.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-12-445-05

Strap, Lifting
(Superseded to KH-25-445-02-S)

$2.99

$

In Stock, only 1 left!

0

5

Cub Cadet KH-X-426-9

Clamp, Hose
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 2 left!

0

6

Cub Cadet KH-12-326-09

Hose, Breather
(Superseded to KH-12-326-25-S)

$12.99

$

In Stock, only 1 left!

0

7

Cub Cadet KH-12-755-81

Kit, Cyl Head,

Note: (Includes #8-23, KH-12-041-01, KH-12-041-02, and KH-12-041-03 Gaskets)

$

$

Not available

8

Cub Cadet KH-12-755-03

Kit, Retainer

$5.99

$

In Stock, only 2 left!

0

9

Cub Cadet KH-12-173-01

Cap, Valve Spring
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, Qty 5

0

10

Cub Cadet KH-12-089-01

Spring, Valve
(Superseded to KH-12-089-34-S)

$10.99

$

In Stock, only 2 left!

0

11

Cub Cadet KH-24-032-05

Seal, Valve Stem
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, only 2 left!

0

12

Cub Cadet KH-12-468-05

Washer, Plain, 13/32"

$

$

Not available

13

Cub Cadet KH-12-112-13

Spacer, Head Bolt Exhaust Port

$

$

Not available

14

Cub Cadet KH-12-086-15

Screw, Hex Flange, M10 x 1.5 x 81
(Superseded to KH-20-086-02-S)

$3.99

$

In Stock, Qty 17

0

15

Cub Cadet KH-M-0640034

Screw, Hex Flange, M6 x 1 x 34

$

$

Not available

16

Cub Cadet KH-12-599-03

Pivot, Rocker Arm

$

$

Not available

17

Cub Cadet KH-25-186-01

Arm, Rocker

$

$

Not available

18

Cub Cadet KH-12-318-19

Head, Cylinder

$

$

Not available

19

Cub Cadet KH-X-75-23

Plug, Allen Head, 1/8" Pipe
(Superseded to KH-25-139-60-S)

$3.49

$

In Stock, only 2 left!

0

20

Cub Cadet KH-12-017-01

Valve, Intake (Std.)

$

$

Not available

Cub Cadet KH-12-017-02

Valve, Intake (.25mm)

$

$

Not available

21

Cub Cadet KH-12-016-01

Valve, Exhaust (Std.)

$

$

Not available

Cub Cadet KH-12-016-02

Valve, Exhaust (.25mm)

$

$

Not available

22

Cub Cadet KH-12-041-10

Gasket, Cylinder Head

$

$

Not available

23

Cub Cadet KH-12-411-01

Rod, Push
(Superseded to KH-12-411-04-S)

$4.49

$

In Stock, only 1 left!

0

24

Cub Cadet KH-25-351-01

Lifter, Valve
(Superseded to KH-25-351-11-S)

$23.99

$

In Stock, only 4 left!

0

25

Cub Cadet KH-12-402-02

Reed, Breather

$

$

Not available

26

Cub Cadet KH-M-0545010

Screw, Hex Flange, M5 x .8 x 10

$

$

Not available

27

Cub Cadet KH-12-018-03

Retainer, Breather Reed

$

$

Not available

Cub Cadet KH-12-041-01

Gasket

$2.49

$

In Stock, Qty 14

0

Cub Cadet KH-12-041-02

Gasket

$2.99

$

In Stock, Qty 5

0

Cub Cadet KH-12-041-03

Gasket

$

$

Not available
