2165 (13A-268-100) - Cub Cadet Garden Tractor (SN: 326006 & Above) Engine Mounting And Muffler Parts Diagram

Garden Tractor

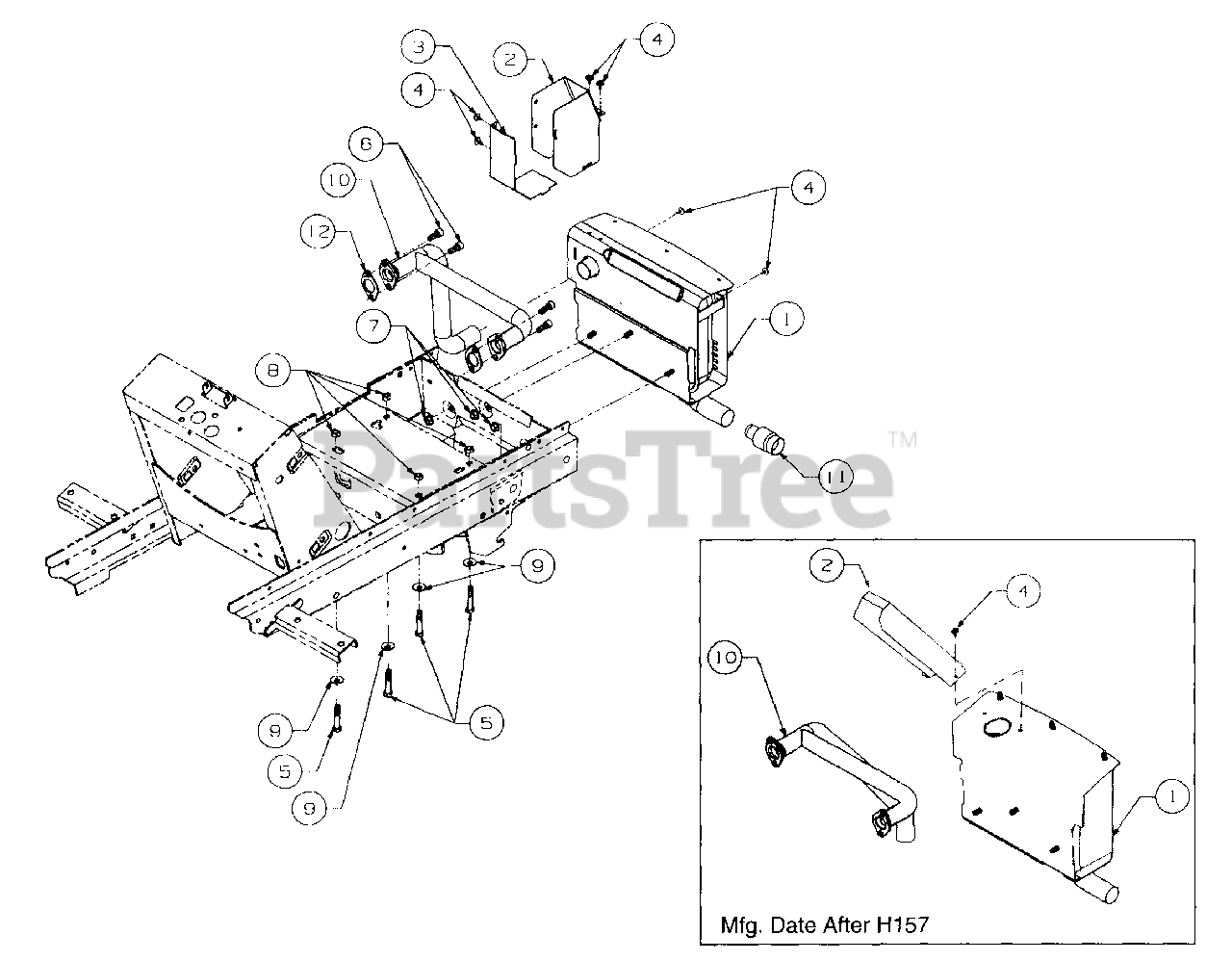

Engine Mounting And Muffler Parts Diagram

  • Title

1

Cub Cadet 951-3000A

Muffler Assy

Note: (Mfg Date Before H147)

$

$

Not available

Cub Cadet 651-3001

Muffler Assy
(Superseded to 951-3001P)

Note: (Mfg Date After H157; Replaces 951-3000A by Ordering P/N 751-0655 and 703-3099)

$437.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-2845

Shield, Exh.

Note: (Mfg Date Before H147)

$

$

Not available

Cub Cadet 703-3099

Shield, Exh.
(Superseded to 703-3099A)

Note: (Mfg Date After H157)

$33.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-2847

Shield, Rear Exh.

Note: (Mfg Date Before H147)

$

$

Currently unavailable

4

Cub Cadet 710-1268

Screw, Hex Wash Hd Tapp, #10-16 x .38

$4.49

$

In Stock, only 2 left!

0

5

Cub Cadet 710-3180

Bolt, Engine Mnting, 5/16-18 x 1.75 GR5

$5.49

$

In Stock, Qty 15

0

6

Cub Cadet 710-3292

Screw,Socket Hd Cap, M8-1.25 x 20mm

$6.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 736-0242

Washer, Bell, .345 x .88 x .060

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 751-3139

Tube, Exhaust

Note: (Mfg Date Before H147)

$

$

Currently unavailable

Cub Cadet 751-0655

Tube, Exhaust

Note: (Mfg Date After H157)

$169.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 759-3744

Arrestor, Spark
(Superseded to 951-0544)

$

$

Not available

12

Cub Cadet BS-805024

Gasket, Exhaust
(Superseded to BS-691613)

$5.49

$

Usually ships in 2-12 days

0
