2165 (136-268-100) - Cub Cadet Garden Tractor (SN: 326006 & Above) PTO Clutch Parts Diagram

Garden Tractor

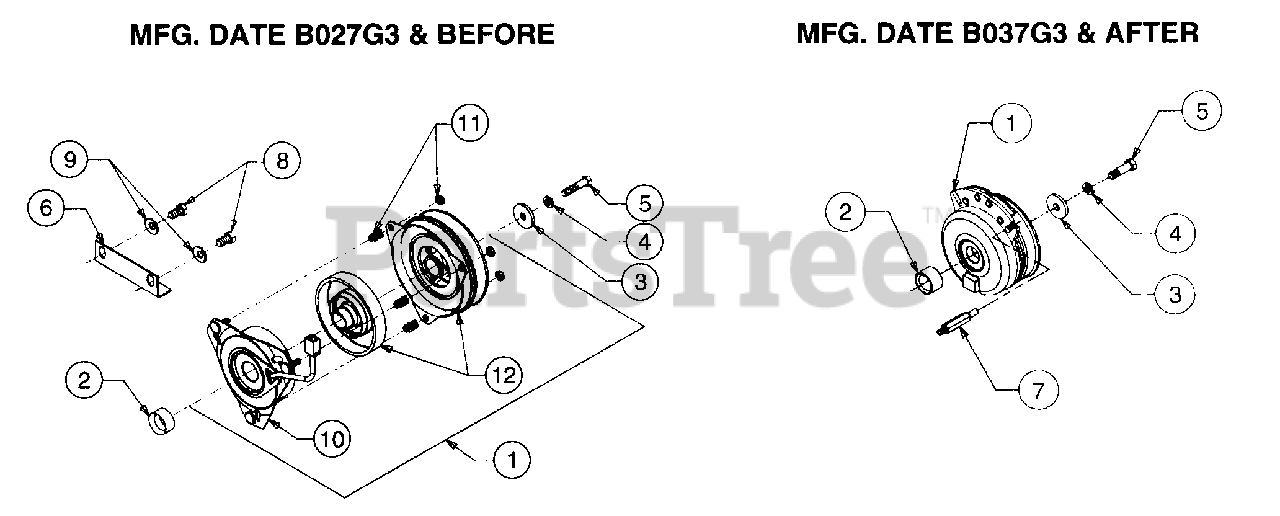

PTO Clutch Parts Diagram

  • Title

1

Cub Cadet 717-3389

Clutch Assy, PTO CVX Style - Mfg. Date B027G3 & Before
(Superseded to 917-3389)

Note: (Includes Ref No 10, 11 & 12)

$642.99

$

Usually ships in 3-6 days

0

Cub Cadet 717-3446

Clutch Assy, PTO CMS Style - Mfg. Date B037G3 & After
(Superseded to 917-3446)

$717.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 711-3179

Spacer
(Superseded to 911-3179)

$23.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 736-3082A

Washer, Flat, .45 x 1.5 x .172

$9.99

$

In Stock, Qty 16

0

4

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0539

Screw, Hex Cap, 3/8-24 x 1.75 GR5 Mfg. Date B027G3 & Before

$4.99

$

In Stock, Qty 12

0

Cub Cadet 710-1044

Screw, Hex Cap, 3/8-24 x 1.5 GR8 Mfg. Date B037G3 & After

$3.99

$

In Stock, only 2 left!

0

6

Cub Cadet 703-1986A

Bracket, Torque Mfg. Date B027G3 & Before
(Superseded to 703-1986A-0637)

Variations

Cub Cadet 703-1986A-0637

Torque Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

7

Cub Cadet 711-1197

Stud, Clutch Stop Mfg. Date B037G3 & After
(Superseded to 911-1197)

$

$

Not available

8

Cub Cadet 710-3030

Screw, Hex Cap Mfg. Date B027G3 & Before

$

$

Not available

9

Cub Cadet 736-0407

Washer, Bell, .45 x 1.0 x .062 Mfg. Date B027G3 & Before

$3.99

$

In Stock, Qty 12

0

10

Cub Cadet 759-3694

Field Assy - Mfg. Date B027G3 & Before
(Superseded to 959-3694)

$303.99

$

In Stock, only 1 left!

0

11

Cub Cadet 759-3697

Clutch Hardware (3 Hex Nuts; 3 Springs) Mfg. Date B027G3 & Before

$

$

Not available

12

Cub Cadet 759-3739

Kit, Armature and Rotor Mfg. Date B027G3 & Before
(Superseded to 959-3739)

$

$

Not available
