2165 (135-268-100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Blower Parts Diagram

Garden Tractor

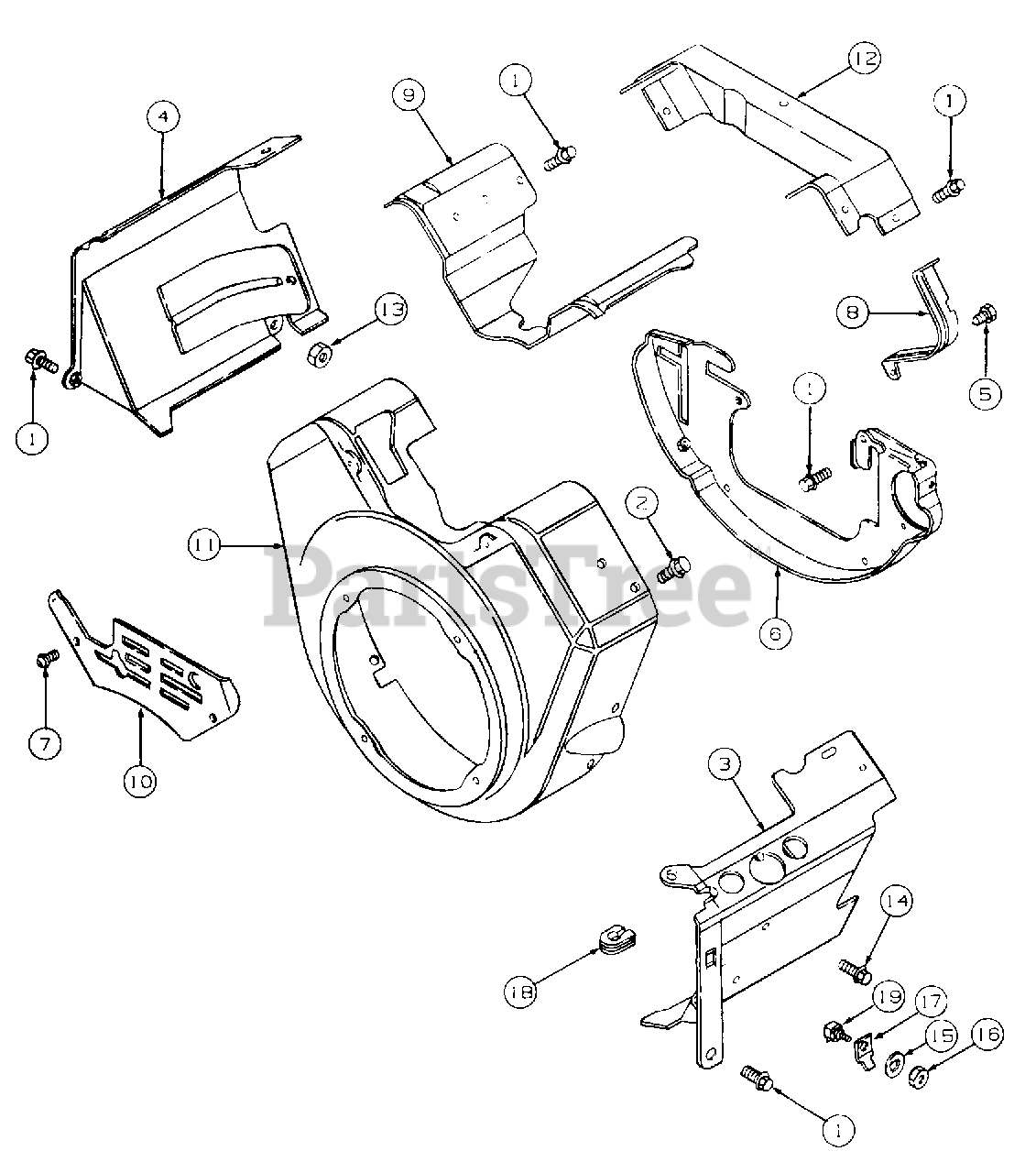

Blower Parts Diagram

  • Title

1

Cub Cadet BS-805406

Screw, Sems
(Superseded to BS-691982)

$3.99

$

In Stock, only 4 left!

0

2

Cub Cadet BS-805025

Screw, Sems

$

$

Not available

3

Cub Cadet BS-807870

Cover (Cylinder #1)

$

$

Not available

4

Cub Cadet BS-807871

Cover (Cylinder #2)

$

$

Not available

5

Cub Cadet BS-805260

Screw, Sems

$

$

Not available

6

Cub Cadet BS-807663

Plate, Back

$

$

Not available

7

Cub Cadet BS-805009

Screw, Sems
(Superseded to BS-690677)

$3.99

$

In Stock, only 2 left!

0

8

Cub Cadet BS-805505

Shield

$

$

Not available

9

Cub Cadet BS-805738

Cover

$

$

Not available

10

Cub Cadet BS-805636

Cover, Carburetor

$

$

Not available

11

Cub Cadet BS-807898

Housing, Blower

$

$

Not available

12

Cub Cadet BS-807661

Cover, Valley Extension
(Superseded to BS-841319)

$39.99

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-805383

Nut, Hex
(Superseded to 712-0689)

$

$

Not available

14

Cub Cadet BS-805448

Screw, Mtg
(Superseded to BS-692067)

$3.99

$

In Stock, Qty 9

0

15

Cub Cadet BS-92791

Washer, Lock, Internal Tooth
(Superseded to BS-691077)

$3.49

$

In Stock, only 2 left!

0

16

Cub Cadet 712-0142

Nut, Hex

$4.49

$

In Stock, Qty 10

0

17

Cub Cadet BS-93722

Terminal, Ground
(Superseded to BS-691084)

$6.49

$

In Stock, only 2 left!

0

18

Cub Cadet BS-805641

Grommet, Cable
(Superseded to BS-690744)

$7.49

$

Usually ships in 2-12 days

0

19

Cub Cadet BS-398525

Insulator Assy
(Superseded to BS-691972)

$8.49

$

In Stock, only 3 left!

0
