2165 (134-268-100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) PTO Clutch Parts Diagram

Garden Tractor

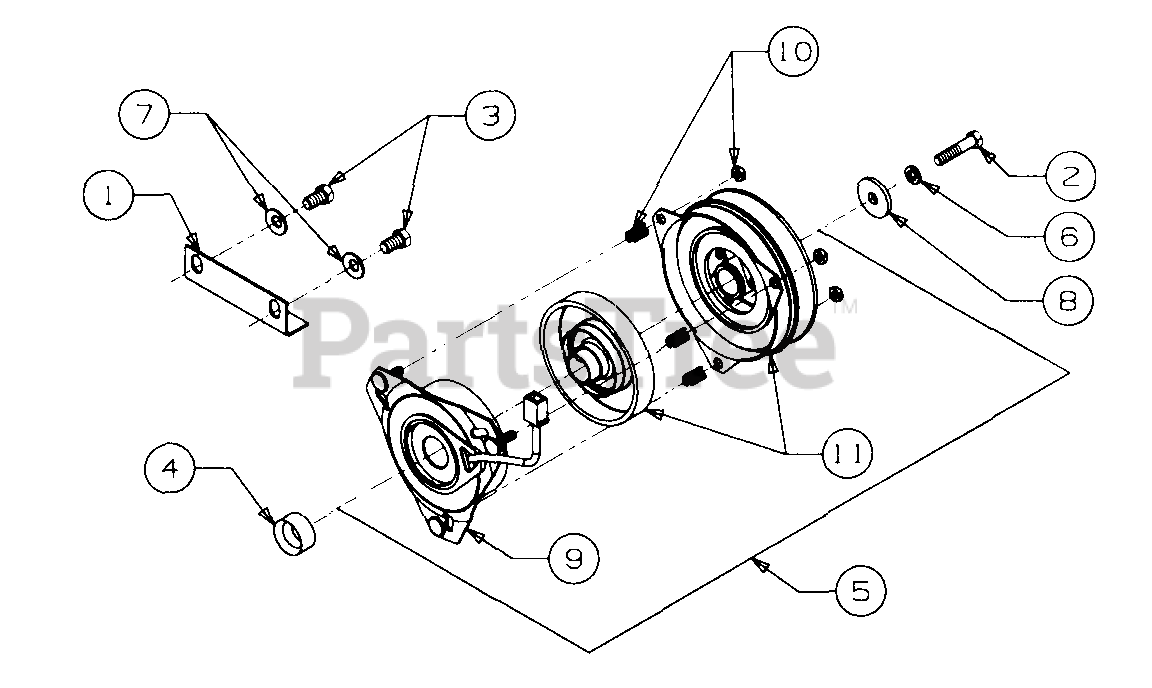

PTO Clutch Parts Diagram

  • Title

1

Cub Cadet 703-1986A

Bracket, Torque
(Superseded to 703-1986A-0637)

Variations

Cub Cadet 703-1986A-0637

Torque Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 710-0539

Screw, Hex Cap, 3/8-24 x 1.75 Lg GR5

$4.99

$

In Stock, Qty 12

0

3

Cub Cadet 710-3030

Screw, Hex Cap, 7/16-14 x .75 Lg GR5

$

$

Not available

4

Cub Cadet 711-3179

Spacer
(Superseded to 911-3179)

$23.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 717-3389

Clutch Assy, PTO
(Superseded to 917-3389)

Note: CVX Style; (Includes Ref No. 9, 10 & 11)

$642.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 736-0407

Washer, Bell, .45 x 1.0 x .062 Thk

$3.99

$

In Stock, Qty 12

0

8

Cub Cadet 736-3082

Washer, Flat, .445 x 1.5 x .1 72 Thk Hdn
(Superseded to 736-3082A)

$9.99

$

In Stock, Qty 16

0

9

Cub Cadet 759-3694

Field Assy
(Superseded to 959-3694)

$303.99

$

In Stock, only 1 left!

0

10

Cub Cadet 759-3697

Mounting Accessories

$

$

Not available

Hex Nuts

$

$

Not available

Springs

$

$

Not available

11

Cub Cadet 759-3739

Kit, Armature and Rotor
(Superseded to 959-3739)

$

$

Not available
