21647 - Toro Guardian Walk-Behind Mower (SN: 007000001 - 007999999) (1977) ENGINE ASSEMBLY MODEL NO. 21647 Parts Diagram

Guardian Walk-Behind Mower

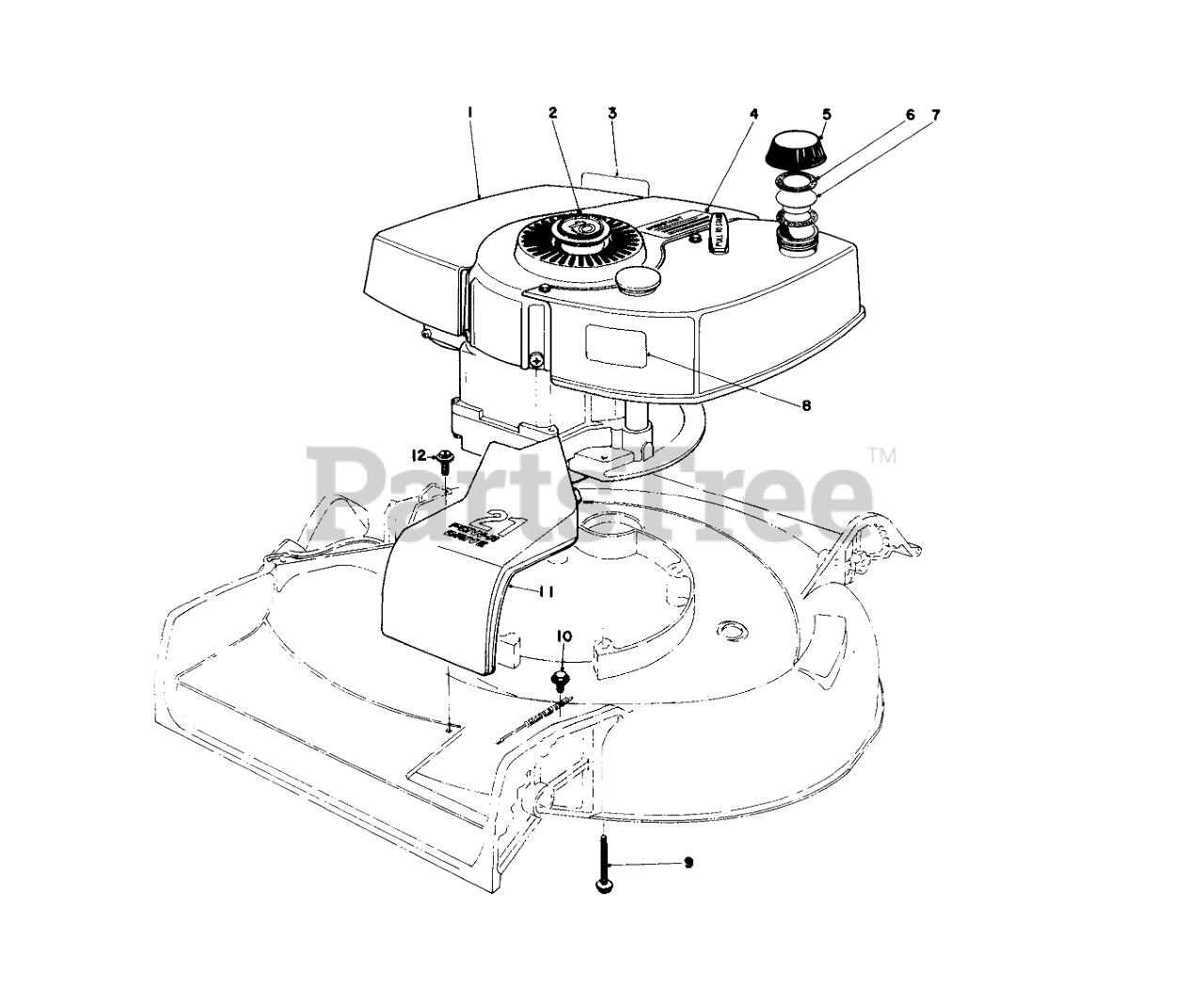

ENGINE ASSEMBLY MODEL NO. 21647 Parts Diagram

  • Title
1

Toro 221-527

Engine

$

$

Currently unavailable

2

Toro 21-4870

PLUG BUTTON

$

$

Not available

3

Toro 20-2710

Decal Maintenance

$

$

Not available

4

Toro 25-1050

Decal Lockout

$

$

Not available

5

Toro 27-7870

Gas Cap (Incl. Ref. #6 & 7)
(Superseded to 42-0682)

$

$

Not available

6

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

7

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

8

Toro 28-5410

Decal Engine

$

$

Currently unavailable

9

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$18.99

$

Usually ships in 3-6 days

0

10

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

11

Toro 20-2540

Cover Belt Drive
(Superseded to 28-4730)

$65.99

$

Usually ships in 3-6 days

0

12

Toro 12-5450

SCREW

$9.99

$

In Stock, only 2 left!

0
