2164 (13A-264G100) - Cub Cadet Garden Tractor Grille, Hood and Side Panels Parts Diagram

Garden Tractor

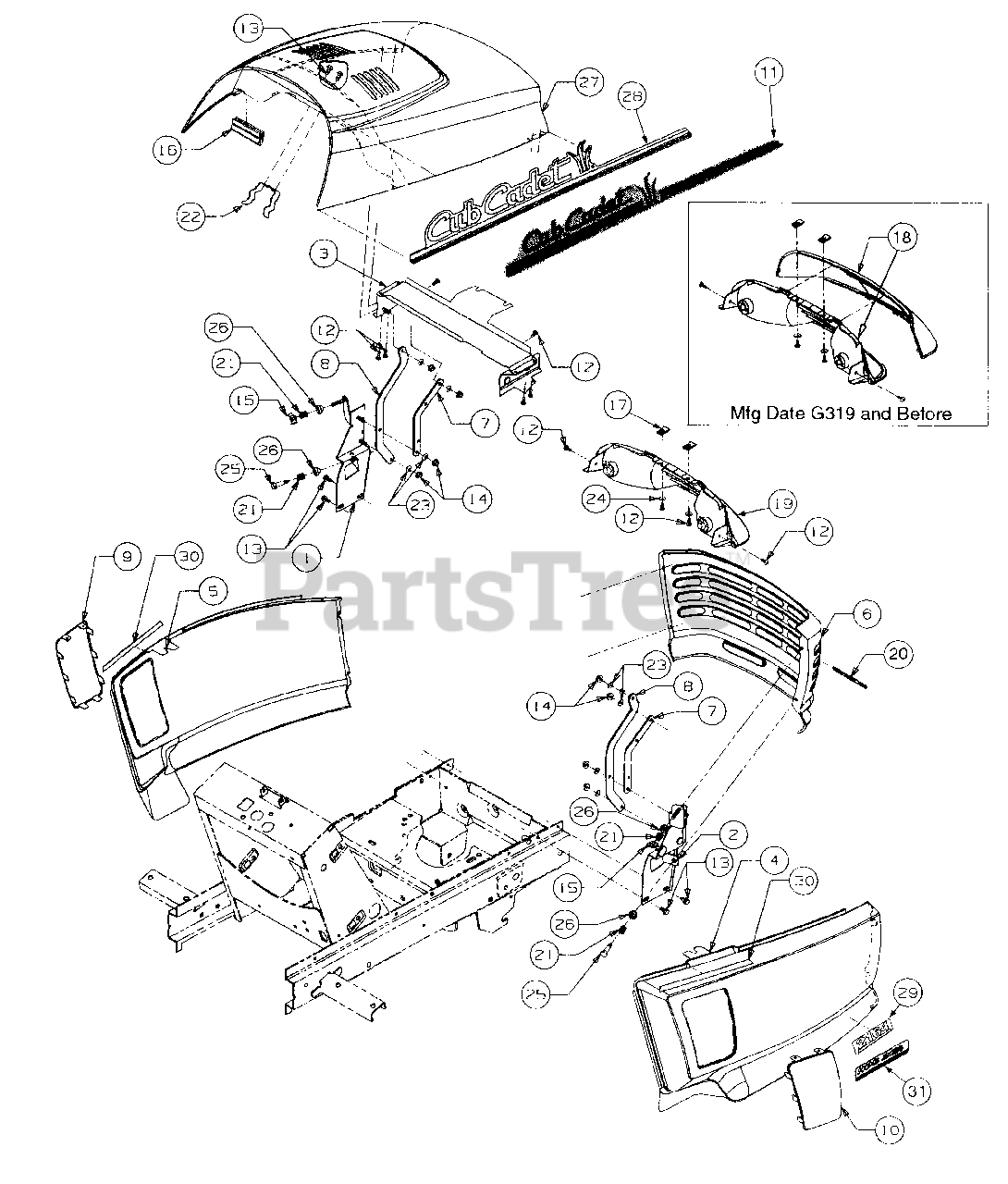

Grille, Hood and Side Panels Parts Diagram

  • Title

1

Cub Cadet 603-0211

Bracket, Grille LH

$

$

Not available

2

Cub Cadet 603-0212

Bracket, Grille RH
(Superseded to 603-0212A)

$

$

Not available

3

Cub Cadet 603-0583-0499

Bracket, Upper Hood
(Superseded to 603-04191-0499)

$

$

Not available

4

Cub Cadet 703-2396-0499

Panel, RH Side

$260.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-2397-0499

Panel, LH Side

$

$

Not available

6

Cub Cadet 703-2398-0499

Grille

$159.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-2465

Link, Short Hood

Variations

Cub Cadet 703-2465-0637

Hood Link - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-2466A

Link, Long Hood
(Superseded to 703-2466B)

$

$

Not available

9

Cub Cadet 703-2495-0499

Screen, LH Panel

$

$

Not available

10

Cub Cadet 703-2496-0499

Screen, RH Panel

$

$

Not available

11

Cub Cadet 777D02198

Graphic, Hood w/MTD Logo RH

Note: (Mfg Date F249 and Before)

$37.99

$

Usually ships in 3-6 days

0

Cub Cadet 777D02199

Graphic, Hood w/MTD Logo LH

Note: (Mfg Date F249 and Before)

$

$

Not available

12

Cub Cadet 710-0351

Screw, Truss Mach Tapp, #10 x .50

$4.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-0599

Screw, Hex Wash Hd Tapp, 1/4 x .50

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

15

Cub Cadet 712-3087

Nut, Wing, 1/4-20

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 723-3059

Seal, Heat Baffle

$21.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 726-0139

Nut, U-Type Speed, #10

$6.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 725-3257A

Headlight Assy
(Superseded to 759-3947)

Note: (Lens Glued to Reflector); (Mfg Date G319 and Before)

$179.99

$

In Stock, only 3 left!

0

Cub Cadet 759-3693

Bulb Assembly Only, Headlamp
(Superseded to 925-3161A)

$52.99

$

In Stock, only 2 left!

0

Cub Cadet 731-3138A

Lens, Cub Cadet
(Superseded to 759-3947)

$179.99

$

In Stock, only 3 left!

0

19

Cub Cadet 625-0053

Headlight Assy
(Superseded to 925-04001A)

Note: (Includes Lamp and Socket); (Mfg Date F019 and After)

$158.99

$

In Stock, Qty 9

0

Cub Cadet 725-0963

Lamp, 12V
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

Cub Cadet 725-1649

Socket, Lamp
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

20

Cub Cadet 777I20314

Graphic, Warning HOT

$

$

Not available

21

Cub Cadet 732-0334

Spring, Compression, .50 OD x .50 Lg

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 732-0855A

Spring, Hood Latch

$

$

Not available

23

Cub Cadet 736-0175

Washer, Spring, .265 x .562 x .025
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

24

Cub Cadet 736-0400

Washer, Flat, .218 x .62 x .063

$5.49

$

In Stock, Qty 12

0

25

Cub Cadet 738-3141

Bolt, Shoulder, .31 Dia x .75 Lg

$5.49

$

In Stock, Qty 20+

0

26

Cub Cadet 748-3055

Bushing, Tapered
(Superseded to 948-3055)

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet 759-3747-0499

Hood, Series 2000
(Superseded to 759-3747B)

$

$

Not available

28

Cub Cadet 777D03263

Graphic, Hood RH

Note: (Mfg Date F259 and After)

$42.99

$

Usually ships in 3-6 days

0

Cub Cadet 777D03264

Graphic, Hood LH

Note: (Mfg Date F259 and After)

$

$

Not available

29

Cub Cadet 777D03291

Graphic, 2164

Note: (Mfg Date F259 and After)

$

$

Not available

30

Cub Cadet 777X40079

Strip, Protective

$

$

Not available

31

Cub Cadet 777D02392

Graphic, HGS 2164

Note: (Mfg F249 and Before)

$

$

Not available
