2164 (13A-264G100) - Cub Cadet Garden Tractor Frame and Drawbar Parts Diagram

Garden Tractor

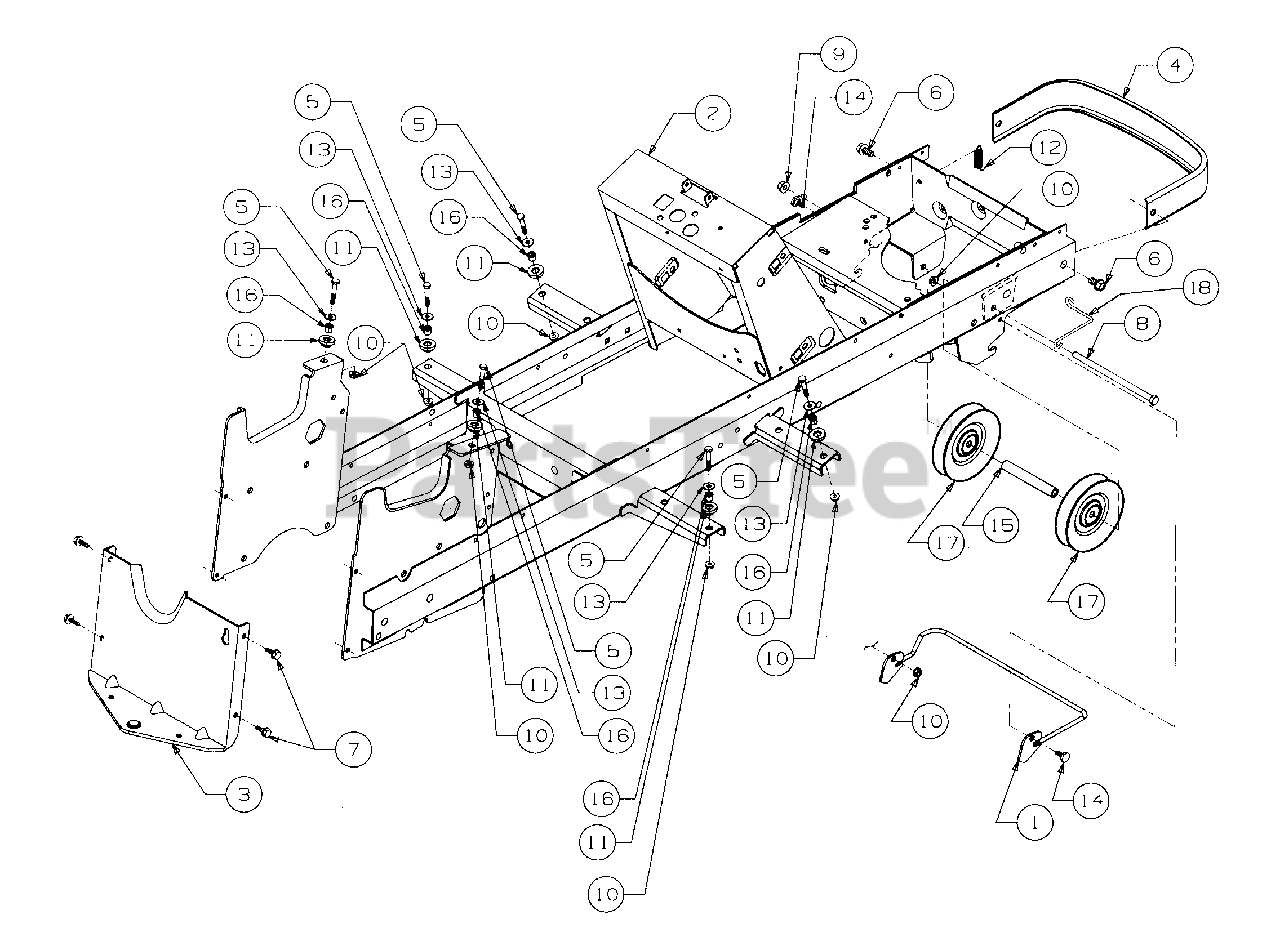

Frame and Drawbar Parts Diagram

  • Title
1

Cub Cadet 603-0132-0498

Rod, Attach
(Superseded to 603-04250-0637)

$71.99

$

In Stock, only 1 left!

0

Cub Cadet 603-0132-0716

Rod Attach
(Superseded to 603-04250-0637)

$71.99

$

In Stock, only 1 left!

0

2

Cub Cadet 603-0328A-0498

Frame
(Superseded to 603-0328C-0716)

$

$

Not available

Cub Cadet 603-0328A-0716

Frame
(Superseded to 603-0328C-0716)

$

$

Not available

3

Cub Cadet 703-2257-0498

Drawbar
(Superseded to 703-2257-0716)

$155.99

$

Usually ships in 3-6 days

0

$155.99

$

Usually ships in 3-6 days

0

Cub Cadet 777I20296

Graphic, Trans Release Lever

$

$

Not available

4

Cub Cadet 703-2577-0498

Bumper
(Superseded to 703-05626-0716)

$

$

Not available

Cub Cadet 703-2577-0716

Bumper
(Superseded to 703-05626-0716)

$

$

Not available

5

Cub Cadet 710-0597

Screw, Hex Cap, 1/4-20 x 1.0

$3.99

$

In Stock, Qty 14

0

6

Cub Cadet 710-0623

Screw, Hex Wsh Hd Tap 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-1260A

Screw, Hex Wsh Hd Tap 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3261

Screw, Hex Cap, 3/8-16 x 7.0

$13.99

$

In Stock, only 2 left!

0

9

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

11

Cub Cadet 722-0258

Grommet, Insulator
(Superseded to 922-0258)

$

$

Not available

12

Cub Cadet 732-3002

Spring, Latch
(Superseded to 932-3002)

$9.49

$

In Stock, only 4 left!

0

13

Cub Cadet 736-3090

Washer, Flat, .255 x .72 x .60

$6.99

$

In Stock, Qty 11

0

14

Cub Cadet 738-0255

Bolt, Shoulder
(Superseded to 938-0255)

$5.49

$

In Stock, Qty 8

0

15

Cub Cadet 750-3114A

Spacer, Idler, .407 x .62 x 4.38

$19.99

$

In Stock, only 1 left!

0

16

Cub Cadet 750-3169

Spacer, .28 x .40 x .42 Lg
(Superseded to 950-3169)

$10.99

$

In Stock, Qty 6

0

17

Cub Cadet 756-3045

Pulley, Idler
(Superseded to 956-3045A)

$57.99

$

In Stock, Qty 5

0

18

Cub Cadet 732-0970

Belt Guide
(Superseded to 932-0970)

Note: (Mfg Date H018 & After)

$11.99

$

Usually ships in 3-6 days

0
