2164 (13A-264G100) - Cub Cadet Garden Tractor Electric Starting Motor Retaining Ring Type Starter Drive Parts Diagram

Garden Tractor

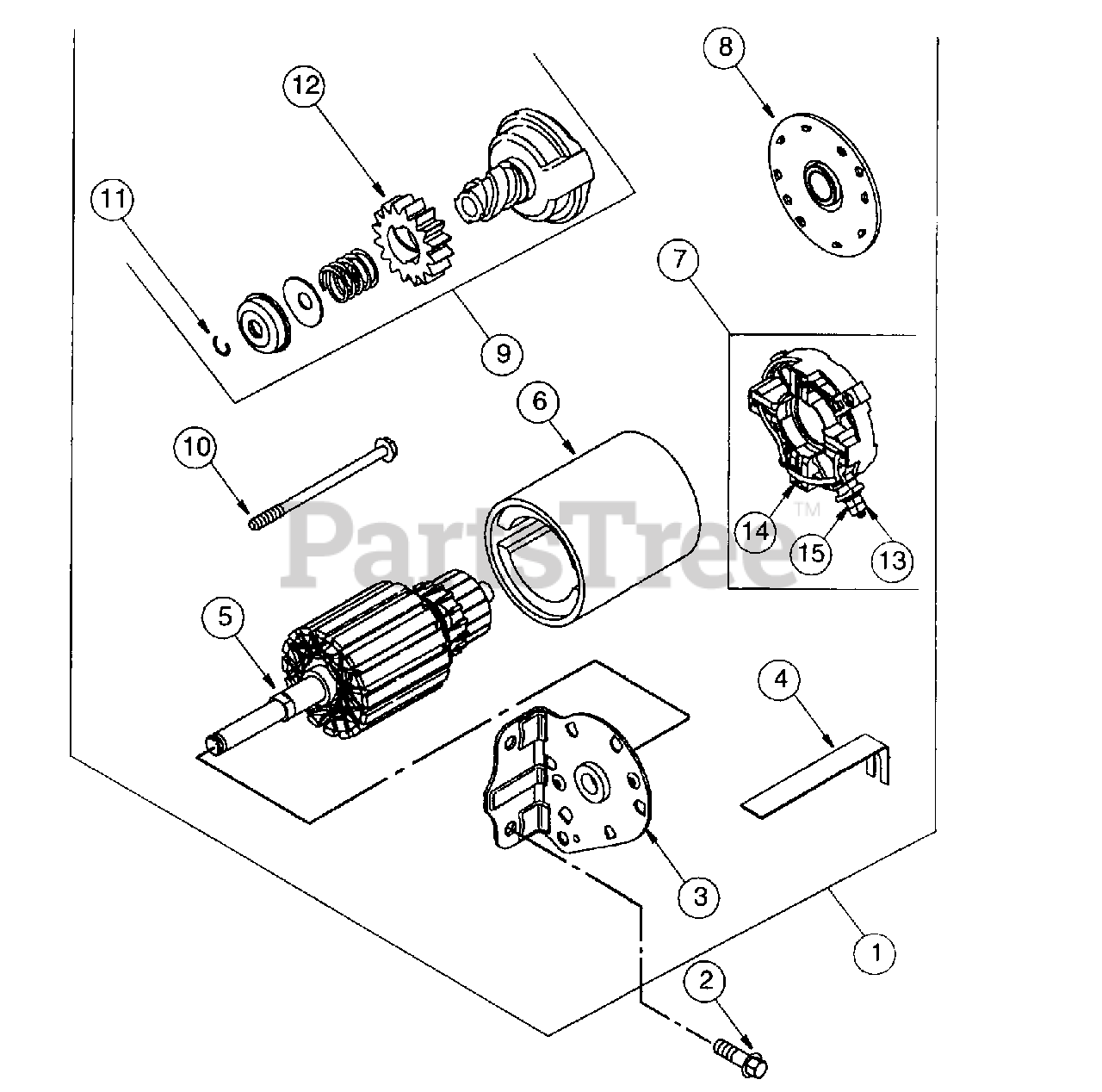

Electric Starting Motor Retaining Ring Type Starter Drive Parts Diagram

  • Title
1

Cub Cadet BS-499521

Starter Motor Assembly
(Superseded to BS-795121)

$143.99

$

In Stock, Qty 20+

0

2

Cub Cadet BS-805247

Screw, Hex

$

$

Not available

3

Cub Cadet BS-497626

Drive End Cap Assembly
(Superseded to BS-691283)

$83.99

$

Usually ships in 2-12 days

0

4

Cub Cadet BS-806000

Strap, Starter
(Superseded to BS-691532)

$6.49

$

Usually ships in 2-12 days

0

5

Armature Assembly

Note: (Order Starter Motor Assembly)

$

$

Not available

6

Housing Assembly

Note: (Order Starter Motor Assembly)

$

$

Not available

7

Cub Cadet BS-497605

Retainer, Brush
(Superseded to BS-691293)

$29.99

$

In Stock, Qty 6

0

8

Cub Cadet BS-497607

End Cap Assembly, Commutator

$

$

Not available

9

Cub Cadet BS-497606

Starter Drive Group
(Superseded to BS-696541)

$

$

Not available

10

Cub Cadet BS-95035

Screw, Hex

$

$

Not available

11

Cub Cadet BS-263080

Ring, Retaining
(Superseded to BS-691265)

$5.49

$

In Stock, Qty 7

0

12

Cub Cadet BS-280104

Gear, Starter
(Superseded to BS-695708)

$6.99

$

In Stock, only 3 left!

0

13

Cub Cadet BS-92278

Nut, Hex
(Superseded to 912-0121)

$4.49

$

In Stock, Qty 20+

0

14

$27.99

$

In Stock, only 3 left!

0

15

Cub Cadet BS-225137

Washer, Flat

$

$

Not available
