21623 T - Toro 21" 60V Walk-Behind Mower (SN: 400000000 - 999999999) Handle Assembly Parts Diagram

21" 60V Walk-Behind Mower

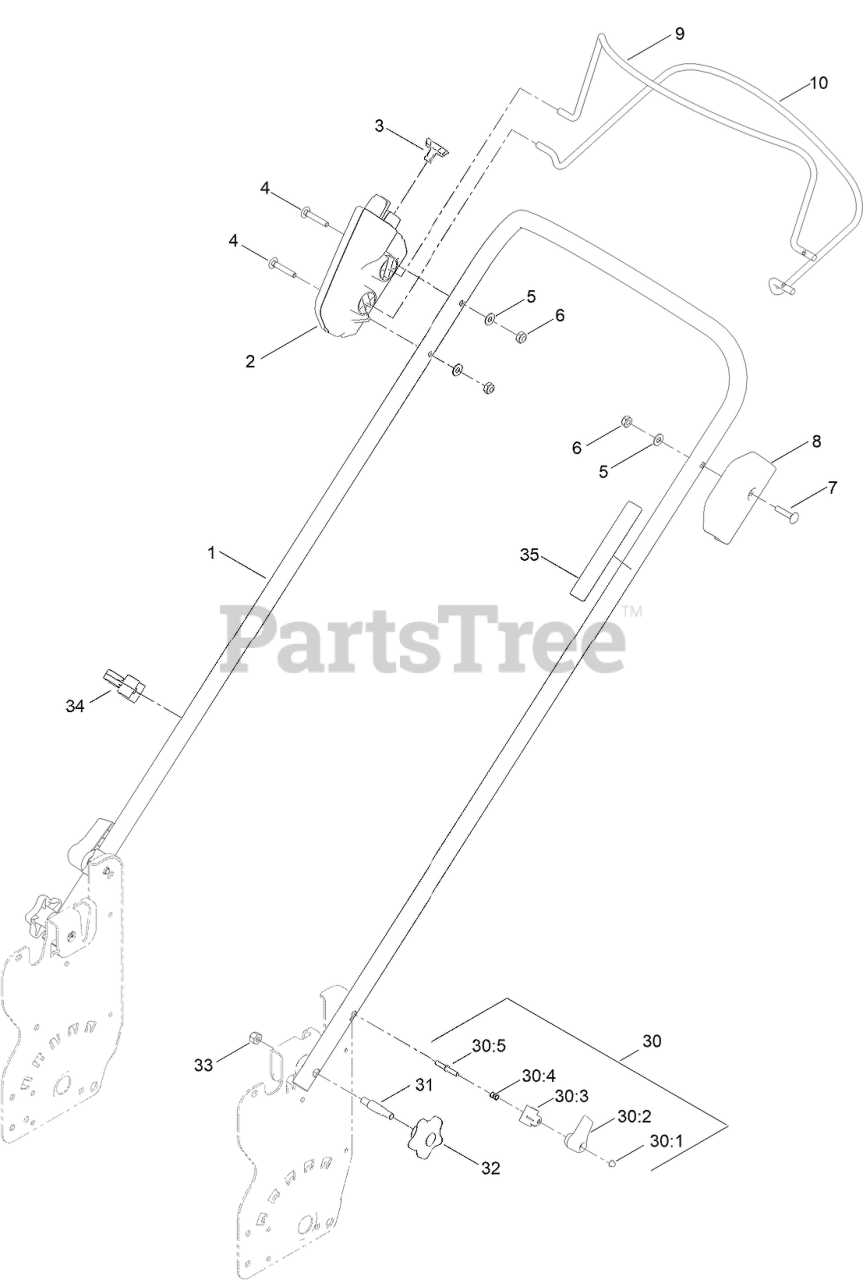

Handle Assembly Parts Diagram

  • Title
1

Toro 144-6534-05

HANDLE-MOWER, ELECTRIC

$62.99

$

Usually ships in 3-6 days

0

2

Toro 145-5641

ASM-CONTROL, 2 BAIL

$80.99

$

Usually ships in 0 days

0

3

Toro 145-5624

KEY-BAIL

$1.99

$

In Stock, Qty 20+

0

4

Toro 108-0988

SCREW-CARR

$0.99

$

In Stock, only 3 left!

0

5

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 139-1724

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

7

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

8

Toro 147-4212

BASE-PIVOT

$5.49

$

Usually ships in 0 days

0

9

Toro 147-4205-03

BAIL-BLADE

$13.99

$

Usually ships in 0 days

0

10

Toro 147-4204-03

BAIL-TRACTION

$13.99

$

Usually ships in 3-6 days

0

30

Toro 138-3249

QUICK RELEASE ASM

$11.99

$

In Stock, only 1 left!

0

30:1

Toro 140-4157

NUT-PUSH

$1.99

$

Usually ships in 3-6 days

0

30:2

Toro 138-3248

LEVER-RELEASE
(Superseded to 138-3249)

$11.99

$

In Stock, only 1 left!

0

30:3

Toro 138-3253

ANCHOR-SPRING
(Superseded to 138-3249)

$11.99

$

In Stock, only 1 left!

0

30:4

Toro 115-2858

SPRING-COMPRESSION

$3.49

$

In Stock, only 2 left!

0

30:5

Toro 140-4158

ROD-RELEASE

$1.49

$

Usually ships in 3-6 days

0

31

Toro 139-6588

BOLT-SHOULDER, HANDLE

$1.99

$

In Stock, only 3 left!

0

32

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 11

0

33

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 20+

0

35

Toro 144-3175

DECAL-CONTROLS (60V START)

$6.99

$

Usually ships in 3-6 days

0
