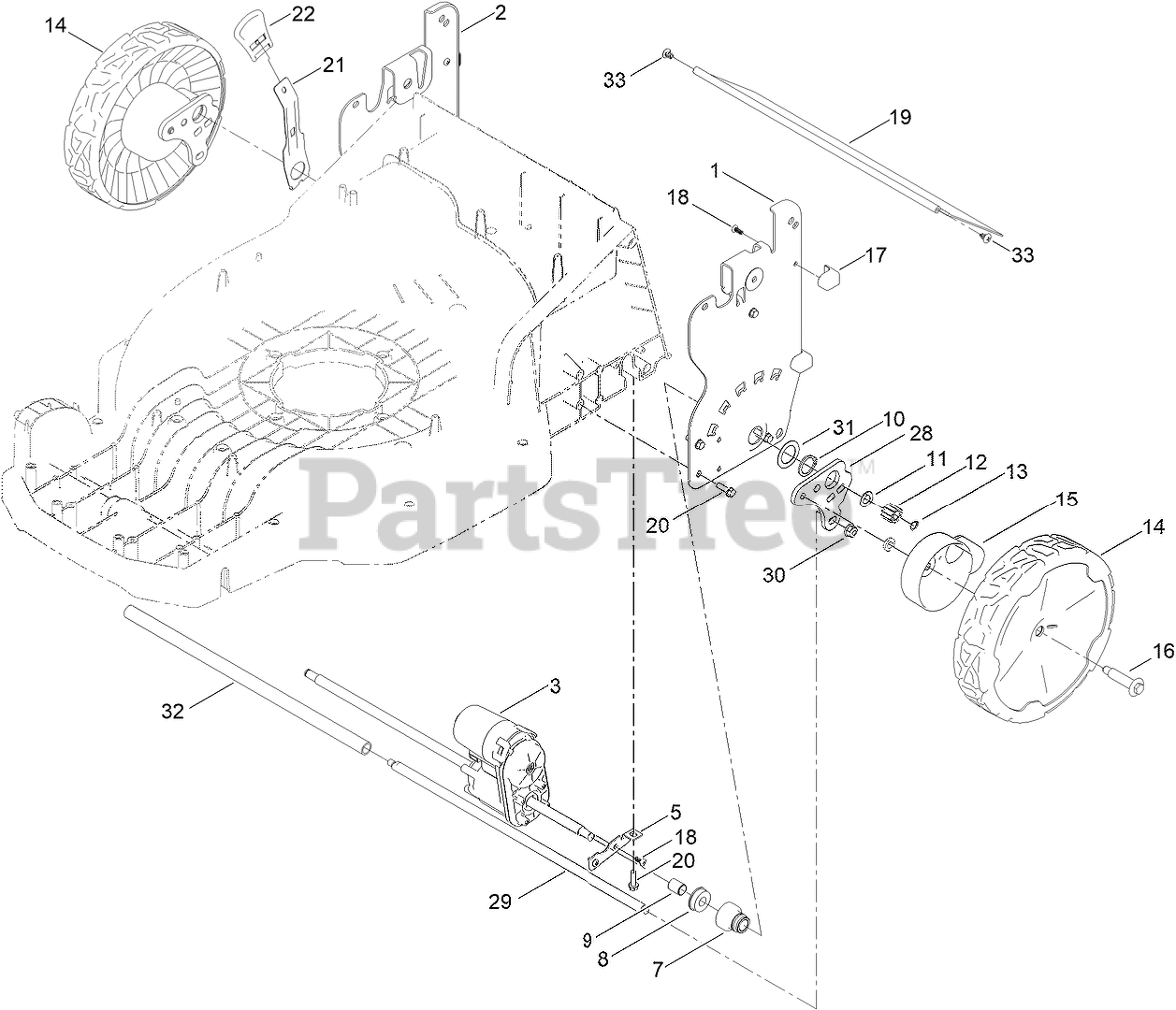

21621 - Toro 21" 60V Walk-Behind Mower (SN: 400000000 - 999999999) Rear Wheel and Height-of-Cut Assembly Parts Diagram

21" 60V Walk-Behind Mower

Rear Wheel and Height-of-Cut Assembly Parts Diagram

  • Title

1

Toro 144-6542-05

PLATE-HOC, LH

$28.99

$

Usually ships in 0 days

0

2

Toro 144-6541-05

PLATE-HOC, RH

$28.99

$

Usually ships in 0 days

0

3

Toro 144-6478

TRANSMISSION-ELECTRIC, ME312

$117.99

$

Usually ships in 0 days

0

5

Toro 144-6497

BRKT-TRANSMISSION

$10.99

$

Usually ships in 0 days

0

7

Toro 131-0836

RETAINER-BEARING, HOC

$14.99

$

In Stock, only 2 left!

0

8

Toro 104-8699

BEARING-BALL

$4.99

$

In Stock, Qty 17

0

9

Toro 108-9782

BUSHING-SLEEVE

$5.49

$

In Stock, Qty 7

0

10

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, only 4 left!

0

11

Toro 110-7191

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

12

Toro 144-6428

GEAR-PINION, 11T

$2.99

$

Usually ships in 0 days

0

13

Toro 144-6480

RING-RETAINING, EXTERNAL

$1.49

$

Usually ships in 0 days

0

14

Toro 145-5646

ASM-9.65" WHEEL, GEARED

$35.99

$

Usually ships in 0 days

0

15

Toro 144-6466

ASM-COVER, GEAR

$4.49

$

Usually ships in 0 days

0

16

Toro 145-3899

WHEEL BOLT

$1.99

$

In Stock, Qty 5

0

17

Toro 140-2369

PAD-SMART STOW

$1.49

$

Usually ships in 3-6 days

0

18

Toro 107-7461

SCREW-PLASTITE

$1.49

$

In Stock, Qty 8

0

19

Toro 144-6543

SHIELD-TRAILING

$14.99

$

Usually ships in 3-6 days

0

20

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

21

Toro 144-6530

ARM-SPRING

$7.99

$

Usually ships in 0 days

0

22

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

28

Toro 145-5678

BRKT-PIVOT, REAR

$12.99

$

Usually ships in 3-6 days

0

29

Toro 144-6513

ROD-CONNECTING, REAR

$25.99

$

Usually ships in 0 days

0

30

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

31

Toro 3256-42

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

32

Toro 145-5679

ROLLER-STRIPER

$4.49

$

Usually ships in 0 days

0

33

Toro 139-1692

SCREW-THD

$0.99

$

Usually ships in 3-6 days

0
