21611 - Toro 21" 60V Walk-Behind Mower (SN: 400000000 - 999999999) Rear Wheel and Height-of-Cut Assembly Parts Diagram

21" 60V Walk-Behind Mower

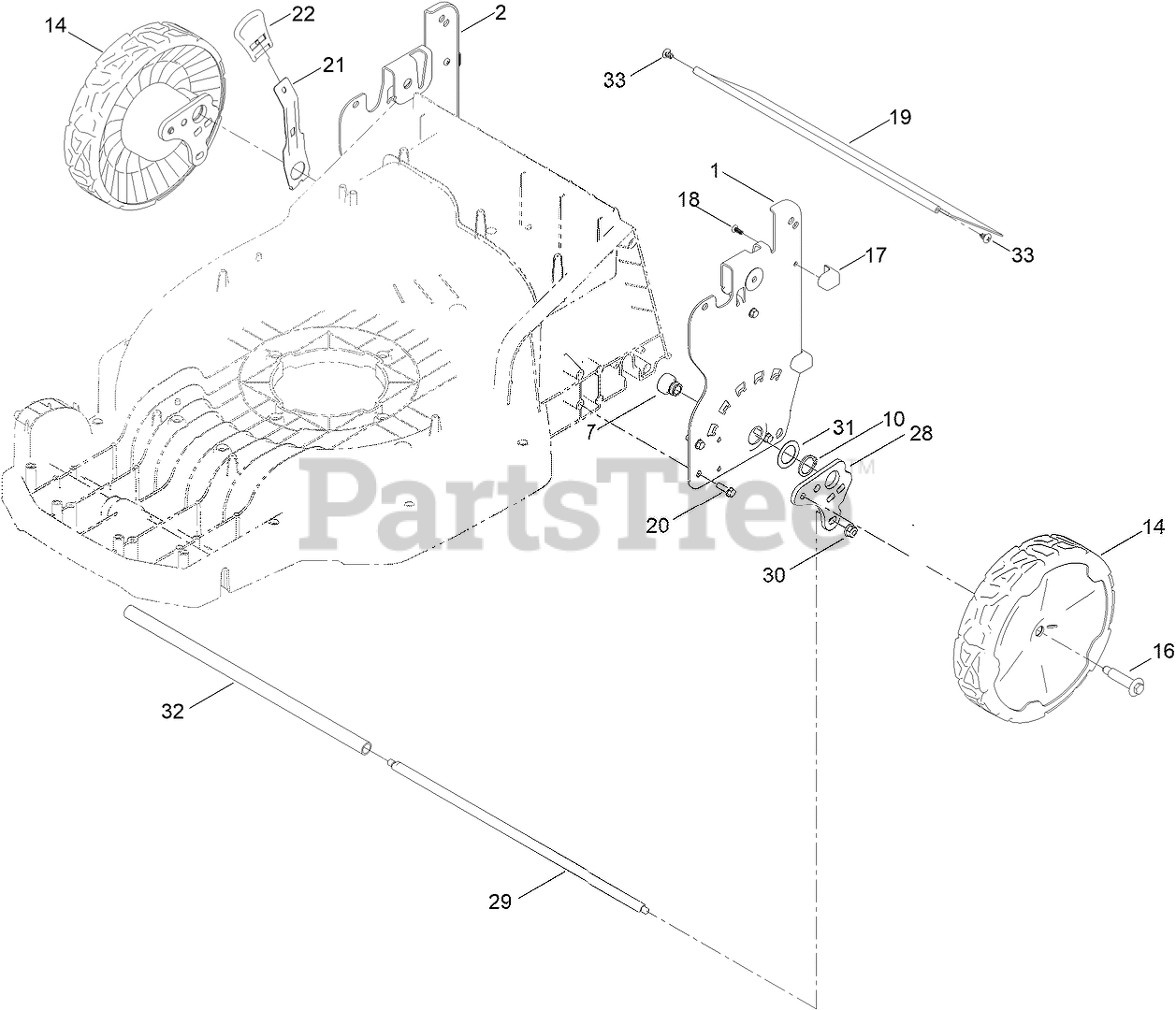

Rear Wheel and Height-of-Cut Assembly Parts Diagram

  • Title

1

Toro 144-6542-05

PLATE-HOC, LH

$28.99

$

Usually ships in 0 days

0

2

Toro 144-6541-05

PLATE-HOC, RH

$28.99

$

Usually ships in 0 days

0

7

Toro 131-0836

RETAINER-BEARING, HOC

$14.99

$

In Stock, Qty 9

0

10

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, Qty 10

0

14

Toro 140-2351

ASM-9.65" WHEEL, BUSHINGS

$31.99

$

In Stock, only 4 left!

0

16

Toro 145-3899

WHEEL BOLT

$1.99

$

Usually ships in 3-6 days

0

17

Toro 140-2369

PAD-SMART STOW

$1.49

$

Usually ships in 3-6 days

0

18

Toro 107-7461

SCREW-PLASTITE

$1.49

$

In Stock, Qty 9

0

19

Toro 144-6543

SHIELD-TRAILING

$14.99

$

Usually ships in 3-6 days

0

20

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

21

Toro 144-6530

ARM-SPRING

$7.99

$

Usually ships in 0 days

0

22

Toro 110-0549

KNOB-HOC

$1.49

$

In Stock, Qty 20+

0

28

Toro 145-5678

BRKT-PIVOT, REAR

$12.99

$

Usually ships in 3-6 days

0

29

Toro 144-6513

ROD-CONNECTING, REAR

$25.99

$

Usually ships in 0 days

0

30

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 19

0

31

Toro 3256-42

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

32

Toro 145-5679

ROLLER-STRIPER

$4.49

$

Usually ships in 0 days

0

33

Toro 139-1692

SCREW-THD

$0.99

$

Usually ships in 3-6 days

0
