2160 (13A-266-100) - Cub Cadet Garden Tractor (SN: 326006 - 389000) Engine Mounting And Muffler Parts Diagram

Garden Tractor

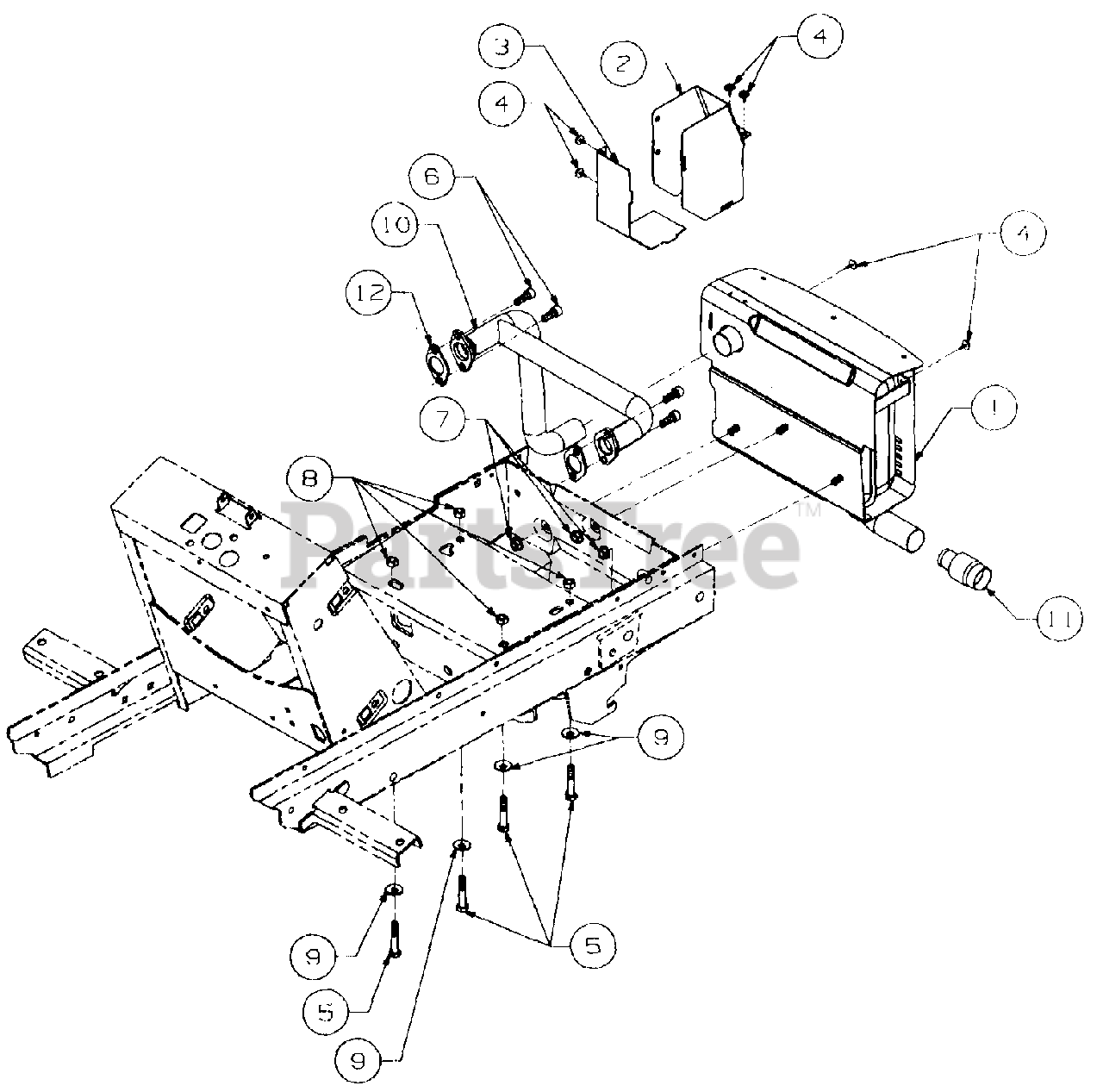

Engine Mounting And Muffler Parts Diagram

  • Title

1

Cub Cadet 951-3001

Muffler Assembly
(Superseded to 951-3001P)

Note: (Refer to Service Advisory SBCC-394 Muffler & Exhaust Pipe)

$437.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-2845

Shield, Exhaust Tube Heat

$

$

Not available

3

Cub Cadet 703-2847

Shield, Exhaust Tube Rear

$

$

Currently unavailable

4

Cub Cadet 710-1268

Screw, Hex Wash Hd Tapp #10-16 x .38

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-3180

Bolt, Engine Mounting, 5/16-18 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3292

Screw, Socket Hd Cap M8-1.25 x 20mm

$6.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 736-0242

Washer, Bell, .345 x .88 x .060

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 751-3139

Tube, Exhaust

$

$

Currently unavailable

11

Cub Cadet 759-3744

Arrestor, Spark
(Superseded to 951-0544)

$

$

Not available

12

Cub Cadet BS-805024

Gasket, Exhaust
(Superseded to BS-691613)

$5.49

$

Usually ships in 2-12 days

0
