2160 (13A-266-100) - Cub Cadet Garden Tractor (SN: 326006 - 389000) Clutch Assembly Parts Diagram

Garden Tractor

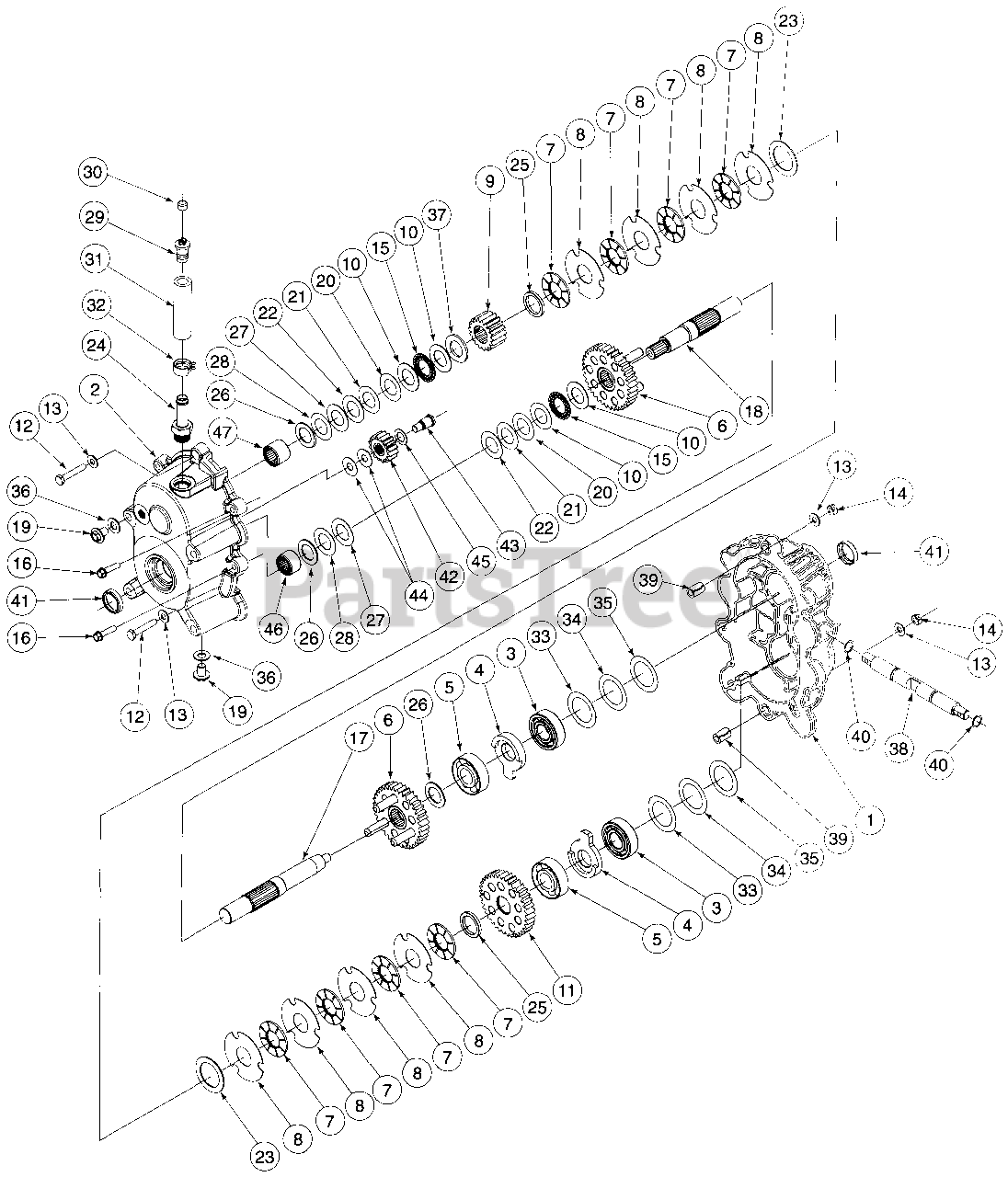

Clutch Assembly Parts Diagram

  • Title

1

Cub Cadet 619-3042

Housing, Front Clutch

$

$

Not available

Cub Cadet 759-3746

Sealant, Ultra Grey, 2 oz tube

$70.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 619-3041

Housing, Rear Clutch

$

$

Not available

3

Cub Cadet 741-3057

Bearing, Ball, .787 x 1.85 x .551
(Superseded to 941-3057)

$38.99

$

In Stock, Qty 10

0

4

Cub Cadet 718-3003

Fulcrum, Clutch

$

$

Not available

5

Cub Cadet 741-3040

Bearing, Angular Contact
(Superseded to 941-3040)

$

$

Not available

6

Cub Cadet 618-3020

Carrier Assembly, Clutch
(Superseded to 918-3020)

$125.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 718-3004

Plate, Clutch
(Superseded to 918-3004)

$22.99

$

In Stock, Qty 16

0

8

Cub Cadet 703-2133

Disc, Friction
(Superseded to 903-2133)

$

$

Not available

9

Cub Cadet 717-3355

Gear, 18T Drive

$

$

Not available

10

Cub Cadet 736-0551

Washer, Thrust, .793 x 1.369 x .039
(Superseded to 936-0551)

$9.99

$

In Stock, only 1 left!

0

11

Cub Cadet 717-3363

Gear, 36T

$

$

Not available

12

Cub Cadet 710-0606

Screw, Hex Cap, 1/4-20 x 1.5

$5.49

$

In Stock, Qty 9

0

13

Cub Cadet 736-0463

Washer, Flat, .25 ID x .62 OD

$4.49

$

In Stock, only 2 left!

0

14

Cub Cadet 712-0291

Nut, Hex Top Lock, 1/4-20

$4.49

$

In Stock, Qty 8

0

15

Cub Cadet 741-3067

Bearing, Needle, .825 x 1.368 x .078
(Superseded to 941-3067)

$

$

Not available

16

Cub Cadet 710-0788

Screw, Hex Wash Hd Tapp 1/4-20 x 1.0

$7.49

$

In Stock, only 4 left!

0

17

Cub Cadet 711-3323

Shaft, Clutch Input

$

$

Not available

18

Cub Cadet 711-3324

Shaft, Clutch Output

$

$

Not available

19

Cub Cadet 710-1323

Screw, Hex Plug, 3/8-16 x .438

$

$

Not available

20

Cub Cadet 736-0564

Washer, Flat, .793 x 1.368 x .015

Note: As Required

$6.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 736-0565

Washer, Flat, .793 x 1.368 x .020

Note: As Required

$

$

Not available

22

Cub Cadet 736-0566

Washer, Flat, .793 x 1.368 x .025

Note: As Required

$6.99

$

In Stock, Qty 13

0

23

Cub Cadet 736-3107

Washer, Flat, 1.25 x 1.80 x .062

$

$

Not available

24

Cub Cadet 727-3115

Tube Fitting, 1/2 Hose, 3/4-16 Thrd

$

$

Not available

25

Cub Cadet 750-3077

Spacer, Clutch, .915 x 1.25 x .148

$

$

Not available

26

Cub Cadet 736-0287

Washer, Flat, .793 x 1.24 x .060 Hdn

Note: As Required

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0562

Washer, Flat, .793 x 1.368 x .005
(Superseded to 936-0562)

Note: As Required

$8.49

$

In Stock, only 3 left!

0

28

Cub Cadet 736-0563

Washer, Flat, .793 x 1.368 x .010

Note: As Required

$13.99

$

In Stock, only 1 left!

0

29

Cub Cadet 731-1480

Vent, Plastic, .50 ID Hose

$15.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 731-1481

Cap, Plastic Vent

$10.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 731-0588

Line, Fuel, 1/2" ID 7.75 Long

$

$

Currently unavailable

32

Cub Cadet 726-0324

Clamp, Hose
(Superseded to 926-0324)

$7.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 736-3104

Washer, Flat, 1.25 x 1.80 x .015
(Superseded to 936-3104)

Note: As Required

$

$

Not available

34

Cub Cadet 736-3126

Washer, Flat, 1.25 x 1.80 x .005

Note: As Required

$

$

Not available

35

Cub Cadet 736-3127

Washer, Flat, 1.25 x 1.80 x .010
(Superseded to 936-3127)

Note: As Required

$6.99

$

In Stock, Qty 9

0

36

Cub Cadet 736-0567

Washer, Flat, .390 x .687 x .062

$3.49

$

Usually ships in 3-6 days

0

37

Cub Cadet 736-0134

Washer, Flat, .812 x 1.38 x .10

$4.49

$

In Stock, Qty 10

0

38

Cub Cadet 711-3325A

Shaft, Clutch Actuator

$

$

Not available

39

Cub Cadet 715-3045

Bushing, Dowel
(Superseded to 915-3045)

$9.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 721-3033

O-Ring, 1/2 ID x 5/8 OD

$

$

Not available

41

Cub Cadet 721-3035

Seal, Oil

$

$

Not available

42

Cub Cadet 618-3057

Gear Assembly, 16T Reverse Idler

$

$

Not available

43

Cub Cadet 738-3096

Shaft, Reverse Idler Gear

$

$

Not available

44

Cub Cadet 736-0344

Washer, Flat, .385 x 1.0 x .030

$4.99

$

In Stock, Qty 20+

0

45

Cub Cadet 736-3102

Washer, Flat, .510 x .86 x .030

$

$

Not available

46

Cub Cadet 741-3068

Bearing, Needle, .787 x 1.024 x .625

$

$

Not available

47

Cub Cadet 741-3072

Bearing, Needle, .787 x 1.024 x .787
(Superseded to 941-3072)

$

$

Not available

Cub Cadet 737-3025

Oil, Clutch

$

$

Not available

$

$

Not available
