2160 (136-266-100) - Cub Cadet Garden Tractor (SN: 326006 - 389000) Frame And Drawbar Parts Diagram

Garden Tractor

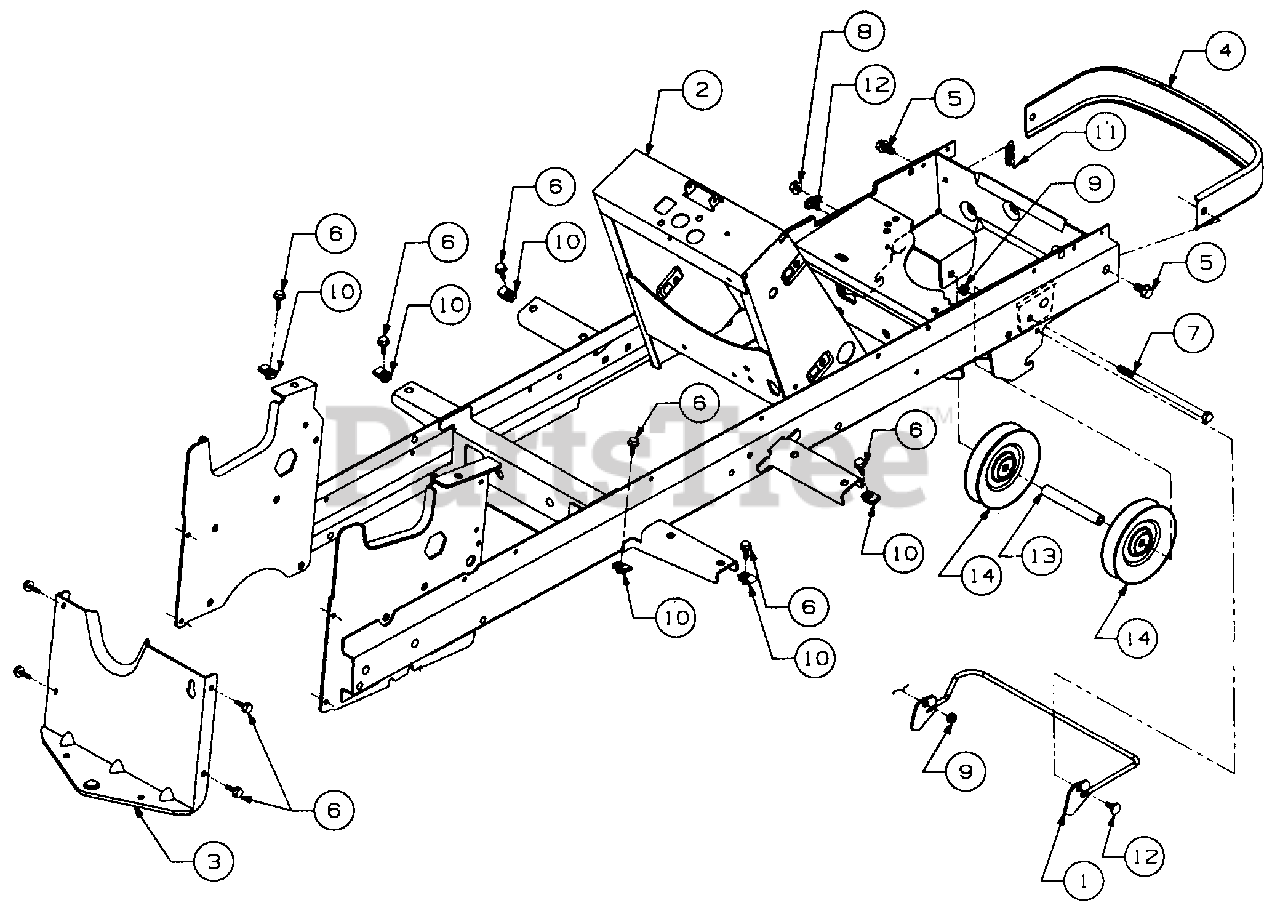

Frame And Drawbar Parts Diagram

  • Title
1

Cub Cadet 603-0132

Rod, Quick Attach
(Superseded to 603-04250-0637)

Note: Code 0498

Variations

Cub Cadet 603-0132-0498

Latch Assembly, Quick - OLD CUB YELLOW (0498)

$71.99

$

In Stock, only 1 left!

0

Cub Cadet 603-0132-0716

Latch Assembly, Quick - CUB YELLOW-99 (0716)

$71.99

$

In Stock, only 1 left!

0

$71.99

$

In Stock, only 1 left!

0

2

Cub Cadet 603-0328

Frame
(Superseded to 603-0328C-0716)

Note: (Serial No. 359000 & Below)

$

$

Not available

Cub Cadet 603-0328A

Frame
(Superseded to 603-0328C-0716)

Note: Code 0498; [(Serial No. 359001 & Above); Can be used to replace 603-0328]

Variations

Cub Cadet 603-0328A-0498

USE 603-0328C-0716 FRAME ASSY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0328A-0716

USE 603-0328C-0716 FRAME ASSY - CUB YELLOW-99 (0716)

$

$

Not available

$

$

3

Cub Cadet 703-2257

Drawbar

Note: Code 0498

Variations

Cub Cadet 703-2257-0498

USE 703-2257-0716 PLATE-TOW - OLD CUB YELLOW (0498)

$155.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2257-0716

PLATE-TOW - CUB YELLOW-99 (0716)

$155.99

$

Usually ships in 3-6 days

0

$144.99

$

Usually ships in 3-6 days

0

Cub Cadet 777-3947

Graphic, Tension Lever
(Superseded to 777S30014)

$9.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-2577

Bumper
(Superseded to 703-05626)

Note: Code 0498

Variations

Cub Cadet 703-2577-0498

Front Bumper - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2577-0716

Front Bumper - CUB YELLOW-99 (0716)

$

$

Not available

$

$

5

Cub Cadet 710-0623

Screw, Hex Wash Hd Tapp 3/8-16 x .75

$4.49

$

In Stock, only 2 left!

0

6

Cub Cadet 710-1260

Screw, Hex Wash Hd Tapp 5/16-18 x .75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3261

Screw, Hex Cap, 3/8-16 x 7.0

$13.99

$

In Stock, only 2 left!

0

8

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 726-0211

U-Nut, 5/16-18

$4.49

$

In Stock, only 1 left!

0

11

Cub Cadet 732-3002

Spring, Latch
(Superseded to 932-3002)

$9.49

$

In Stock, only 4 left!

0

12

Cub Cadet 738-0255

Bolt, Shoulder
(Superseded to 938-0255)

$5.49

$

In Stock, Qty 8

0

13

Cub Cadet 750-3114

Spacer, Idler, .407 x .62 x 4.38
(Superseded to 750-3114A)

$19.99

$

In Stock, only 1 left!

0

14

Cub Cadet 756-3045

Pulley, Idler
(Superseded to 956-3045A)

$57.99

$

In Stock, Qty 6

0
