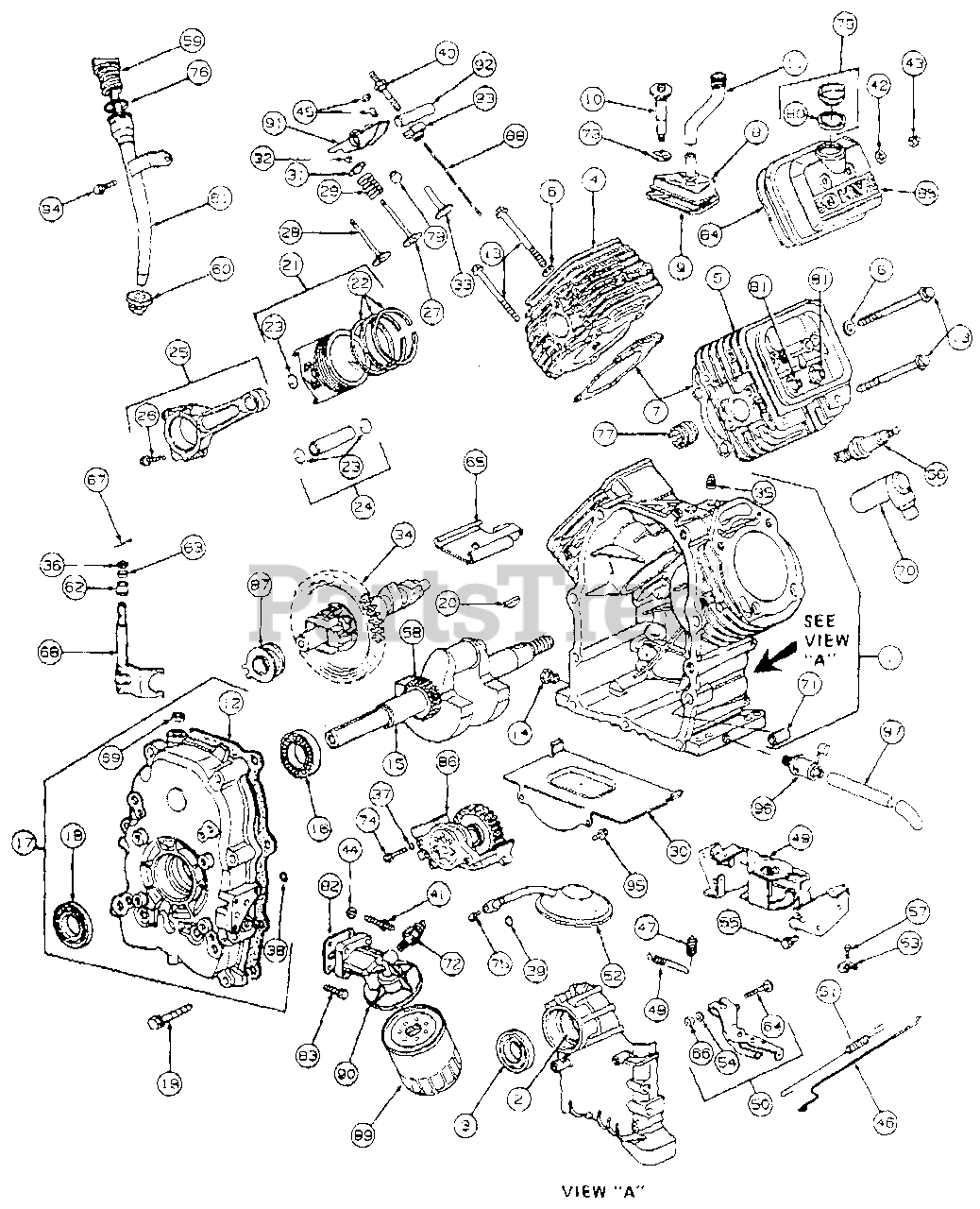

2160 (136-266-100) - Cub Cadet Garden Tractor (SN: 326006 - 389000) Engine Assembly Parts Diagram

Garden Tractor

Engine Assembly Parts Diagram

  • Title

Cub Cadet BS-303447-1147

Engine, Complete
(Superseded to BS-305447-3079)

$

$

Not available

Cub Cadet BS-494054

Short Block

$

$

Not available

1

Cub Cadet BS-807521

Cylinder Assy

$522.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-807687

Bearing

$

$

Not available

3

Cub Cadet BS-805101

Seal, Oil
(Superseded to BS-805101S)

$13.99

$

Usually ships in 2-12 days

0

4

Cub Cadet BS-807987

Head, Cylinder (Cylinder #1)
(Superseded to BS-809200)

$226.99

$

In Stock, only 4 left!

0

5

Cub Cadet BS-807988

Head, Cylinder (Cylinder #2)
(Superseded to BS-845716)

$220.99

$

In Stock, Qty 5

0

6

Cub Cadet BS-805193

Washer

$

$

Not available

7

Cub Cadet BS-807986

Gasket, Cylinder Head

$26.99

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-807795

Breather Assy
(Superseded to BS-808988)

$38.99

$

In Stock, Qty 7

0

9

Cub Cadet BS-805379

Gasket, Breather
(Superseded to BS-844986)

$8.49

$

In Stock, only 3 left!

0

10

Cub Cadet BS-805751

Screw
(Superseded to BS-690751)

$7.49

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-805362

Tube, Breather
(Superseded to BS-806083S)

$16.99

$

In Stock, Qty 20+

0

12

Cub Cadet BS-805112

Gasket, Cover
(Superseded to BS-845254)

$45.99

$

In Stock, Qty 13

0

13

Cub Cadet BS-805097

Screw
(Superseded to BS-692059)

$3.99

$

In Stock, only 4 left!

0

14

Cub Cadet BS-805048

Plug, Oil Drain
(Superseded to BS-690946)

$5.99

$

In Stock, Qty 14

0

15

Cub Cadet BS-807589

Crankshaft

$

$

Not available

Cub Cadet BS-807625

Washer, Thrust

$19.99

$

Usually ships in 2-12 days

0

16

Cub Cadet BS-805213

Bearing, Ball
(Superseded to BS-843827)

$36.99

$

In Stock, only 3 left!

0

17

Cub Cadet BS-807628

Cover, Crankcase
(Superseded to BS-844588)

$247.99

$

Usually ships in 2-12 days

0

18

Cub Cadet BS-805049

Seal, Oil
(Superseded to BS-805049S)

$12.99

$

In Stock, Qty 20+

0

19

Cub Cadet BS-805017

Screw, Cover

$

$

Not available

20

Cub Cadet BS-805016

Key, Flywheel

$

$

Not available

21

Cub Cadet BS-807619

Piston Assy
(Superseded to BS-843951)

$

$

Not available

Cub Cadet BS-807807

Piston Assy, .010 O.S.

$96.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-807809

Piston Assy, .020 O.S.

$

$

Not available

Cub Cadet BS-807811

Piston Assy, .030 O.S.

$95.99

$

Usually ships in 2-12 days

0

22

Cub Cadet BS-807620

Ring Set, Piston
(Superseded to BS-843951)

$

$

Not available

Cub Cadet BS-807808

Ring Set, Piston .010 O.S.

$34.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-807810

Ring Set. Piston .020 O.S.

$133.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-807812

Ring Set, Piston .030 O.S.

$45.99

$

Usually ships in 2-12 days

0

23

Cub Cadet BS-805099

Lock, Piston Pin

$

$

Not available

24

Cub Cadet BS-807621

Pin Assy, Piston

$17.99

$

Usually ships in 2-12 days

0

25

Cub Cadet BS-807622

Rod Assy
(Superseded to BS-807900S)

$

$

Not available

Cub Cadet BS-807803

Rod Assy, .020 U.S

$65.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-805395

Screw, Rod
(Superseded to BS-690698)

$7.49

$

Usually ships in 2-12 days

0

27

Cub Cadet BS-807681

Valve, Exhaust

$

$

Not available

28

Cub Cadet BS-807680

Valve, Intake

$26.99

$

In Stock, only 2 left!

0

29

Cub Cadet BS-805937

Spring, Valve
(Superseded to BS-692084)

$6.49

$

In Stock, Qty 11

0

30

Cub Cadet BS-805300

Plate, Windage

$

$

Not available

31

Cub Cadet BS-805092

Retainer, Valve Spring
(Superseded to BS-692058)

$5.49

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-807683

Retainer
(Superseded to BS-844788)

$6.99

$

In Stock, Qty 12

0

33

Cub Cadet BS-805354

Valve, Tappet
(Superseded to BS-690977)

$7.99

$

Usually ships in 2-12 days

0

34

Cub Cadet BS-807542

Gear, Cam
(Superseded to BS-845649)

$184.99

$

Usually ships in 2-12 days

0

35

Cub Cadet BS-805059

Plug, Pipe

$

$

Not available

36

Cub Cadet BS-805054

Seal, Governor Shaft
(Superseded to BS-842826)

$7.99

$

Usually ships in 2-12 days

0

37

Cub Cadet BS-805058

O-Ring
(Superseded to BS-690681)

$5.99

$

In Stock, only 2 left!

0

38

Cub Cadet BS-805198

O-Ring

$4.99

$

Usually ships in 2-12 days

0

39

Cub Cadet BS-805316

O-Ring
(Superseded to BS-690690)

$5.99

$

Usually ships in 2-12 days

0

40

Cub Cadet BS-805343

Stud

$

$

Not available

41

Cub Cadet BS-805073

Stud, Adapter
(Superseded to BS-690682)

$4.49

$

Usually ships in 2-12 days

0

42

Cub Cadet BS-805420

Washer
(Superseded to BS-691766)

$6.49

$

In Stock, Qty 20+

0

43

Cub Cadet BS-805019

Nut, Nylock
(Superseded to BS-692055)

$3.99

$

In Stock, Qty 9

0

44

Cub Cadet BS-805449

Lockwasher

$

$

Not available

45

Cub Cadet BS-807623

Screw, Adjustment

$11.99

$

In Stock, only 1 left!

0

46

Cub Cadet BS-805480

Link, Governor

$

$

Not available

47

Cub Cadet BS-805460

Spring, Governor
(Superseded to BS-692070)

$5.99

$

In Stock, Qty 10

0

48

Cub Cadet BS-805453

Spring, Idle
(Superseded to BS-692069)

$6.49

$

In Stock, Qty 8

0

49

Cub Cadet BS-807610

Bracket, Governor

$

$

Not available

50

Cub Cadet BS-807528

Lever Assy

$

$

Not available

51

Cub Cadet BS-805465

Spring, Governor Link
(Superseded to BS-692073)

$9.49

$

In Stock, only 2 left!

0

52

Cub Cadet BS-807598

Spring, Pick-Up

$

$

Not available

53

Cub Cadet BS-221535

Clamp, Casing
(Superseded to BS-691024)

$3.99

$

In Stock, Qty 7

0

54

Cub Cadet BS-805018

Washer

$

$

Not available

55

Cub Cadet BS-805025

Screw, Sems

$

$

Not available

56

Cub Cadet 759-3336

Plug, Spark
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

57

Cub Cadet BS-805169

Screw, Hex Hd

$

$

Not available

58

Cub Cadet BS-805675

Gear, Timing

$

$

Not available

Cub Cadet BS-94196

Key, Timing Gear

$

$

Not available

59

Cub Cadet BS-807977

Dipstick
(Superseded to BS-846409)

$33.99

$

Usually ships in 2-12 days

0

60

Cub Cadet BS-805259

Seal
(Superseded to BS-281370S)

$8.49

$

In Stock, Qty 20+

0

61

Cub Cadet BS-807976

Tube, Filler
(Superseded to BS-690907)

$41.99

$

Usually ships in 2-12 days

0

62

Cub Cadet BS-805413

Bushing

$

$

Not available

63

Cub Cadet BS-805412

Bushing

$

$

Not available

64

Cub Cadet BS-805381

Bolt

$

$

Not available

65

Cub Cadet BS-805197

Baffle, Breather
(Superseded to BS-690686)

$14.99

$

In Stock, only 1 left!

0

66

Cub Cadet BS-805383

Nut, Hex
(Superseded to 712-0689)

$

$

Not available

67

Cub Cadet BS-805417

Pin, Cotter

$

$

Not available

68

Cub Cadet BS-807596

Fork, Governor
(Superseded to BS-690899)

$14.99

$

Usually ships in 2-12 days

0

69

Cub Cadet BS-805416

Washer
(Superseded to BS-690704)

$5.99

$

In Stock, only 2 left!

0

70

Cub Cadet BS-805529

Elbow, Spark Plug
(Superseded to BS-692076)

$5.49

$

In Stock, Qty 20+

0

71

Cub Cadet BS-805103

Dowel

$

$

Not available

72

Cub Cadet BS-491657

Switch, Oil Pressure
(Superseded to BS-491657S)

$31.99

$

In Stock, only 4 left!

0

73

Cub Cadet BS-807688

Seal, Screw
(Superseded to BS-844986)

$8.49

$

In Stock, only 3 left!

0

74

Cub Cadet BS-805057

Screw, Sems
(Superseded to BS-691492)

$3.99

$

In Stock, only 2 left!

0

75

Cub Cadet BS-805317

Screw, Mounting
(Superseded to BS-807084)

$3.49

$

In Stock, only 3 left!

0

76

Cub Cadet BS-805386

O-Ring
(Superseded to BS-690611)

$7.49

$

Usually ships in 2-12 days

0

77

Cub Cadet BS-805083

Liner, Exhaust Port
(Superseded to BS-691493)

$12.99

$

Usually ships in 2-12 days

0

78

Cub Cadet BS-805094

Seal, Valve Guide
(Superseded to BS-691963)

$10.99

$

In Stock, Qty 20+

0

79

Cub Cadet BS-491832

Plug, Oil Fill
(Superseded to BS-809500)

$10.99

$

In Stock, Qty 15

0

80

Cub Cadet BS-271983

Seal, Fill Plug
(Superseded to BS-809500)

$10.99

$

In Stock, Qty 15

0

81

Cub Cadet BS-805084

Guide, Valve
(Superseded to BS-692057)

$

$

Not available

82

Cub Cadet BS-805250

Gasket, Adapter
(Superseded to BS-692063)

$4.49

$

In Stock, Qty 5

0

83

Cub Cadet BS-805030

Screw, Sems
(Superseded to BS-690679)

$3.49

$

Usually ships in 2-12 days

0

84

Cub Cadet BS-806039

Gasket, Valve Cover
(Superseded to BS-806039S)

$7.49

$

In Stock, Qty 20+

0

85

Cub Cadet BS-805842

Cover, Valve LH
(Superseded to BS-843749)

Note: (Shown)

$39.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-807665

Cover, Valve RH
(Superseded to BS-691558)

Note: (Not Shown); (Used on Cylinder #1)

$20.99

$

In Stock, only 1 left!

0

86

Cub Cadet BS-807644

Oil Pump Assy

$

$

Not available

87

Cub Cadet BS-805313

Slider, Governor
(Superseded to BS-690689)

$22.99

$

In Stock, only 2 left!

0

88

Cub Cadet BS-805352

Rod, Push
(Superseded to BS-691836)

$12.99

$

In Stock, Qty 20+

0

Cub Cadet BS-805617

Rod, Push
(Superseded to BS-691758)

Note: (Exhaust)

$11.99

$

In Stock, Qty 20+

0

89

Cub Cadet BS-492932

Filter, Oil
(Superseded to BS-492932S)

$12.99

$

In Stock, Qty 20+

0

90

Cub Cadet BS-805292

Adapter, Filter
(Superseded to BS-808235)

$78.99

$

Usually ships in 2-12 days

0

91

Cub Cadet BS-808096

Arm, Rocker

$

$

Not available

92

Cub Cadet BS-805342

Shaft

$

$

Not available

93

Cub Cadet BS-805341

Support

$

$

Not available

94

Cub Cadet BS-805177

Screw, Mounting

$

$

Not available

95

Cub Cadet BS-805406

Screw, Sems
(Superseded to BS-691982)

$3.99

$

In Stock, only 4 left!

0

96

Cub Cadet 751-3140

Drain, Oil
(Superseded to 951-10517A)

$24.99

$

In Stock, only 3 left!

0

Cub Cadet 751-3142

Cap

$4.49

$

In Stock, Qty 14

0

97

Cub Cadet 751-3141-12

Hose, Oil Drain
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0
