2160 (135-266-100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Implement Lift Hanger Parts Diagram

Garden Tractor

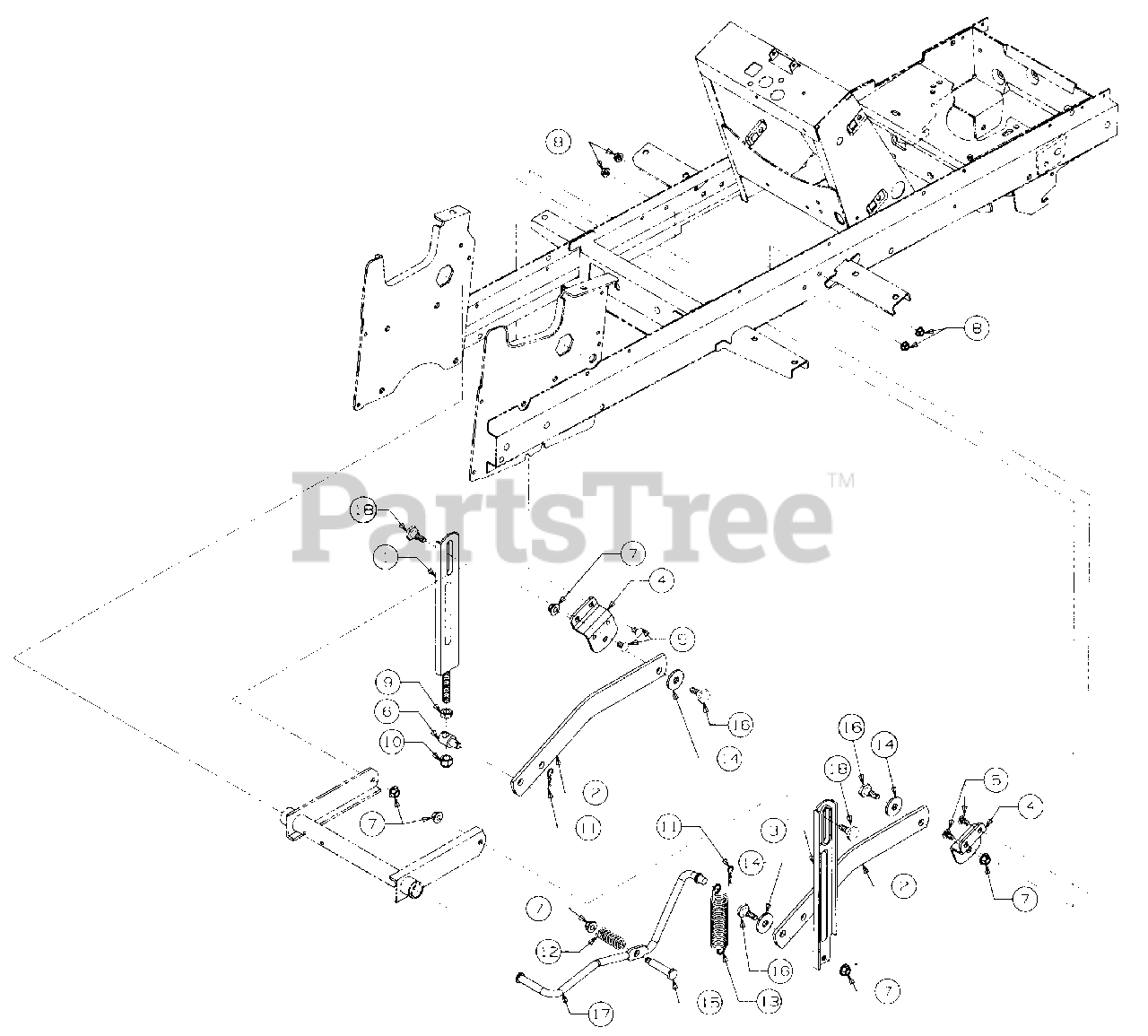

Implement Lift Hanger Parts Diagram

  • Title

1

Cub Cadet 603-0058

Bracket, LH Hanger
(Superseded to 603-0058-0716)

Variations

Cub Cadet 603-0058-0716

BRACKET ASSY - CUB YELLOW-99 (0716)

$75.99

$

Usually ships in 3-6 days

0

$75.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-2233

Link, Lift

$

$

Not available

3

Cub Cadet 703-2234

Bracket, RH Hanger

Variations

Cub Cadet 703-2234-4021

BRACKET ASSY - CUB YELLOW 2 (4021)

$

$

Not available

$

$

4

Cub Cadet 703-2456

Bracket, Lift

$

$

Not available

5

Cub Cadet 710-0260

Bolt, Carriage, 5/16-18 x .62 Lg...
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 711-3319

Ferrule, Adjustment
(Superseded to 911-3319)

$

$

Not available

7

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-3004A

Nut, Hex Flange Top Lock 5/16-188

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3048

Nut, Hex Jam, 1/2-13 GR5

$4.99

$

In Stock, Qty 16

0

10

Cub Cadet 712-3083

Nut, Hex Top Nylon Lock, 1/2-13

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 714-0145

Pin, Internal Cotter, .092 Dia x 1.63 Lg

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 732-3094

Spring, Compression, .63 ID x 2.0 Lg
(Superseded to 932-3094)

$10.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 732-3120A

Spring, Extension, 1.0 OD x 6.42 Lg, 43 Coils, Light Duty 46" Deck

$31.99

$

In Stock, only 1 left!

0

Cub Cadet 732-3126

Spring, Extension, .91 OD x 7.33 Lg, 46 Coils, Heavy Duty 48" Deck
(Superseded to 932-3126)

$21.99

$

In Stock, Qty 7

0

14

Cub Cadet 736-3125

Washer, Flat, .50 x 1.5 x .15 Thk

$

$

Not available

15

Cub Cadet 738-0129

Bolt, Shoulder

$11.99

$

In Stock, only 1 left!

0

16

Cub Cadet 738-0507B

Bolt, Shoulder

$4.49

$

In Stock, only 4 left!

0

17

Cub Cadet 747-3236

Rod, RH Lift Assist
(Superseded to 747-3236A)

$77.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 738-0430

Bolt, Shoulder

$11.99

$

In Stock, only 2 left!

0
