2160 (135-266-100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) Front Axle and Connections Parts Diagram

Garden Tractor

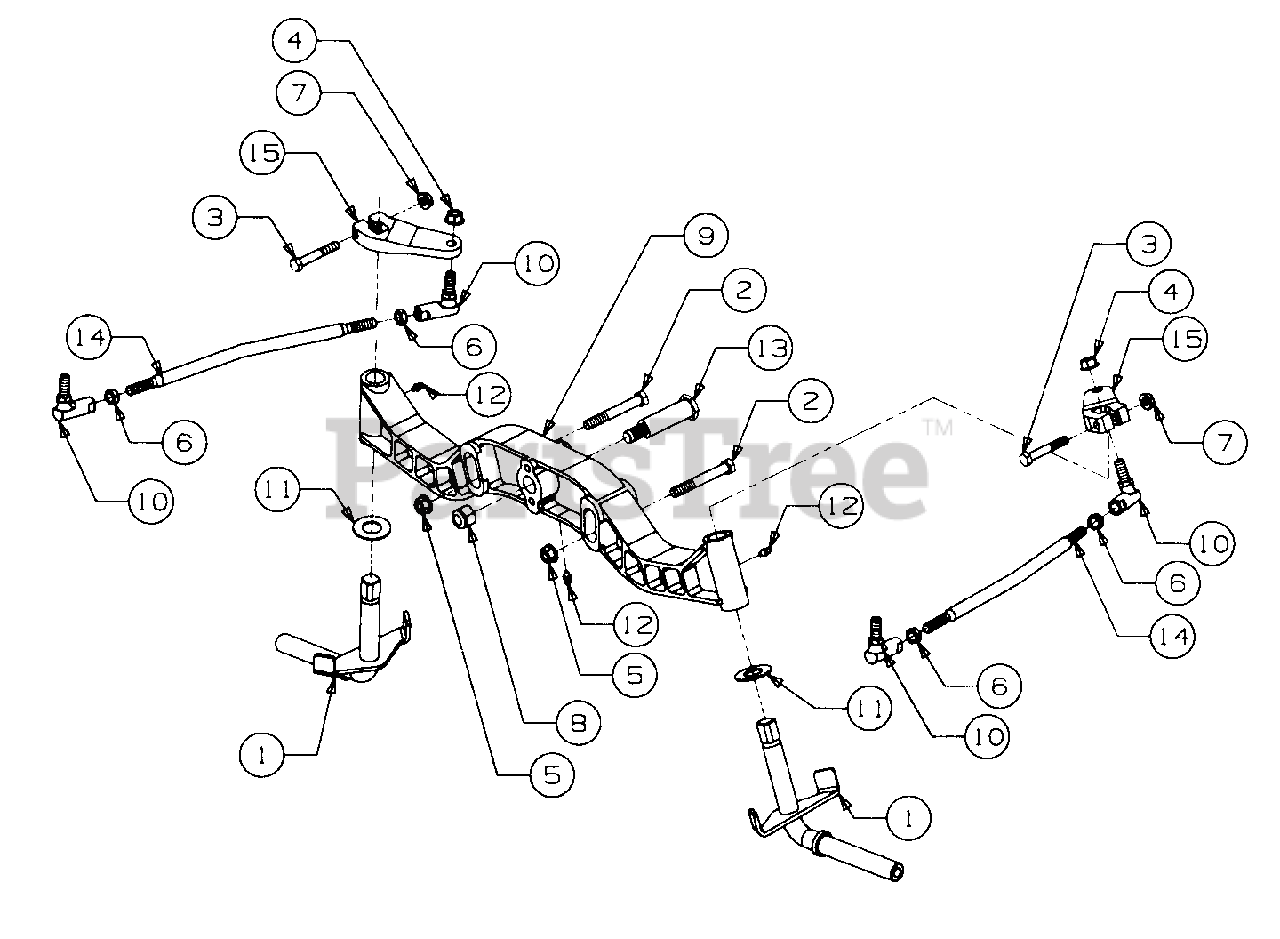

Front Axle and Connections Parts Diagram

  • Title

1

Cub Cadet 603-0066

Knuckle Assy, Steering

$

$

Not available

2

Cub Cadet 710-3066

Screw, Hex Cap, 3/8-16 x 2.75 Lg GR8

$5.49

$

In Stock, Qty 7

0

3

Cub Cadet 710-0116

Screw, Hex Cap, 5/16-18 x 2.0 Lg GR2
(Superseded to 710-3103)

$4.49

$

In Stock, only 4 left!

0

4

Cub Cadet 712-3054

Nut, Hex Lock, 3/8-24 GR5

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-3001

Nut, Hex Jam, 3/8-24 GR5
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 18

0

7

Cub Cadet 712-3004A

Nut, Hex Flange Top Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-3083

Nut, Hex Top Nylon Lock, 1/2-13

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 719-3095

Axle, Front Pivot

$438.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 723-0156

Joint, Ball, 3/8-24
(Superseded to 923-0156)

$16.99

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0188

Washer, Flat, .760 x 1.49 x .06 Thk Hdn

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive Type
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 738-3110

Bolt, Pivot Shoulder, 3/4 Dia x 2.23 Lg
(Superseded to 938-3110)

$33.99

$

In Stock, Qty 5

0

14

Cub Cadet 747-3171

Rod, Tie

$31.99

$

In Stock, only 3 left!

0

15

Cub Cadet 748-3049

Arm, Steering

$48.99

$

Usually ships in 3-6 days

0
