216 KW (52A-370-195) - MTD Pro Walk-Behind Mower Rear Axle Self Propelled Parts Diagram

Pro Walk-Behind Mower

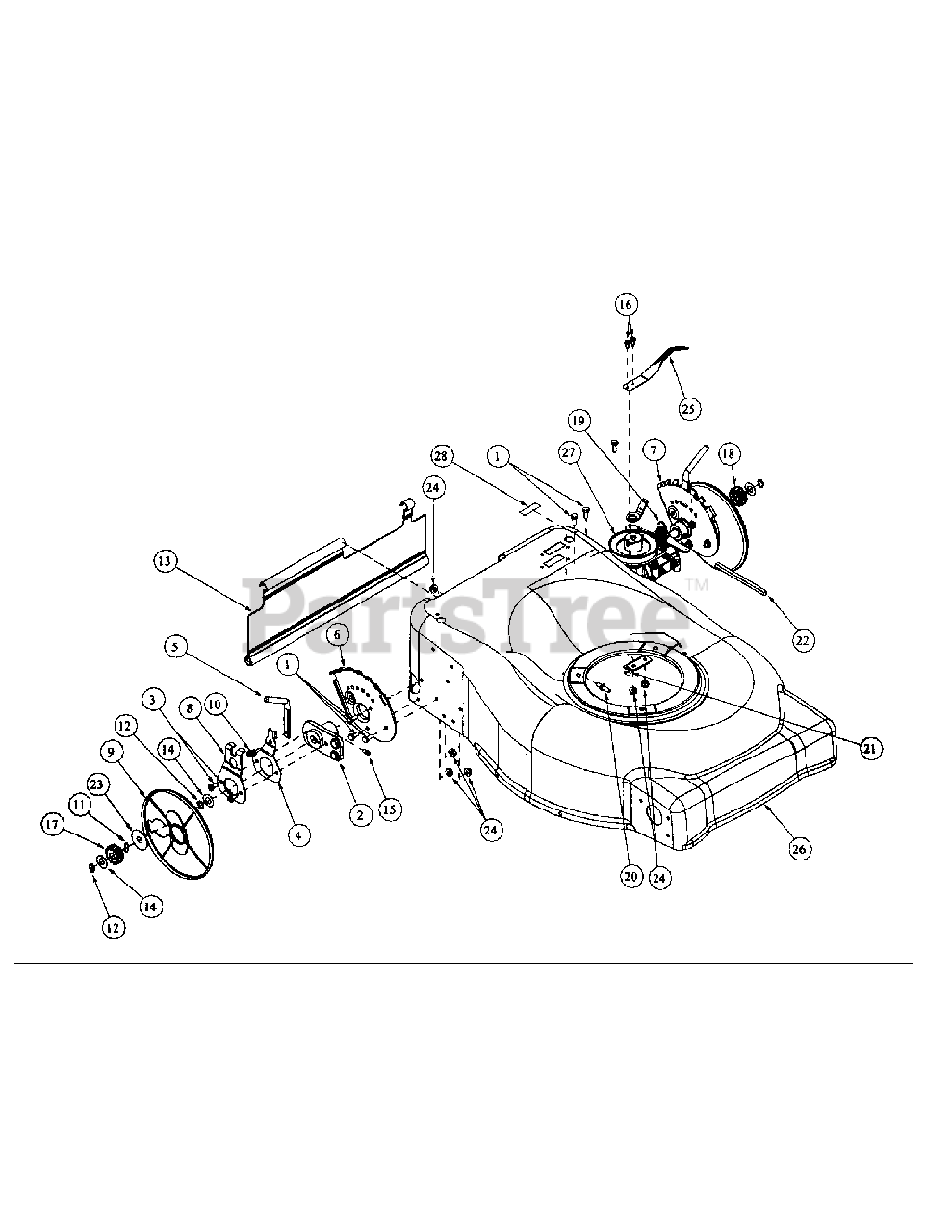

Rear Axle Self Propelled Parts Diagram

  • Title

1

MTD 710-0751

Hex, Cap Screw, 1/4-20, .620

$3.99

$

In Stock, Qty 20+

0

2

MTD 01000861

Pivot, Wheel, Bracket Assembly, 2 Pos

$91.99

$

Usually ships in 3-6 days

0

3

MTD 710-0599

Screw, TT, 1/4-20, .625

$4.49

$

In Stock, Qty 20+

0

4

MTD 732-0864

Height Adjuster, Spring Plate

$

$

Not available

5

MTD 01002829

Height Adjuster, Handle

Note: NLA

$

$

Not available

6

MTD 01002830

Height Adjuster, Bracket, Right Rear

Note: NLA

$

$

Not available

7

MTD 01002831

Height Adjuster, Bracket, Left Rear

Note: NLA

$

$

Not available

8

MTD 01002832

Spring Lever, Support, Bracket

$

$

Not available

9

MTD 01000920

Drive Wheel, Dust, Cover

$19.99

$

In Stock, only 1 left!

0

10

MTD 710-0653

Screw, 1/4-20, .375, Index Washer

$4.49

$

In Stock, Qty 8

0

11

MTD 01000927

Dowel Pin, 3/16 x 3/4

$

$

Not available

12

MTD 01000928

Retainer Ring, .500 Dia Heavy Duty

$

$

Not available

13

MTD 01000929

Trailshield, 6.12 x 17.91 Long

Note: NLA

$

$

Not available

14

MTD 936-0369

Flat Washer, .508 ID x 1.00 OD x .020
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 20+

0

15

MTD 937-0146

Grease Fitting

$5.49

$

In Stock, only 2 left!

0

16

MTD 01001864

Screw, #10-24-24, 0.500, Hex Index Washer
(Superseded to 1767754)

$

$

Not available

17

MTD 01002033

Pinion Gear, 15T, With Ratchet, R

$

$

Not available

18

MTD 01002034

Pinion Gear, 15T, With Ratchet, L

$

$

Not available

19

MTD 01002526

Extension Spring, .75 OD x 2.37

$

$

Not available

20

MTD 711-1293

Belt, Pin, Keeper

$4.99

$

Usually ships in 3-6 days

0

21

MTD 01004290

Transmission, Spring Bracket, Tuff Torque

$

$

Not available

22

MTD 01002700

Belt, V Type, 3/8 x 32.92 Long

$

$

Not available

23

MTD 01002759

Thrust Washer, .510 x 1.562 x .03

Note: NLA

$

$

Not available

24

MTD 912-3027

Nut, 1/4-20, Hex Flange, Lock

$4.49

$

In Stock, Qty 20+

0

25

MTD 01003822

Shift Spring

$

$

Not available

26

MTD 01003961

21" Deck

Note: NLA

$

$

Not available

27

MTD 01004124

Transmission Assembly, 3-Speed

Note: NLA

$

$

Currently unavailable

28

MTD 01004433

Label, Shift, 21

Note: NLA

$

$

Not available
