216 KW (52A-370-195) - MTD Pro Walk-Behind Mower Front Axle Parts Diagram

Pro Walk-Behind Mower

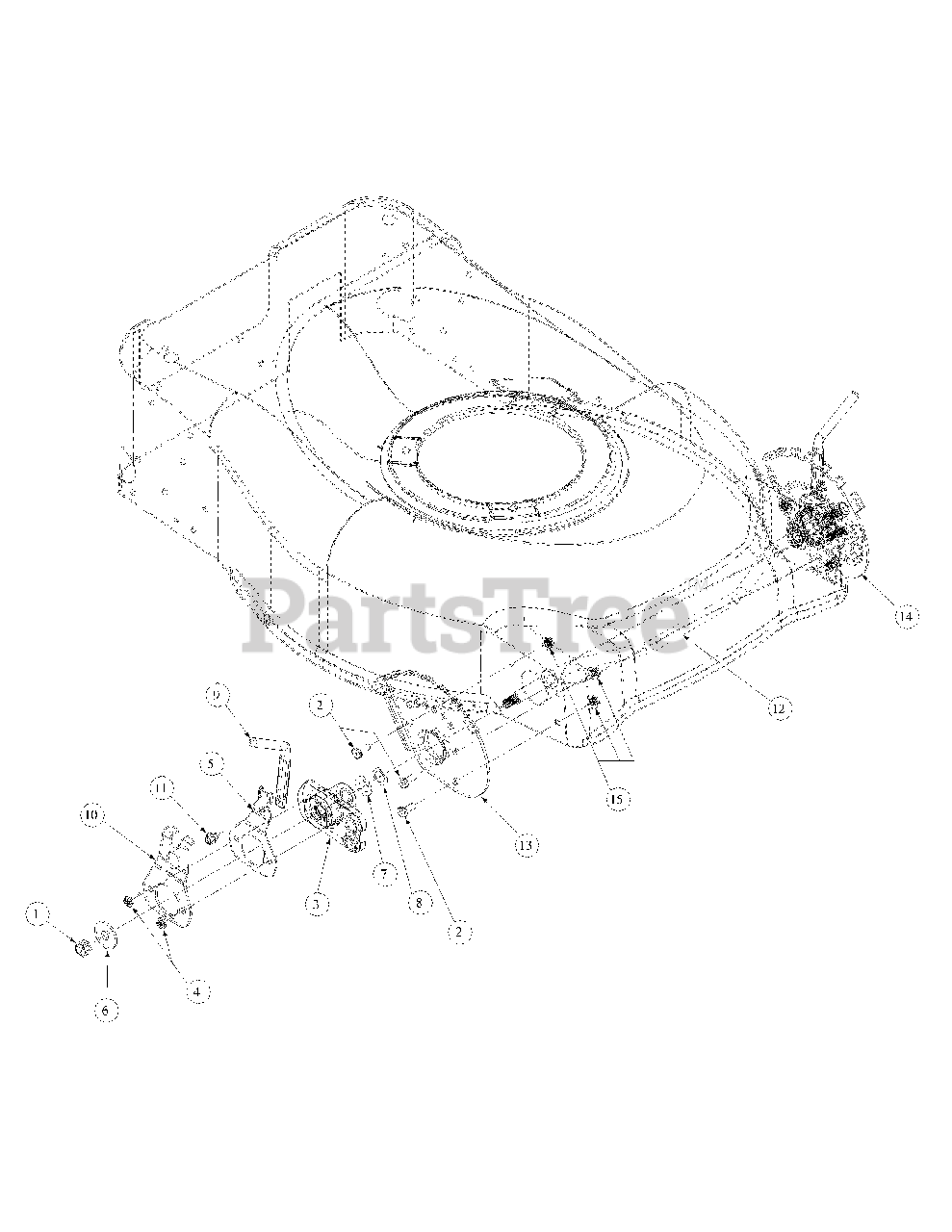

Front Axle Parts Diagram

  • Title

1

MTD 712-04065

L-Nut,3/8-16, NYL INS. GR A. Z

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-0751

HHCS,1/4-20, .620, GR5, Standard

$3.99

$

In Stock, Qty 20+

0

3

MTD 01000861

Pivot Wheel Bracket Assembly, 2 POS

$91.99

$

Usually ships in 3-6 days

0

4

MTD 710-0599

Screw,TT, 1/4-20, 0.625, PANTRXI

$4.49

$

In Stock, Qty 20+

0

5

MTD 732-0864

Plate, Spring Height Adjuster

$

$

Not available

6

MTD 936-0133

Flat Washer, .411 x 1 .25 x .100
(Superseded to 736-0133)

$

$

Not available

7

MTD 936-0160

Flat Washer, .536 ID x .930 OD x .05

$4.49

$

In Stock, only 1 left!

0

8

MTD 936-0232

Wave Washer, .531 IDX .781 ODX .01
(Superseded to 736-0232)

$4.99

$

In Stock, Qty 12

0

9

MTD 01002829

Height Adjustment Handle

Note: NLA

$

$

Not available

10

MTD 01002832

Spring Lever Support Bracket

$

$

Not available

11

MTD 710-0653

Screw, TT, 1/4-20, 0.375, Hex Indicator Washer

$4.49

$

In Stock, Qty 7

0

12

MTD 01002837

Front Axle, .500 OD

Note: NLA

$

$

Not available

13

MTD 01002838

Height Adjustment Bracket, Right Front

$

$

Not available

14

MTD 01002839

Height Adjustment Bracket, Left Front

$

$

Not available

15

MTD 912-3027

Nut,1/4-20, Hex Flange, Lock, Group F

$4.49

$

In Stock, Qty 20+

0
