216 IP (52B-370-195) - MTD Pro Walk-Behind Mower Wheel Component With Gear Parts Diagram

Pro Walk-Behind Mower

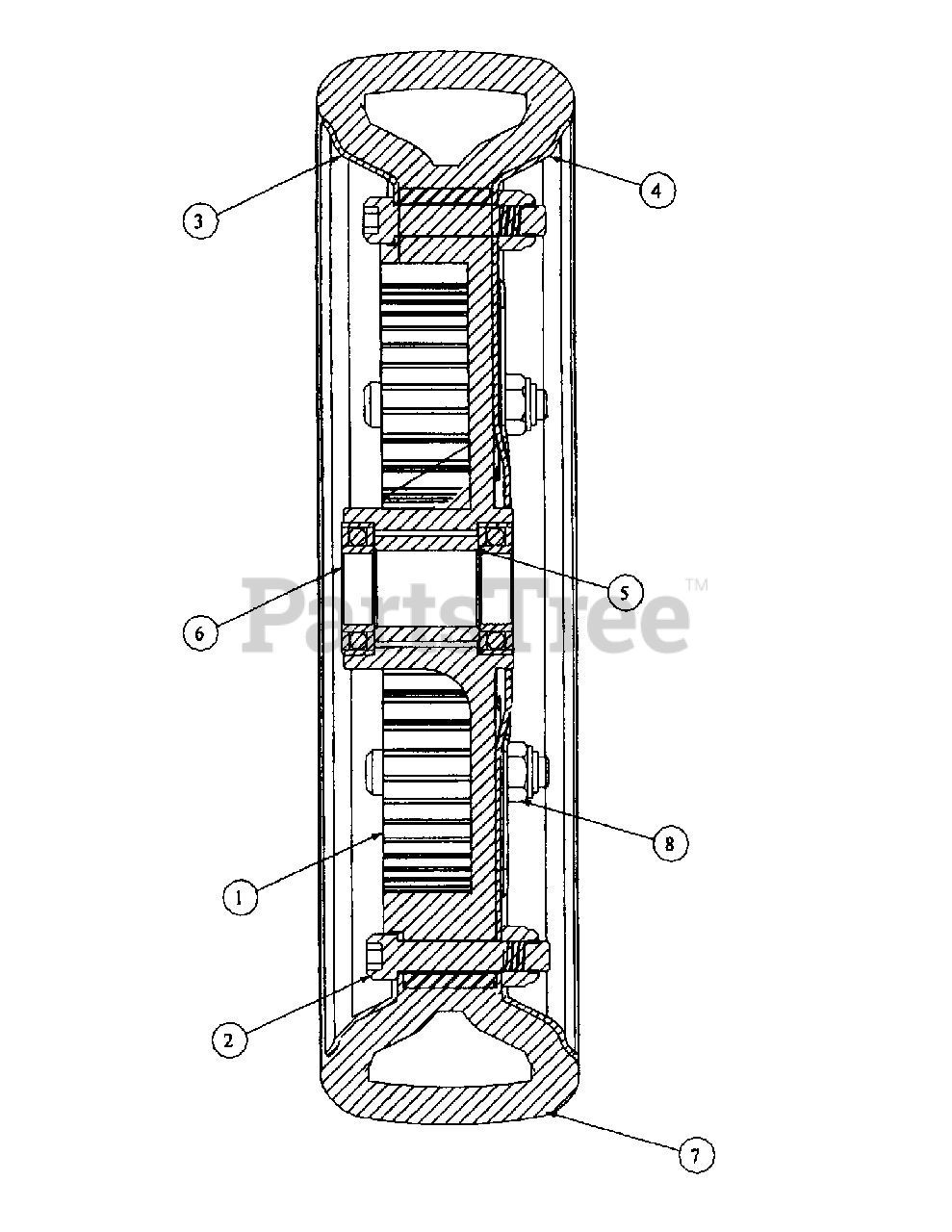

Wheel Component With Gear Parts Diagram

  • Title
1

MTD 01001249

internal Gear, 63T w/ Hub

Note: NLA

$

$

Currently unavailable

2

MTD 01002540

Socket Screw, 1/4-20 x 1.25

$

$

Not available

3

MTD 01004365

Rim Wheel, Inner Half

Note: NLA

$

$

Currently unavailable

4

MTD 01004366

Outer Half, Wheel Rim

Note: NLA

$

$

Currently unavailable

5

MTD 750-3065

Spacer, .635 ID x .86 Long

$9.49

$

Usually ships in 3-6 days

0

6

MTD 01000916

Ball Bearing, 15mm x 28mm x 7mm

$

$

Not available

7

MTD 01000915

Tire, 9 x 2.125

$

$

Not available

8

MTD 712-0324

Hex, Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 16

0
