216 IP (52B-370-195) - MTD Pro Walk-Behind Mower Transmission For Shift Lever Parts Diagram

Pro Walk-Behind Mower

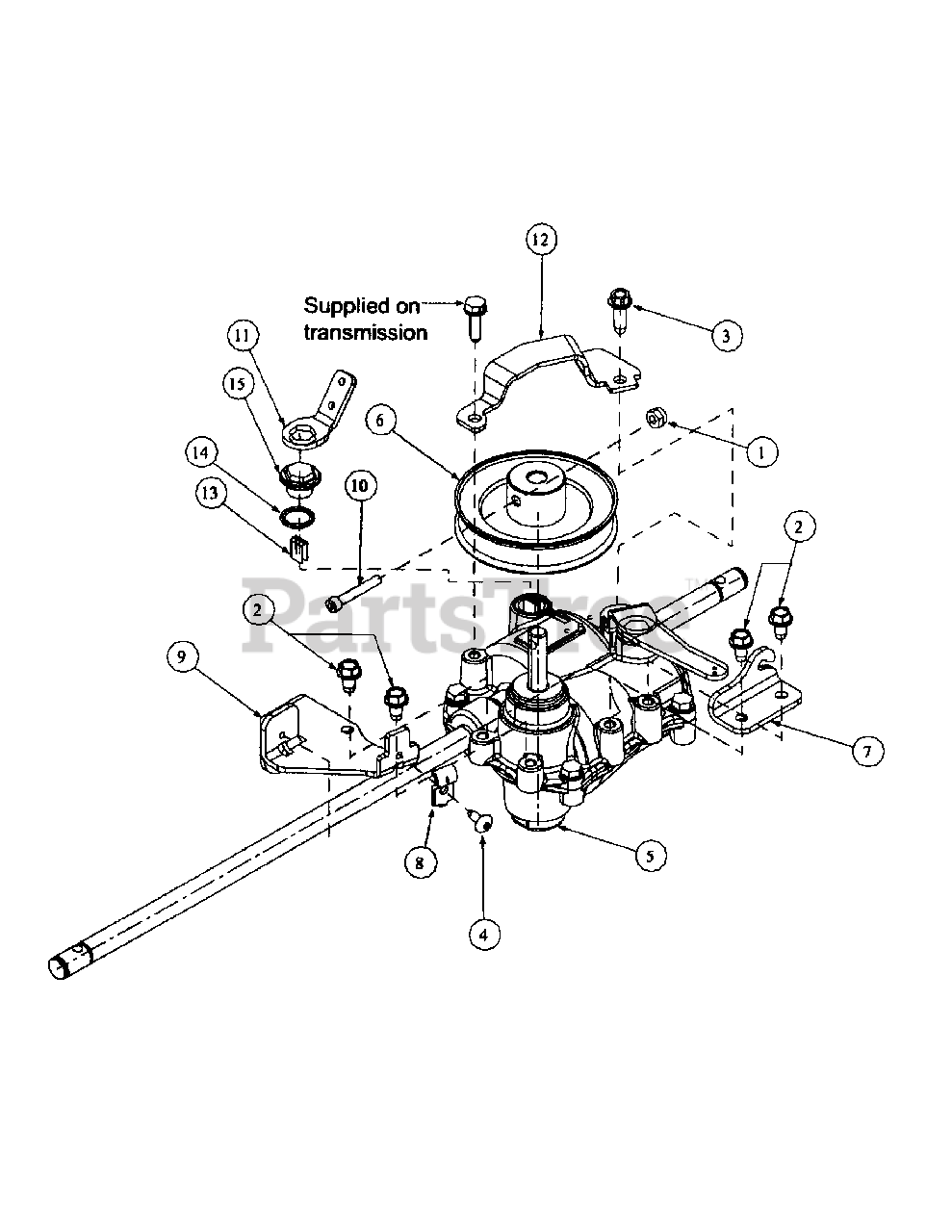

Transmission For Shift Lever Parts Diagram

  • Title

1

MTD 712-0161

Nylon Lock Nut, #10-24

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0599

Screw, TT, Hex Index Washer, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0642

Screw, TT, Hex Index Washer, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0351

Screw, B, #10-16, 0.500, Trustrxi

$4.49

$

Usually ships in 3-6 days

0

5

MTD 01002035P

Complete Transmission, 3-Speed

$

$

Not available

6

MTD 01002036

Transmission Pulley, 3/8V x 3.50 OD

$

$

Not available

7

MTD 01002798

Spring Bracket Transmission

$

$

Not available

8

MTD 01002762

Cable Clamp, 3/16

Note: NLA

$

$

Not available

9

MTD 01003139

Transmission Clutch Bracket

Note: NLA

$

$

Not available

10

MTD 01003133

Socket Screw, 10-24 x 1.25

$3.49

$

Usually ships in 3-6 days

0

11

MTD 01003958

Shift Bracket

$

$

Not available

12

MTD 01003959

Shift Bracket Retainer

$

$

Not available

13

MTD 01003965

Self Propelled, Shim, 21"

$

$

Not available

14

MTD 01004088

3-Speed, O-Ring, Seal

$

$

Not available

15

MTD 01004089

3-Speed, Clutch, Cap

$

$

Not available
