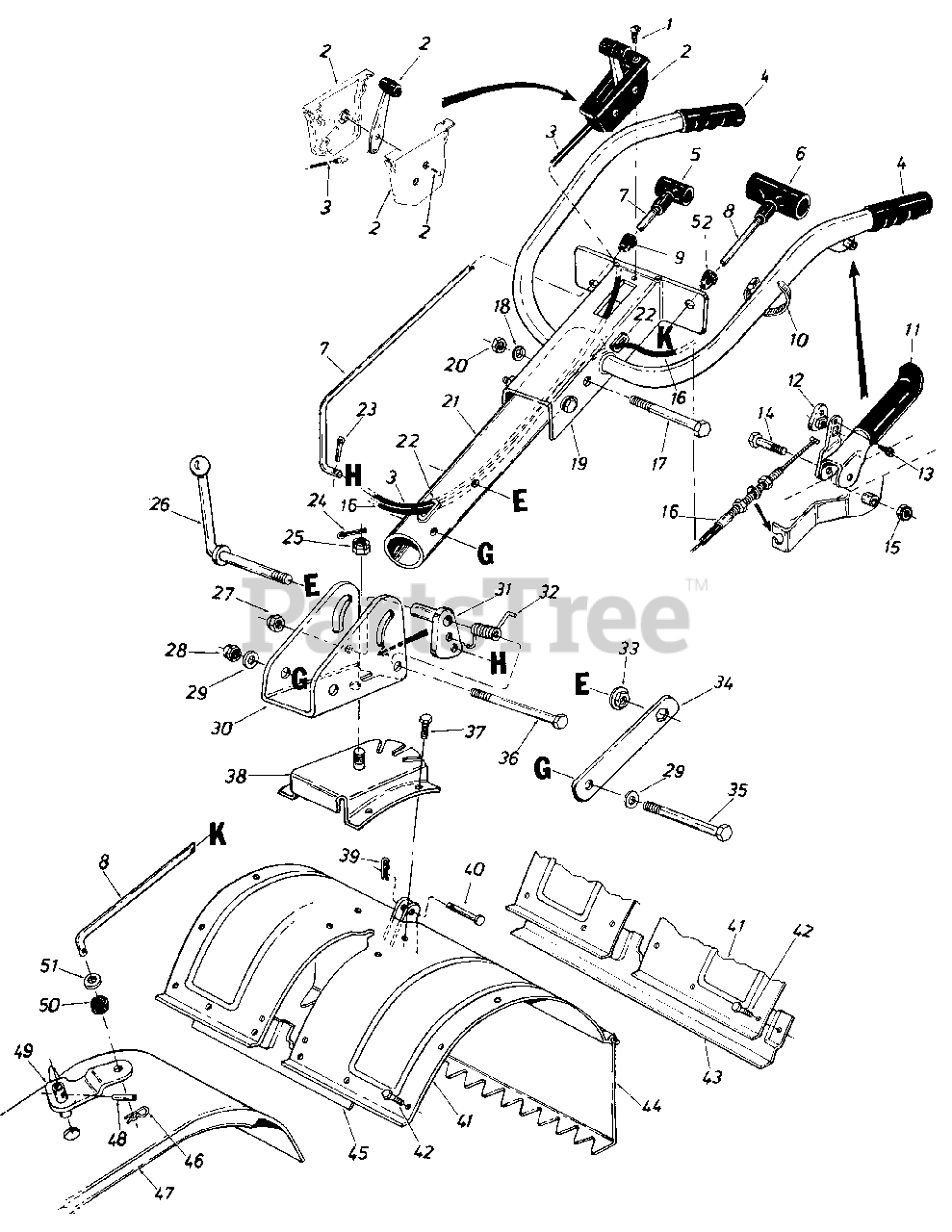

216-420-000 - MTD Tiller (1986) Parts Parts Diagram

Tiller

Parts Parts Diagram

  • Title

1

MTD 710-0779

Truss Mach. AB-Tap. Scr. #10 x .50" Lg.
(Superseded to 710-0779A)

$4.49

$

In Stock, Qty 12

0

2

MTD 831-0823

Throttle Control Box Ass'y.
(Superseded to 831-0823A)

$32.99

$

In Stock, Qty 20+

0

3

MTD 746-0513

Throttle Control Wire
(Superseded to 946-0513B)

Note: (430)

$19.99

$

In Stock, only 3 left!

0

MTD 746-0514

Throttle Control Wire

Note: (420)

$

$

Not available

4

MTD 720-0180

Handle Grip
(Superseded to 720-04083)

$14.99

$

In Stock, only 2 left!

0

5

MTD 720-0210

Small "T" Knob
(Superseded to 720-0210A)

$15.99

$

In Stock, only 2 left!

0

6

MTD 720-0209

Large "T" Knob

$21.99

$

In Stock, only 2 left!

0

7

MTD 747-0666

Clutch Rod

$25.99

$

Usually ships in 3-6 days

0

8

MTD 747-0664

Control Rod .33 Dia. x 37" Lg.

$23.99

$

Usually ships in 3-6 days

0

9

MTD 735-0228

Snap On Bushing 3/8" Dia.

$

$

Not available

10

MTD 725-0157

Cable Tie-Self Clinching

$3.99

$

In Stock, Qty 20+

0

11

MTD 784-0202

Clutch Grip Ass'y.-L.H.
(Superseded to 684-04399A-0637)

$33.99

$

In Stock, only 4 left!

0

12

MTD 746-0605

Barrel Cable Hold Down
(Superseded to 946-0605)

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0919

Hex B-Tap Scr. #10 x .44" Lg.

$4.99

$

In Stock, Qty 8

0

14

MTD 710-0427

Hex Bolt 3/8-16 x 2.0" Lg.
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

15

MTD 712-0266

Hex Cent. L-Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 11

0

16

MTD 746-0612

Clutch Control Cable 53" Lg.
(Superseded to 946-0612)

$71.99

$

In Stock, only 3 left!

0

17

MTD 710-0194

Hex Bolt 3/8-16 x 3.00" Lg.

$

$

Not available

18

MTD 736-0217

L-Wash. 3/8" I.D.-H.D.

$4.49

$

In Stock, Qty 8

0

19

MTD 784-0185

Handle Ass'y.
(Superseded to 649-0030-0638)

Variations

MTD 784-0185-0638

HANDLE ASM W/THROTTLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-0185-0665

HANDLE ASM W/THROTTLE - YARDMAN GREEN (0665)

$

$

Not available

$

$

20

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 12

0

21

MTD 784-0189

Handle Tubing Ass'y.

Variations

MTD 784-0189-0480

TUBING ASSY HANDLE - BRILLIANT GREEN (0480)

$

$

Not available

MTD 784-0189-0498

TUBE ASM-HNDL - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0189-0637

TUBE ASM-HNDL - POWDER BLACK (0637)

$

$

Not available

MTD 784-0189-0638

TUBE ASM-HNDL - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-0189-0648

TUBE ASM-HNDL - TECH GRAY (0648)

$

$

Not available

MTD 784-0189-0650

TUBE ASM-HNDL - RED METALLIC (0650)

$

$

Not available

MTD 784-0189-0662

TUBE ASM-HNDL - OYSTER GRAY (0662)

$

$

Not available

MTD 784-0189-0665

TUBE ASM-HNDL - YARDMAN GREEN (0665)

$

$

Not available

MTD 784-0189-0691

TUBE ASM-HNDL - BLACK JACK (0691)

$

$

Not available

MTD 784-0189-4015

TUBING ASSY HANDLE - FIRE RED (4015)

$

$

Not available

$

$

22

MTD 735-0226

Rubber Grommet .66" I.D. x 1.1/2" O.D.

$10.99

$

Usually ships in 3-6 days

0

23

MTD 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, Qty 12

0

24

MTD 714-0111

Cotter Pin 3/32 Dia. x 1.25" Lg.

$4.99

$

In Stock, Qty 13

0

25

MTD 712-0386

Hex Slotted Nut 5/8-18 Thd.
(Superseded to 712-0386A)

$7.99

$

Usually ships in 3-6 days

0

26

MTD 784-0190

Handle Adj. Crank

$24.99

$

Usually ships in 3-6 days

0

27

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

28

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 12

0

29

MTD 736-0105

Bell-Wash. .400" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

30

MTD 784-0182

Handle Pivot Bracket
(Superseded to 684-0263A-0637)

$

$

Not available

31

MTD 784-0183

Positioner Crank Ass'y.

$

$

Not available

32

MTD 732-0493

Spring Handle Adj.

Note: (Torsion)

$16.99

$

Usually ships in 3-6 days

0

33

MTD 712-0379

Hex Flange Nut 3/8-24 Thd.

$4.99

$

Usually ships in 3-6 days

0

34

MTD 784-0191

Bracket Hex Nut Retainer

$7.49

$

Usually ships in 3-6 days

0

35

MTD 710-0644

Hex Bolt 3/8-16 x 3.25' Lg.
(Superseded to 710-3130)

$10.99

$

In Stock, only 1 left!

0

36

MTD 710-0521

Hex Bolt 3/8-16 x 3.00" Lg.- Gr. 8

$5.49

$

In Stock, Qty 11

0

37

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

38

MTD 784-0181

Handle Positioner Brkt. Ass'y.
(Superseded to 686-0071)

$

$

Not available

39

MTD 714-0145

Intern. Cotter Pin

$4.99

$

In Stock, Qty 20+

0

40

MTD 711-0415

Clevis Pin .375" Dia.

$4.99

$

In Stock, Qty 20+

0

41

MTD 784-0156

Tine Shield 18"

Note: (430)

Variations

MTD 784-0156-0483

No Longer Available SHIELD-TIN - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-0156-0498

No Longer Available SHIELD-TIN - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0156-0499

No Longer Available SHIELD-TIN - CUB BEIGE (0499)

$

$

Not available

MTD 784-0156-0637

No Longer Available SHIELD-TIN - POWDER BLACK (0637)

$

$

Not available

MTD 784-0156-0638

No Longer Available SHIELD-TIN - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-0156-0662

No Longer Available SHIELD-TIN - OYSTER GRAY (0662)

$

$

Not available

MTD 784-0156-0665

No Longer Available SHIELD-TIN - YARDMAN GREEN (0665)

$

$

Not available

$

$

MTD 784-0157

Tine Shield 14"

Note: (420)

$

$

Currently unavailable

42

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

43

MTD 784-0210

Bracket Reinforcement- 18"

Note: (430)

$

$

Not available

44

MTD 14979

Tine Shield Hinge Flap
(Superseded to 786-0113)

Variations

MTD 14979-0498

Rear Tine Shield - OLD CUB YELLOW (0498)

$90.99

$

In Stock, only 4 left!

0

MTD 14979-0638

SHIELD-REAR TINE - MTD/TROY-BILT RED (0638)

$90.99

$

Usually ships in 3-6 days

0

MTD 14979-0483

USE 786-0113A SHIELD-REAR TIN - CHARCOAL GRAY (0483)

$73.99

$

Usually ships in 3-6 days

0

MTD 14979-0637

USE 786-0113A SHIELD-REAR TIN - POWDER BLACK (0637)

$73.99

$

Usually ships in 3-6 days

0

MTD 14979-0665

SHIELD-REAR TINE - YARDMAN GREEN (0665)

$73.99

$

Usually ships in 3-6 days

0

MTD 14979-0606

No Longer Available SHIELD - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 14979-0662

No Longer Available SHIELD - OYSTER GRAY (0662)

$

$

Not available

$68.99

$

Usually ships in 3-6 days

0

45

MTD 784-0209

Bracket Reinforcement-14"

Note: (420)

$

$

Currently unavailable

46

MTD 714-0104

Intern. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

47

MTD 784-0208

Shift Cover

$

$

Not available

48

MTD 715-0120

Spring Roll Pin 3/16" Dia. x 1.00" Lg.

$10.99

$

In Stock, only 1 left!

0

49

MTD 784-0173

Shifting Crank Ass'y. D x 2.05

$

$

Not available

50

MTD 735-0127

Rubber Washer .33" I.D. x .87" O.D.

$6.99

$

Usually ships in 3-6 days

0

51

MTD 736-0133

Fl-Wash. .400" I.D. x 1.250" O.D.

$5.49

$

In Stock, Qty 7

0

52

MTD 735-0227

Snap On Bushing 1/2" Dia.

$

$

Not available
