216-406-062 - MTD Tiller (1986) (Lowes) Parts With Reverse Drive Parts Diagram

Tiller

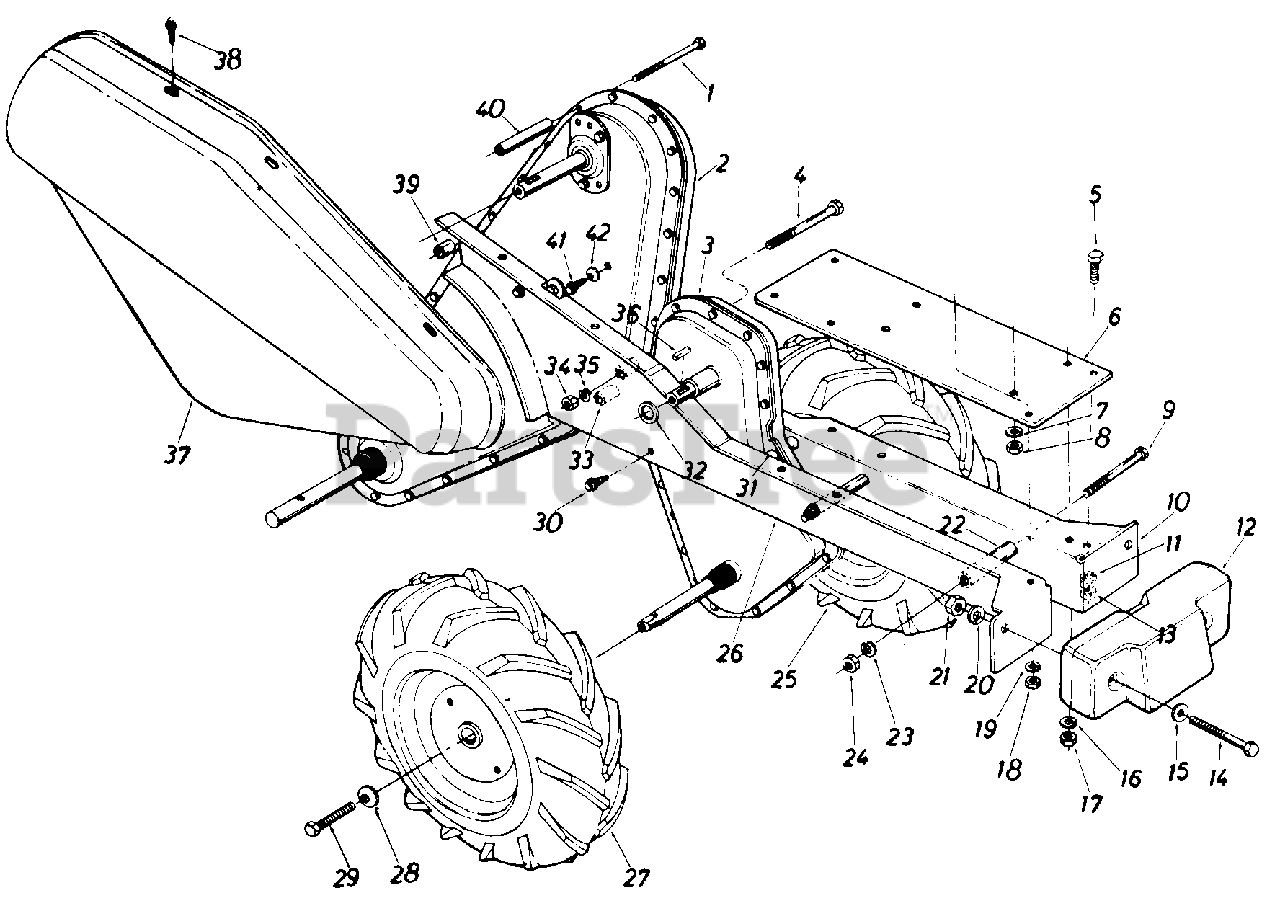

Parts With Reverse Drive Parts Diagram

  • Title

1

MTD 710-0189

Hex Bolt 5/16-18 x 3.00" Lg.

$6.49

$

In Stock, Qty 5

0

2

MTD 784-0106

Chain Case Ass'y. Comp.-Tines

$

$

Not available

3

MTD 784-0104

Chain Case Ass'y. Comp.-Wheels

Note: (406)

$

$

Currently unavailable

MTD 784-0105

Chain Case Ass'y. Comp.-Wheels

Note: (403)

$

$

Currently unavailable

4

MTD 710-0189

Hex Bolt 5/16-18 x 3.00" Lg.

$6.49

$

In Stock, Qty 5

0

5

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

6

MTD 14973

Engine Mounting Plate

Variations

MTD 14973-0637

No Longer Available PLATE-MTG- - POWDER BLACK (0637)

$

$

Not available

$

$

7

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

8

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0830

Hex Bolt 3/8-24 x 3.00" Lg.

$

$

Not available

10

MTD 14975

Frame Rail-L.H.

Variations

MTD 14975-0637

No Longer Available RAIL-FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

11

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

MTD 723-0340

Weight 35#

$

$

Not available

13

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-0786

Hex Bolt 1/2-13 x 4.00" Lg.

$16.99

$

Usually ships in 3-6 days

0

15

MTD 736-0326

Fl-Wash. .510" I.D. x 1.0" O.D.

$4.49

$

In Stock, only 4 left!

0

16

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

17

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

18

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

19

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

20

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 6

0

21

MTD 712-0206

Hex Nut 1/2-13 Thd.*

$4.49

$

In Stock, Qty 20+

0

22

MTD 750-0579

Spacer .38" I.D. x .62" O.D. x 2.18" Lg.

$

$

Currently unavailable

23

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

24

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

25

MTD 734-1255

Wheel Ass'y. Comp. 12.5 x 3.5-L.H.

$

$

Currently unavailable

26

MTD 14974

Frame Rail-R.H.

Variations

MTD 14974-0637

No Longer Available RAIL-FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

27

MTD 734-1254

Wheel Ass'y Comp. 12.5 x 3.5-R. H.

$

$

Currently unavailable

28

MTD 736-0242

Belleville Wash. .345" I.D. x.88" O.D.

$4.49

$

In Stock, Qty 20+

0

29

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

30

MTD 710-0600

Hex Wash. Hd. SF-Tap Scr. 5/16-24 x 50" Lg.

$3.49

$

Usually ships in 3-6 days

0

31

MTD 750-0470

Spacer .326" I.D. x .47" O.D. x .96" Lg.

$6.99

$

Usually ships in 3-6 days

0

32

MTD 736-0256

Fl-Wash. .635" I.D. x 1.00" O.D.
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

33

MTD 750-0470

Spacer .326" I.D. x .47" O.D. x .96" Lg.

$6.99

$

Usually ships in 3-6 days

0

34

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

35

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

36

MTD 714-0122

Sq. Key 3/16 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

37

MTD 14980

Belt Cover

$

$

Not available

38

MTD 710-0599

Hex Wash. Hd. SF-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

39

MTD 750-0470

Spacer .326" I.D. x .47" O.D. x .96" Lg.

$6.99

$

Usually ships in 3-6 days

0

40

MTD 750-0219

Spacer .375" I.D. x .500" O.D. x 2.00" Lg.

$

$

Currently unavailable

41

MTD 710-0599

Hex Wash. Hd. SF-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

42

MTD 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0
