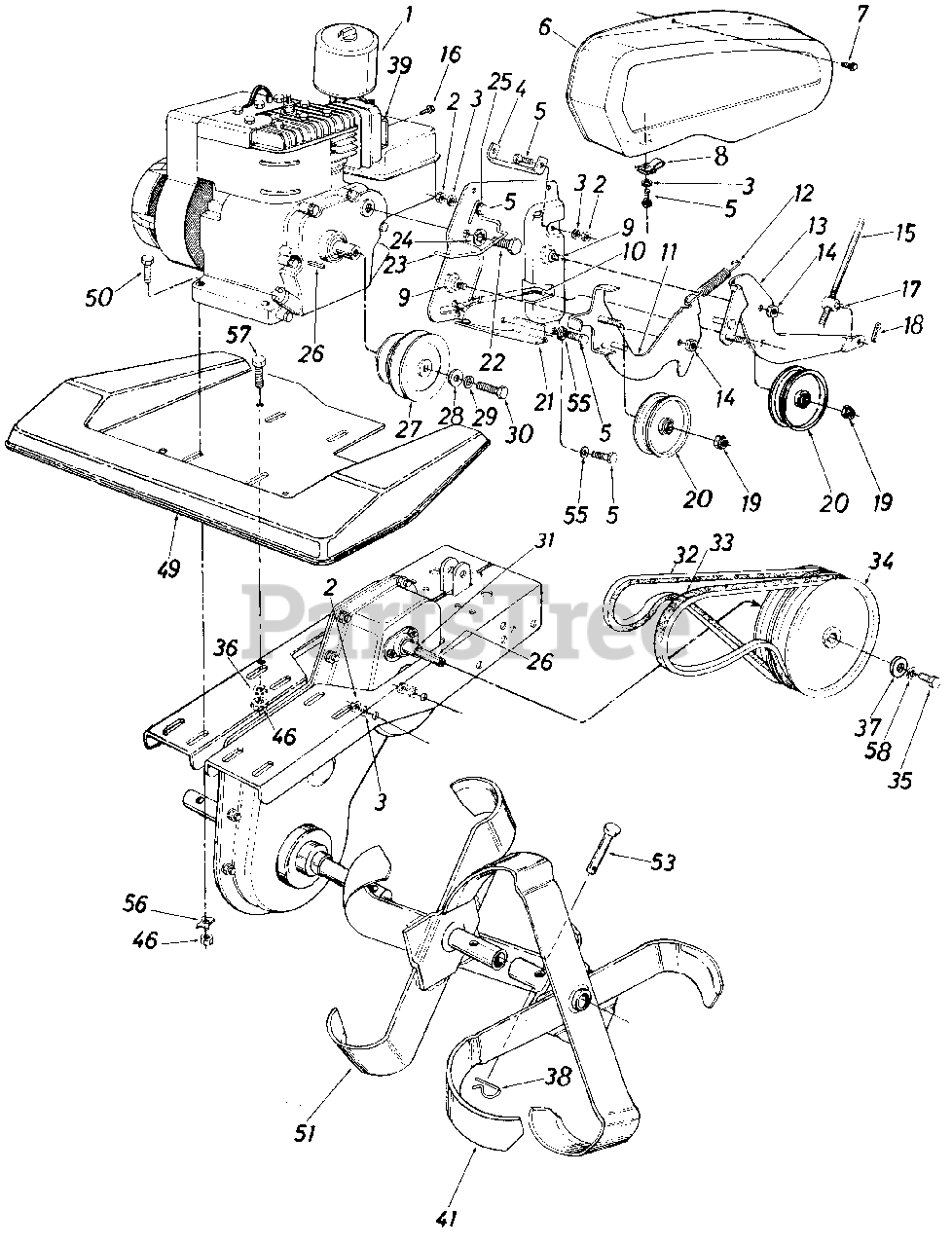

216-381-205 - Garden King Tiller (1986) Parts Parts Diagram

Tiller

Parts Parts Diagram

  • Title

1

Engine

$

$

Not available

2

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

3

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

4

MTD 06801

Support Bracket

$

$

Currently unavailable

5

MTD 710-0252

Hex Bolt 1/4-20 x .75" Lg.
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

6

MTD 06796

Belt Guard

Variations

MTD 06796-0637

No Longer Available GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

$

$

7

MTD 710-0599

Thread Rolling Scr. 1/4-20 x.50" Lg.

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-0185

"U"-Type Speed Nut

$

$

Not available

9

MTD 738-0281

Shoulder Bolt .625" Dia. x .170" Lg.

$10.99

$

In Stock, only 1 left!

0

10

MTD 747-0180

Control Rod

$

$

Currently unavailable

11

MTD 06786

Reverse Idler Brkt. Ass'y.

$

$

Currently unavailable

12

MTD 732-0433

Spring-Idler Brkt.

$

$

Not available

13

MTD 06784

Forward Idler Brkt. Ass'y.

$

$

Currently unavailable

14

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

15

MTD 747-0183

Clutch Control Rod

$

$

Currently unavailable

16

MTD 710-0783

Hex Self-Tap Scr. #8-32 x.38" Lg.

$

$

Not available

17

MTD 711-0392

Ferrule

$13.99

$

Usually ships in 3-6 days

0

18

MTD 714-0145

Inter. Cotter Pin

$4.99

$

In Stock, Qty 20+

0

19

MTD 712-0262

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

20

MTD 756-0225

Fl-Idler w/Flanges 3.12 O.D. x .75

$

$

Not available

21

MTD 06803

Clutch Mounting Plate

$

$

Currently unavailable

22

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

23

MTD 747-0181

Belt Guard Rod

$

$

Currently unavailable

24

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

25

MTD 736-0463

Fl-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 12

0

26

MTD 714-0133

Sq. Key 3/16" x 1.50" Lg.

$4.99

$

In Stock, Qty 12

0

27

MTD 756-0261

Engine Pulley

$

$

Currently unavailable

28

MTD 736-0258

Fl-Wash. 3/8" I.D. x 1.00"

$4.49

$

Usually ships in 3-6 days

0

29

MTD 736-0169

L-Wash 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

30

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.*

$4.99

$

In Stock, Qty 9

0

31

MTD 750-0229

Spacer .635 I.D. x .88 O.D. x 1.035 Lg.
(Superseded to 950-0229)

$

$

Not available

32

MTD 754-0201

"V"-Belt 1/2" x 41" Lg. Reverse
(Superseded to 954-0201)

$35.99

$

In Stock, only 1 left!

0

33

MTD 754-0154

"V"-Belt 1/2" x 37" Lg. Forward
(Superseded to 954-0154)

$38.99

$

In Stock, only 2 left!

0

34

MTD 756-0262

Chain Case Pulley 6.0" Dia.

$

$

Currently unavailable

35

MTD 710-0643

Hex Bolt 5/16-18 x 1.0" Lg.

$6.99

$

In Stock, Qty 5

0

36

MTD 736-0170

Shake-Proof Wash.

$5.99

$

Usually ships in 3-6 days

0

37

MTD 736-0231

Fl-Wash. 5/16" I.D. x 1.120

$4.99

$

In Stock, Qty 20+

0

38

MTD 714-0149

Internal Cotter Pin 1/2" Dia.
(Superseded to 914-0149B)

$

$

Not available

39

MTD 751-0233

Deflector
(Superseded to BS-796956)

$10.99

$

In Stock, only 1 left!

0

41

See Tine Chart Below

$

$

Not available

MTD 784-0092

Inner Tine Ass'y. Comp.-R.H.

Variations

MTD 784-0092-0637

Inner Tine Ass'y. Comp. - R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 784-0094

Outer Tine Ass'y. Comp.-R.H.
(Superseded to 784-0094-0637)

Variations

MTD 784-0094-0637

Outer Tine Ass'y. Comp. - R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 784-0091

Inner Tine Ass'y. Comp.-L.H.

Variations

MTD 784-0091-0637

Inner Tine Ass'y. Comp. - L.H. - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 784-0093

Outer Tine Ass'y. Comp.-L.H.

Variations

MTD 784-0093-0637

No Longer Available TINE ASM- - POWDER BLACK (0637)

$

$

Not available

$

$

46

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

49

MTD 04598

Tine Shield

Variations

MTD 04598-0638

No Longer Available SHIELD-TIN - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 04598-0662

No Longer Available SHIELD-TIN - OYSTER GRAY (0662)

$

$

Not available

$

$

50

MTD 710-0442

Hex Bolt 5/16-18 x 1.50" Lg.
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

51

See Tine Chart Below

$

$

Not available

MTD 784-0092

Inner Tine Ass'y. Comp.-R.H.

Variations

MTD 784-0092-0637

Inner Tine Ass'y. Comp. - R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 784-0094

Outer Tine Ass'y. Comp.-R.H.
(Superseded to 784-0094-0637)

Variations

MTD 784-0094-0637

Outer Tine Ass'y. Comp. - R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 784-0091

Inner Tine Ass'y. Comp.-L.H.

Variations

MTD 784-0091-0637

Inner Tine Ass'y. Comp. - L.H. - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 784-0093

Outer Tine Ass'y. Comp.-L.H.

Variations

MTD 784-0093-0637

No Longer Available TINE ASM- - POWDER BLACK (0637)

$

$

Not available

$

$

53

MTD 1545-029

Clevis Pin
(Superseded to 711-0679A)

$14.99

$

In Stock, only 2 left!

0

55

MTD 736-0175

Bell-Wash.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

56

MTD 736-0170

Shake-Proof Wash.

$5.99

$

Usually ships in 3-6 days

0

57

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

58

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0
