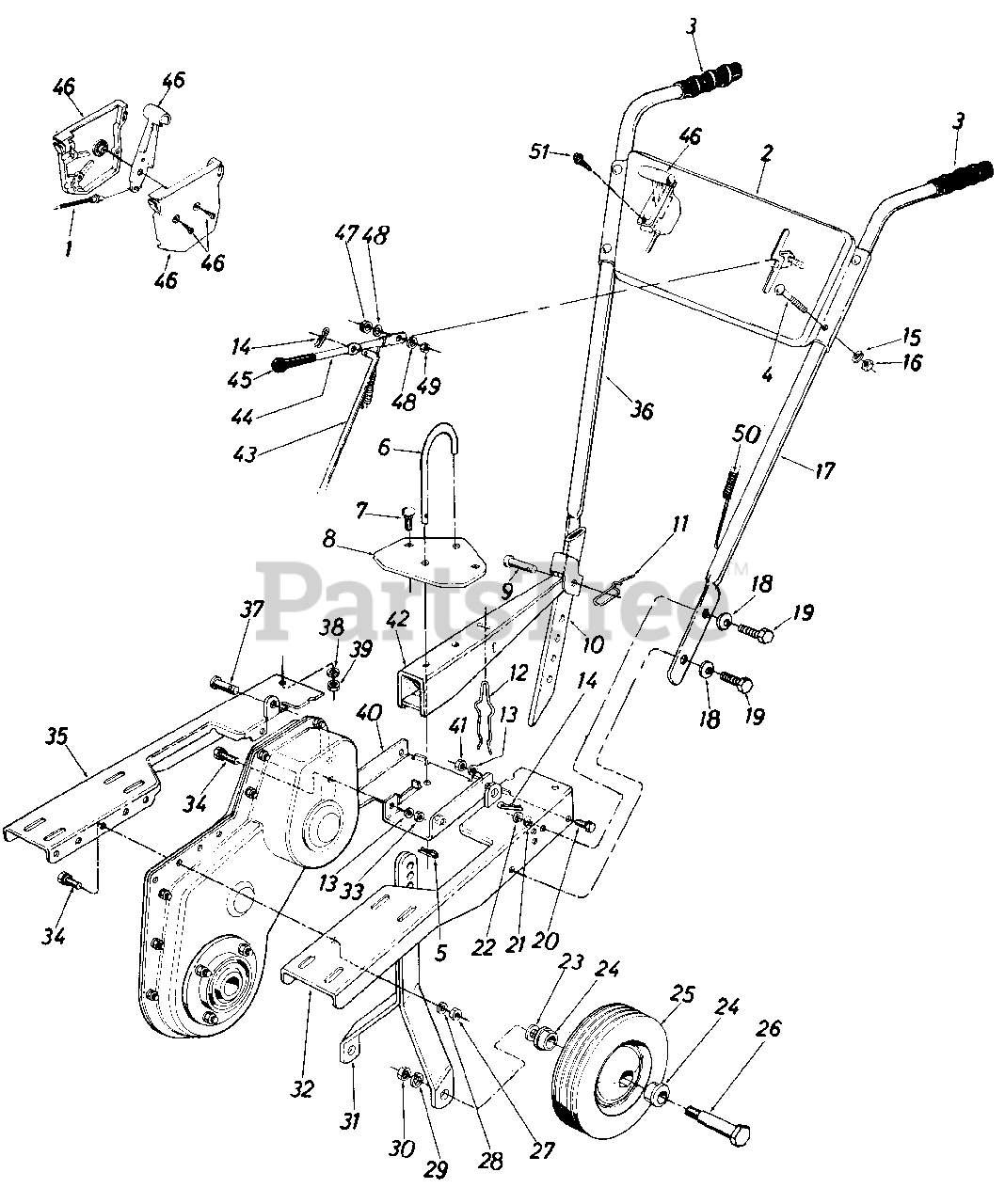

216-381-205 - Garden King Tiller (1986) Parts Parts Diagram

Tiller

Parts Parts Diagram

  • Title
1

MTD 746-0503

Throttle Control Wire-35"
(Superseded to 946-0503)

$

$

Not available

2

MTD 784-0034

Handle Panel Ass'y.

$

$

Currently unavailable

3

MTD 720-0180

Handle Grip
(Superseded to 720-04083)

$14.99

$

In Stock, only 2 left!

0

4

MTD 710-0458

Carriage Bolt 5/16-18 x 1.75" Lg.*

$4.49

$

In Stock, only 4 left!

0

5

MTD 714-0149

Internal Cotter Pin
(Superseded to 914-0149B)

$

$

Not available

6

MTD 04602

"U"-Clevis Pin .500" Dia.

$

$

Not available

7

MTD 710-0451

Carriage Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

8

MTD 04586

"U"-Channel Plate

$

$

Currently unavailable

9

MTD 711-0231

Clevis Pin .500" Dia.
(Superseded to 911-0231)

$6.49

$

In Stock, only 3 left!

0

10

MTD 04668

Depth Bar

$

$

Not available

11

MTD 732-0194

Spring Pin

$4.99

$

In Stock, Qty 12

0

12

MTD 732-0290

Depth Bar Spring

$

$

Not available

13

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

MTD 714-0145

Internal Cotter Pin

$4.99

$

In Stock, Qty 20+

0

15

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

MTD 749-0502

Handle-L.H.

$

$

Not available

18

MTD 736-0105

Belleville Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-0253

Hex Bolt 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

20

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

21

MTD 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

22

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

23

MTD 736-0253

Belleville Wash. .505 I.D. x 1.00" O.D.

$3.99

$

In Stock, Qty 20+

0

24

MTD 741-0116

Fl. Bearing w/Flats .631 I.D.

$

$

Not available

25

MTD 734-0584

Wheel Ass'y. Comp. 10 x 1.75
(Superseded to 753-04874)

$58.99

$

In Stock, only 1 left!

0

26

MTD 738-0318

Shoulder Bolt .625" Dia. x 2.75" Lg.

$

$

Not available

27

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

28

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

29

MTD 736-0921

L-Wash. 1/2" I.D.

$4.49

$

In Stock, Qty 6

0

30

MTD 712-0200

Hex Ins. L-Nut 1/2-20 Thd.
(Superseded to 712-0200A)

$4.49

$

In Stock, only 1 left!

0

31

MTD 06813

Wheel Bracket Ass'y.

$

$

Not available

32

MTD 06792

Engine"U"-Channel Ass'y.-L.H.

$

$

Currently unavailable

33

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

34

MTD 710-0322

Hex Sems Bolt 5/16-18 x 1.00" Lg.

$

$

Not available

35

MTD 06794

Engine"U"-Channel Ass'y.-R.H.

$

$

Not available

36

MTD 749-0356

Handle-R.H.

$

$

Currently unavailable

37

MTD 711-0599

Clevis Pin
(Superseded to 711-0679A)

$14.99

$

In Stock, only 2 left!

0

38

MTD 736-0119

L-Wash. 5/16 I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

40

MTD 06816

"U"-Channel Bracket Ass'y.

$

$

Currently unavailable

41

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

42

MTD 04589

Tailpiece Ass'y.

$

$

Not available

43

MTD 747-0183

Control Rod

$

$

Currently unavailable

44

MTD 747-0182

Clutch Lever

$

$

Not available

45

$

$

Not available

46

MTD 831-0692

Throttle Control Box Ass'y.
(Superseded to 831-0796A)

$21.99

$

Usually ships in 3-6 days

0

47

MTD 735-0126

Rubber Wash.
(Superseded to 735-0126A)

$

$

Not available

48

MTD 736-0159

Fl-Wash. .344" I.D. x.880 O.D. x .06

$4.49

$

In Stock, Qty 20+

0

49

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

50

MTD 732-0191

Extension Spring .75 O.D. x 11.0" Lg.

$

$

Not available

51

MTD 710-0779

Self-Tap Scr. #10 x 1/2" Lg.
(Superseded to 710-0779A)

$4.49

$

In Stock, Qty 12

0
