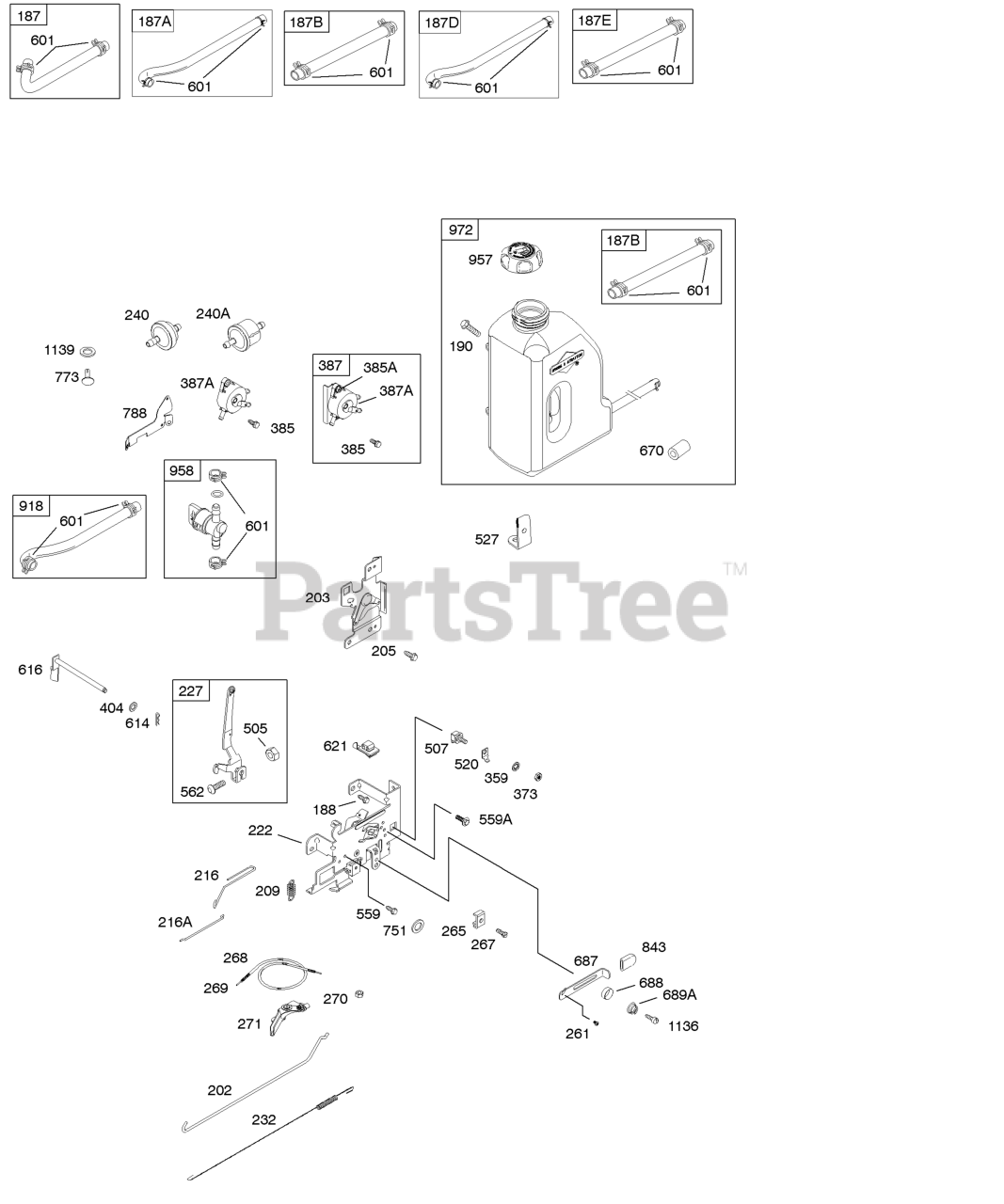

215705-0119-B1 - Briggs & Stratton Vertical Engine Controls, Fuel Supply, Governor Spring Parts Diagram

Vertical Engine

Controls, Fuel Supply, Governor Spring Parts Diagram

  • Title

187E

Briggs & Stratton 792916

Line-Fuel

Note: (Cut To Required Length)

$22.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 691693

SCREW

Note: (Control Bracket)

$3.99

$

In Stock, Qty 12

0

190

Briggs & Stratton 796174

SCREW

Note: (Fuel Tank)

$8.99

$

Usually ships in 2-12 days

0

202

Briggs & Stratton 691841

LINK, Mechanical Governor

$9.49

$

In Stock, Qty 17

0

205

Briggs & Stratton 691693

SCREW

Note: (Bell Crank)

$3.99

$

In Stock, Qty 12

0

209

Briggs & Stratton 792602

SPRING, Governor

$3.49

$

In Stock, only 2 left!

0

216

Briggs & Stratton 691840

LINK, Choke

$8.99

$

In Stock, Qty 20+

0

222

Briggs & Stratton 694042

Bracket-Control
(Superseded to 597209)

$38.99

$

In Stock, Qty 20+

0

227

Briggs & Stratton 694339

LEVER, Governor Control

$16.99

$

Usually ships in 2-12 days

0

232

Briggs & Stratton 691842

SPRING, Governor Link

$11.99

$

In Stock, Qty 20+

0

240A

Briggs & Stratton 691035

FILTER, Fuel
(Superseded to 84001895)

Note: (Clear, 40 Microns)

$7.99

$

In Stock, Qty 20+

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 794904

SCREW

Note: (Casing Clamp)

$3.49

$

Usually ships in 2-12 days

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

359

Briggs & Stratton 691077

Washer

Note: (Ground Terminal) (Ground Terminal)

$3.49

$

In Stock, only 2 left!

0

373

Briggs & Stratton 691612

NUT

Note: (Ground Terminal) (Ground Terminal)

$3.49

$

In Stock, only 1 left!

0

385

Briggs & Stratton 694476

Screw

Note: (Fuel Pump)

$3.99

$

In Stock, only 1 left!

0

385A

Briggs & Stratton 690297

Screw

Note: (Fuel Pump)

$3.49

$

In Stock, Qty 12

0

387

Briggs & Stratton 697090

Pump-Fuel

Note: (Includes Mounting Bracket) Used Before Code Date 08073000

$

$

Not available

387A

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

Note: Used After Code Date 08072900

$27.99

$

In Stock, Qty 20+

0

404

Briggs & Stratton 691691

WASHER

Note: (Governor Crank)

$3.99

$

In Stock, Qty 5

0

505

Briggs & Stratton 691251

NUT

Note: (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

507

Briggs & Stratton 691972

Insulator

$8.49

$

In Stock, only 2 left!

0

520

Briggs & Stratton 691084

Terminal-Ground

$6.49

$

In Stock, only 1 left!

0

562

Briggs & Stratton 691119

BOLT

Note: (Governor Control Lever)

$4.49

$

In Stock, Qty 17

0

601

Briggs & Stratton 691038

CLAMP, Hose

Note: (Black)

$3.99

$

In Stock, Qty 17

0

601

Briggs & Stratton 791850

CLAMP, Hose

Note: (Green)

$3.49

$

In Stock, Qty 20+

0

614

Briggs & Stratton 691620

PIN, Cotter

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 692012

CRANK, Governor

$13.99

$

In Stock, only 2 left!

0

670

Briggs & Stratton 796175

SPACER, Fuel Tank

$6.49

$

Usually ships in 2-12 days

0

751

Briggs & Stratton 691077

Washer

Note: (Stop Wire)

$3.49

$

In Stock, only 2 left!

0

773

Briggs & Stratton 796448

RETAINER

$4.99

$

In Stock, only 3 left!

0

788

Briggs & Stratton 699347

Bracket-Fuel Pump

Note: Used Before Code Date 08073000

$24.99

$

Usually ships in 2-12 days

0

957

Briggs & Stratton 795027

Cap-Fuel Tank

Note: (Plastic)

$10.99

$

In Stock, Qty 20+

0

1136

Briggs & Stratton 690278

Screw

Note: (Control Bracket) (High Speed Control)

$3.99

$

In Stock, only 1 left!

0

1139

Briggs & Stratton 796449

WASHER

Note: (Fuel Pump Bracket)

$4.49

$

Usually ships in 2-12 days

0
