215705-0119-B1 - Briggs & Stratton Vertical Engine Alternator, Electric Starter, Ignition, Rewind Starter Parts Diagram

Vertical Engine

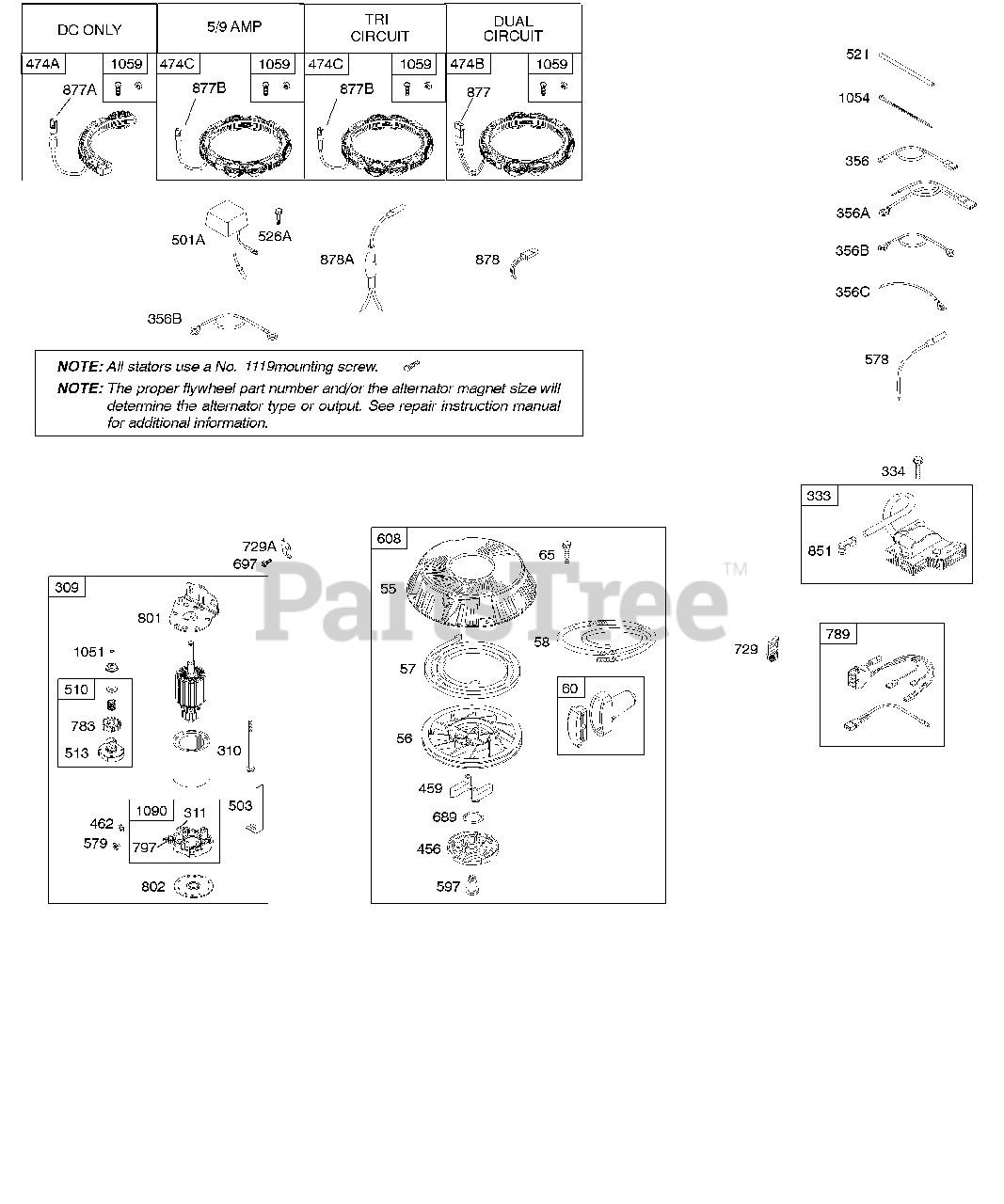

Alternator, Electric Starter, Ignition, Rewind Starter Parts Diagram

  • Title

55

Briggs & Stratton 695130

Housing-Rewind Starter

$

$

Not available

56

Briggs & Stratton 695129

PULLEY, Starter

$29.99

$

In Stock, Qty 9

0

57

Briggs & Stratton 695131

SPRING, Rewind Starter

$17.99

$

In Stock, only 2 left!

0

58

Briggs & Stratton 695132

ROPE, Starter

$8.49

$

In Stock, only 1 left!

0

60

Briggs & Stratton 493926

Grip-Starter Rope

$

$

Not available

65

Briggs & Stratton 697725

SCREW

Note: (Rewind Starter) Used Before Code Date 07040900

$4.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 690759

Screw
(Superseded to 690837)

Note: (Rewind Starter) Used After Code Date 07040800

$3.49

$

In Stock, Qty 20+

0

309

Briggs & Stratton 693551

Motor-Starter
(Superseded to 593934)

$131.99

$

In Stock, Qty 20+

0

310

Briggs & Stratton 690323

BOLT

Note: (Starter Motor)

$4.49

$

In Stock, Qty 7

0

311

Briggs & Stratton 497608

Brush Set

$27.99

$

In Stock, only 3 left!

0

333

Briggs & Stratton 795315

Armature-Magneto
(Superseded to 595304)

$45.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 792910

Wire-Stop

$24.99

$

In Stock, only 1 left!

0

456

Briggs & Stratton 695128

PLATE, Pawl Friction

$12.99

$

In Stock, Qty 19

0

459

Briggs & Stratton 281505S

PAWL, Ratchet

$3.49

$

In Stock, Qty 20+

0

462

Briggs & Stratton 691261

WASHER

Note: (Starter Cable)

$3.99

$

In Stock, only 3 left!

0

474A

Briggs & Stratton 696578

Alternator
(Superseded to 592828)

Note: (DC Only)

$124.99

$

Usually ships in 2-12 days

0

474B

Briggs & Stratton 696459

Alternator
(Superseded to 592831)

Note: (Dual Circuit)

$101.99

$

In Stock, Qty 8

0

474C

Briggs & Stratton 696457

Alternator
(Superseded to 592829)

Note: (Tri Circuit Or 5/9 Amp. Regulated)

$102.99

$

Usually ships in 2-12 days

0

501A

Briggs & Stratton 794360

REGULATOR

$64.99

$

In Stock, only 3 left!

0

503

Briggs & Stratton 691532

STRAP, Starter

$6.49

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 693699

DRIVE, Starter
(Superseded to 593934)

$131.99

$

In Stock, Qty 20+

0

513

Briggs & Stratton 692024

CLUTCH, Drive

$21.99

$

In Stock, only 3 left!

0

521

Briggs & Stratton 690581

Shield-Cable

$12.99

$

Usually ships in 2-12 days

0

579

Briggs & Stratton 691029

NUT

Note: (Starter Cable)

$5.49

$

Usually ships in 2-12 days

0

597

Briggs & Stratton 691696

Screw

Note: (Pawl Friction Plate)

$11.99

$

In Stock, Qty 6

0

608

Briggs & Stratton 695058

Starter-Rewind
(Superseded to 591606)

$95.99

$

In Stock, Qty 20+

0

689

Briggs & Stratton 691855

SPRING, Friction

$4.49

$

In Stock, only 3 left!

0

697

Briggs & Stratton 690372

Screw
(Superseded to 791680)

Note: (Drive Cap)

$3.99

$

In Stock, Qty 6

0

729

Briggs & Stratton 691335

Clip-Wire

$4.99

$

Usually ships in 2-12 days

0

729A

Briggs & Stratton 691224

CLIP, Wire

$4.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 693713

Gear-Pinion
(Superseded to 593935)

$26.99

$

Usually ships in 2-12 days

0

797

Briggs & Stratton 693167

NUT

Note: (Brush Retainer)

$4.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 691283

CAP, Drive

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 691286

CAP, End

$26.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 692424

Terminal-Spark Plug

$5.99

$

In Stock, Qty 13

0

877

Briggs & Stratton 393456

WIRE/CONNECTOR, Alternator

$20.99

$

In Stock, only 1 left!

0

877A

Briggs & Stratton 393814

Wire/Connector-Alternator

$18.99

$

In Stock, only 2 left!

0

877B

Briggs & Stratton 393537

Wire/Connector-Alternator

$

$

Not available

878

Briggs & Stratton 398661

Harness-Alternator

$34.99

$

Usually ships in 2-12 days

0

878A

Briggs & Stratton 691955

Harness-Alternator

$69.99

$

Usually ships in 2-12 days

0

1051

Briggs & Stratton 691265

RING, Retaining

$5.49

$

In Stock, Qty 7

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

$5.49

$

Usually ships in 2-12 days

0

1090

Briggs & Stratton 691293

RETAINER, Brush

$29.99

$

In Stock, Qty 6

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.49

$

Usually ships in 2-12 days

0
