21564 - Toro 21" Super Recycler Walk-Behind Mower (SN: 411860000 - 412999999) Housing Assembly Parts Diagram

21" Super Recycler Walk-Behind Mower

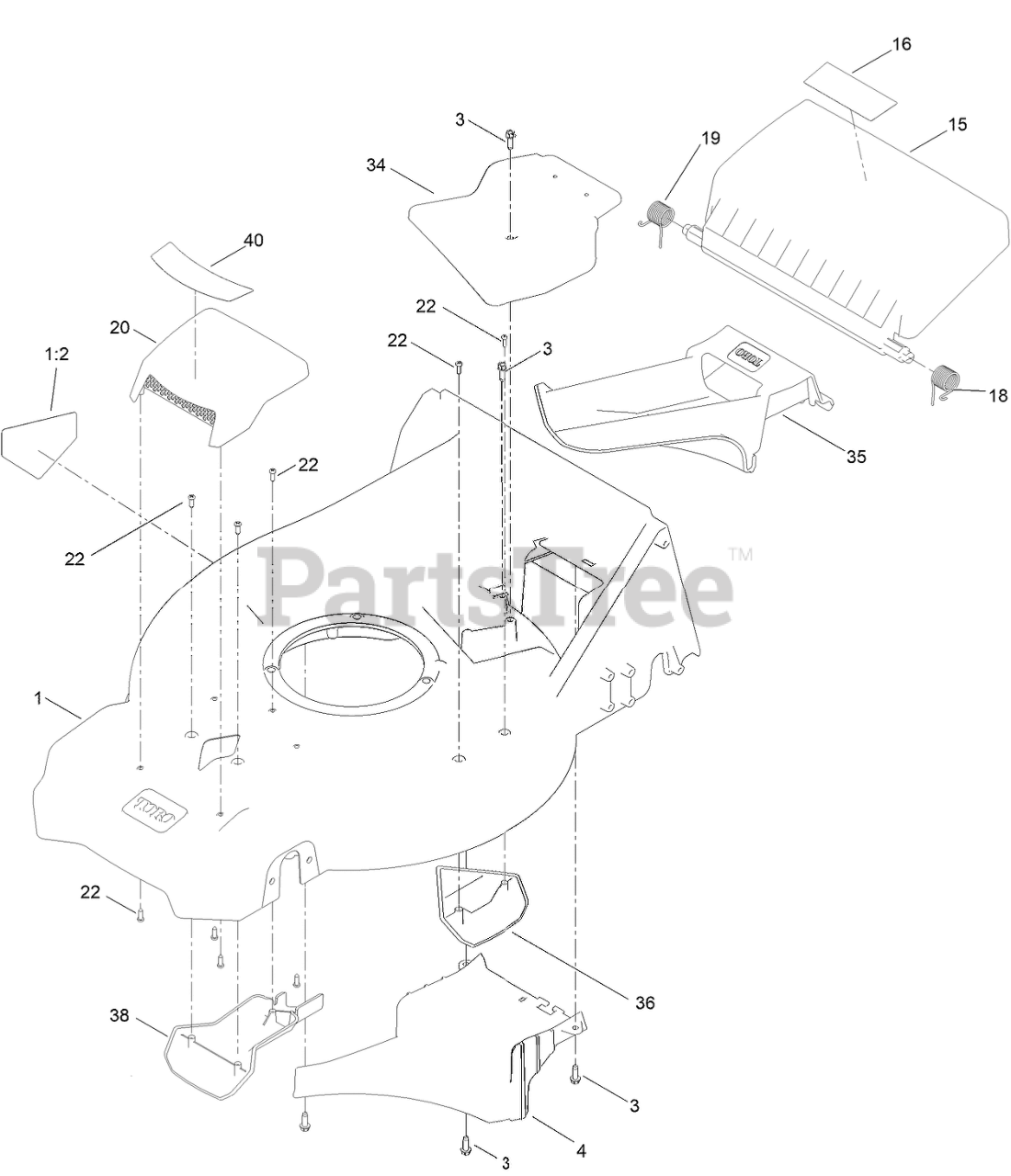

Housing Assembly Parts Diagram

  • Title

1

Toro 145-5835

HOUSING ASM

$284.99

$

Usually ships in 3-6 days

0

1:2

Toro 94-8072

DECAL-DANGER

$6.49

$

In Stock, Qty 12

0

3

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

4

Toro 144-0233

RAMP-DISCHARGE

$15.99

$

Usually ships in 3-6 days

0

15

Toro 139-5477

DOOR-REAR

$19.99

$

In Stock, only 1 left!

0

16

Toro 131-4514

DECAL-WARNING

$2.49

$

In Stock, only 4 left!

0

18

Toro 139-5478

SPRING-TORSION, LH

$1.99

$

In Stock, only 2 left!

0

19

Toro 139-5479

SPRING-TORSION, RH

$1.99

$

In Stock, only 2 left!

0

20

Toro 144-6531

ASM-COVER, TOP INTAKE

$10.99

$

Usually ships in 3-6 days

0

22

Toro 139-1703

SCREW-PLASTIC, PPH

$1.49

$

Usually ships in 3-6 days

0

34

Toro 144-0234

COVER-BELT, TOP

$10.99

$

Usually ships in 3-6 days

0

35

Toro 144-0236

PLUG-MULCH

$15.99

$

In Stock, only 1 left!

0

36

Toro 144-0237

KICKER-HOUSING

$4.99

$

Usually ships in 3-6 days

0

38

Toro 144-6464

COVER-INTAKE, BOTTOM

$5.99

$

Usually ships in 3-6 days

0

40

Toro 145-5600

DECAL-COVER, INTAKE

$4.99

$

Usually ships in 3-6 days

0
