21564 - Toro 21" Super Recycler Walk-Behind Mower (SN: 411860000 - 412999999) Electric Start Assembly Parts Diagram

21" Super Recycler Walk-Behind Mower

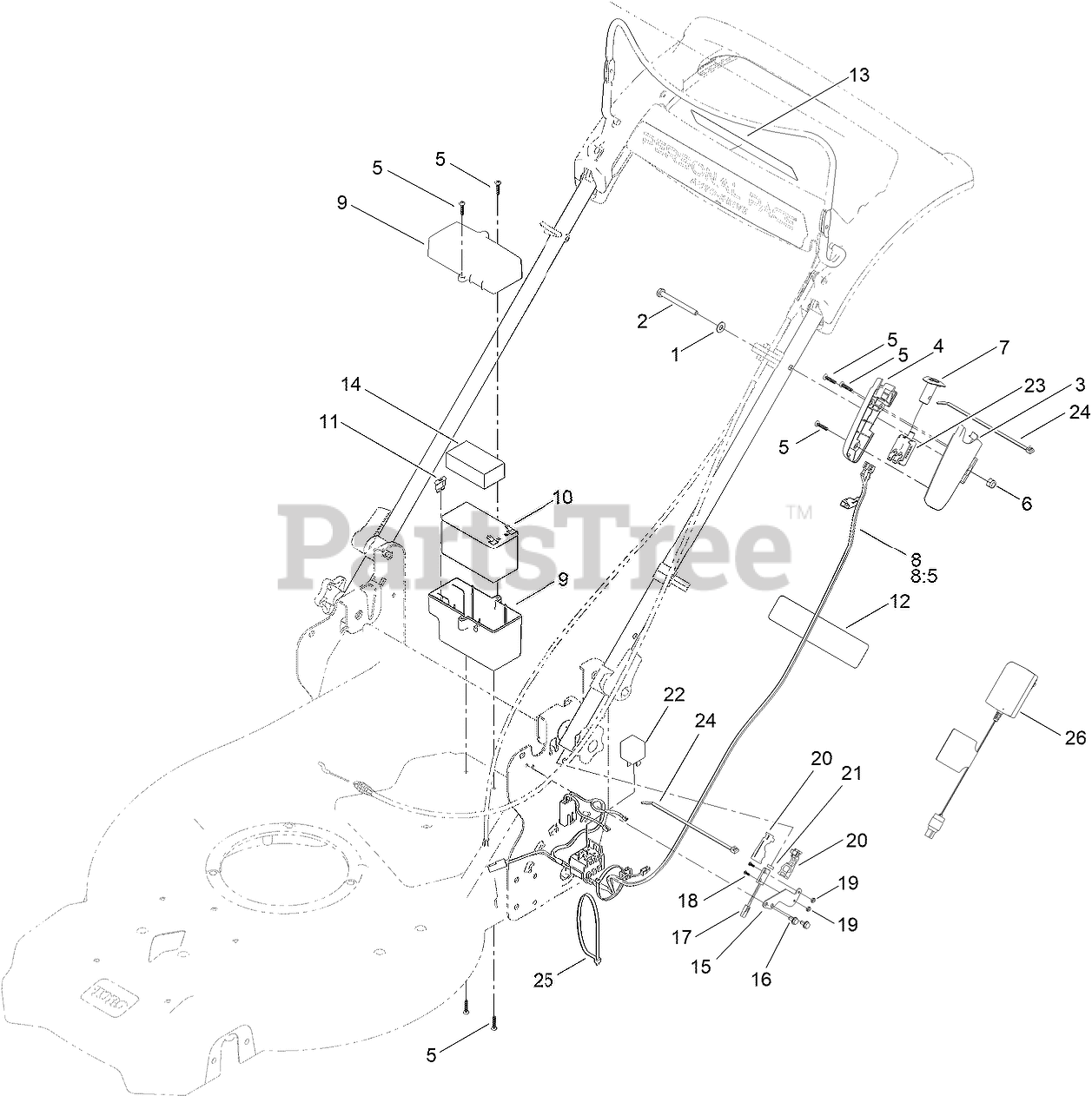

Electric Start Assembly Parts Diagram

  • Title

1

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

2

Toro 321-57

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

3

Toro 133-8160

HOUSING-SWITCH, LH

$1.99

$

In Stock, Qty 5

0

4

Toro 133-8161

HOUSING-SWITCH, RH

$1.99

$

In Stock, only 2 left!

0

5

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

6

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

7

Toro 125-2470

BUTTON-SWITCH

$2.49

$

In Stock, Qty 20+

0

8

Toro 140-6520

HARNESS-WIRE, SR5 VERT STOW

$93.99

$

Usually ships in 3-6 days

0

8:5

Toro 99-6124

FUSE-40 AMP

$5.49

$

In Stock, Qty 8

0

9

Toro 144-6390

BATTERY BOX ASM

$11.99

$

Usually ships in 3-6 days

0

10

Toro 127-0694

BATTERY-NONSPILLABLE, 12 V

$99.99

$

In Stock, Qty 5

0

11

Toro 99-6124

FUSE-40 AMP

$5.49

$

In Stock, Qty 8

0

12

Toro 140-4357

DECAL-BATTERY CHARGING

$10.99

$

Usually ships in 3-6 days

0

13

Toro 133-1900

DECAL-BUTTON, PUSH

$5.99

$

In Stock, only 2 left!

0

14

Toro 107-3774

FOAM-BATTERY, TOP

$4.99

$

In Stock, Qty 9

0

15

Toro 144-0217

BRKT-SWITCH, SS

$

$

Currently unavailable

16

Toro 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

17

Toro 140-3832

REED SWITCH ASM

$33.99

$

Usually ships in 3-6 days

0

18

Toro 360-0224

SCREW

$

$

Currently unavailable

19

Toro 3296-52

NUT-LOCK, NI

$6.99

$

Usually ships in 3-6 days

0

20

Toro 140-3806

HOUSING-MAGNET

$1.99

$

In Stock, Qty 10

0

21

Toro 114-5896

MAGNET

$6.49

$

In Stock, only 1 left!

0

22

Toro 1-643275

RELAY

$23.99

$

In Stock, Qty 20+

0

23

Toro 121-9173

SWITCH-PUSH BUTTON

$23.99

$

In Stock, only 2 left!

0

24

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

25

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

26

Toro 136-9126

CHARGER, BATTERY (12V)

$41.99

$

In Stock, Qty 18

0
