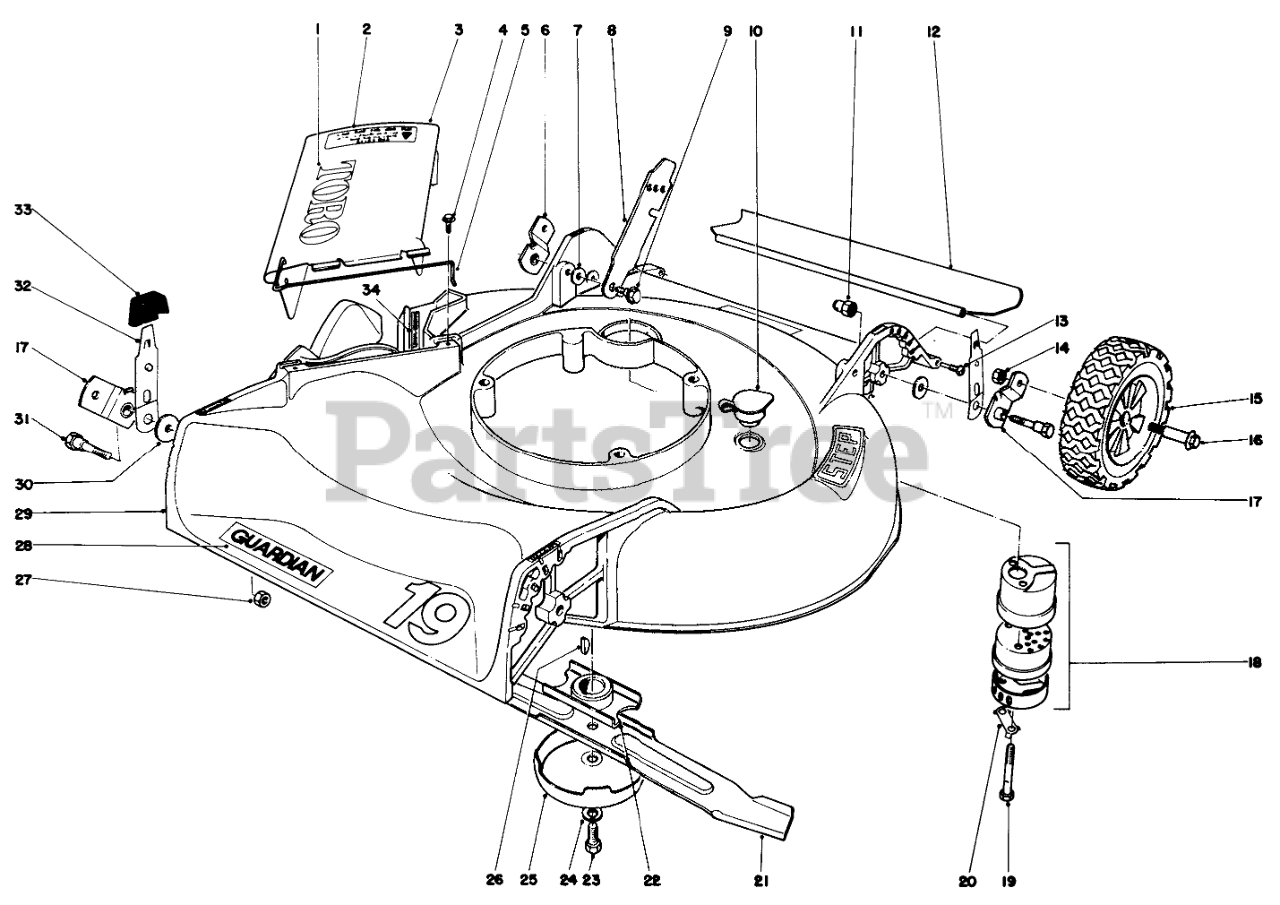

21557 - Toro Guardian Walk-Behind Mower (SN: 007000001 - 007999999) (1977) HOUSING ASSEMBLY Parts Diagram

Guardian Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 20-4690

TORO LOGO DECAL

$7.99

$

Usually ships in 3-6 days

0

2

Toro 20-4330

Caution Decal

$

$

Not available

3

Toro 20-2800

Deflector Cover Assembly (Incl. Ref. #1, 2 & 5)
(Superseded to 13-4049)

$

$

Not available

4

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

5

Toro 20-2640

SPRING HINGE

$

$

Not available

6

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

7

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

8

Toro 5-2446

Latch
(Superseded to 43-1550)

$

$

Not available

9

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

10

Toro 6-4500

WASHOUT PLUG

$

$

Not available

11

Toro 12-2080

HANDLE PIVOT NUT

$25.99

$

Usually ships in 3-6 days

0

12

Toro 22-4960

SHIELD - TRAILING

$91.99

$

Usually ships in 3-6 days

0

Toro 22-4950

REAR SAFETY SHIELD 21

Note: Not illustrated

$

$

Not available

13

Toro 8-6160

SAFTEY SHIELD SCREW

$

$

Not available

14

Toro 32146-6

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

15

Toro 27-6200

WHEEL TIRE ASM 8 IN

$

$

Not available

Toro 7-6210

Wheel & Tire Assembly (Model 19477)

Note: Not illustrated

$

$

Currently unavailable

Toro 27-6200

WHEEL TIRE ASM 8 IN

Note: Not illustrated

$

$

Not available

16

Toro 27-6230

BOLT-WHEEL

$8.49

$

Usually ships in 3-6 days

0

17

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$

$

Not available

18

Toro 5-4769

Muffler Assembly (Incl. Ref. #19 & 20)

$62.99

$

Usually ships in 3-6 days

0

19

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

20

Toro 3-5094

CLIP - LOCKING

$11.99

$

Usually ships in 3-6 days

0

21

Toro 20-2730

Blade
(Superseded to 20-2730-03)

$

$

Not available

Toro 20-2720

Blade
(Superseded to 20-2720-03)

Note: Not illustrated

$41.99

$

In Stock, only 2 left!

0

22

Toro 20-2750

Blade Retailer
(Superseded to 49-7890)

$

$

Not available

23

Toro 3-5246

SPECIAL SCREW

$

$

Not available

24

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

25

Toro 8-4240

AntiScalp Cup
(Superseded to 80-2770)

$16.99

$

Usually ships in 3-6 days

0

26

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

0

27

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

28

Toro 22-4770

Decal

$

$

Currently unavailable

29

Toro 6-8659

Housing 19" (Model #19477)

$

$

Currently unavailable

Toro 6-8669

Housing 21" (Model #21557)

Note: Not illustrated

$

$

Currently unavailable

30

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

31

Toro 3-0655

5/16-18 PIVOT SCREW

$15.99

$

In Stock, only 1 left!

0

32

Toro 25-8000

SPRING ARM ASM

$

$

Not available

33

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 8

0

34

Toro 22-7350

Decal

$

$

Not available

Toro 6-7489

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable

Toro 25-9150

REPLACEMNT SERIAL PLT

Note: Not illustrated

$19.99

$

Usually ships in 3-6 days

0
