2155 - Poulan Plus Chainsaw, Type 5 Engine Assembly Type 5 Parts Diagram

Plus Chainsaw, Type 5

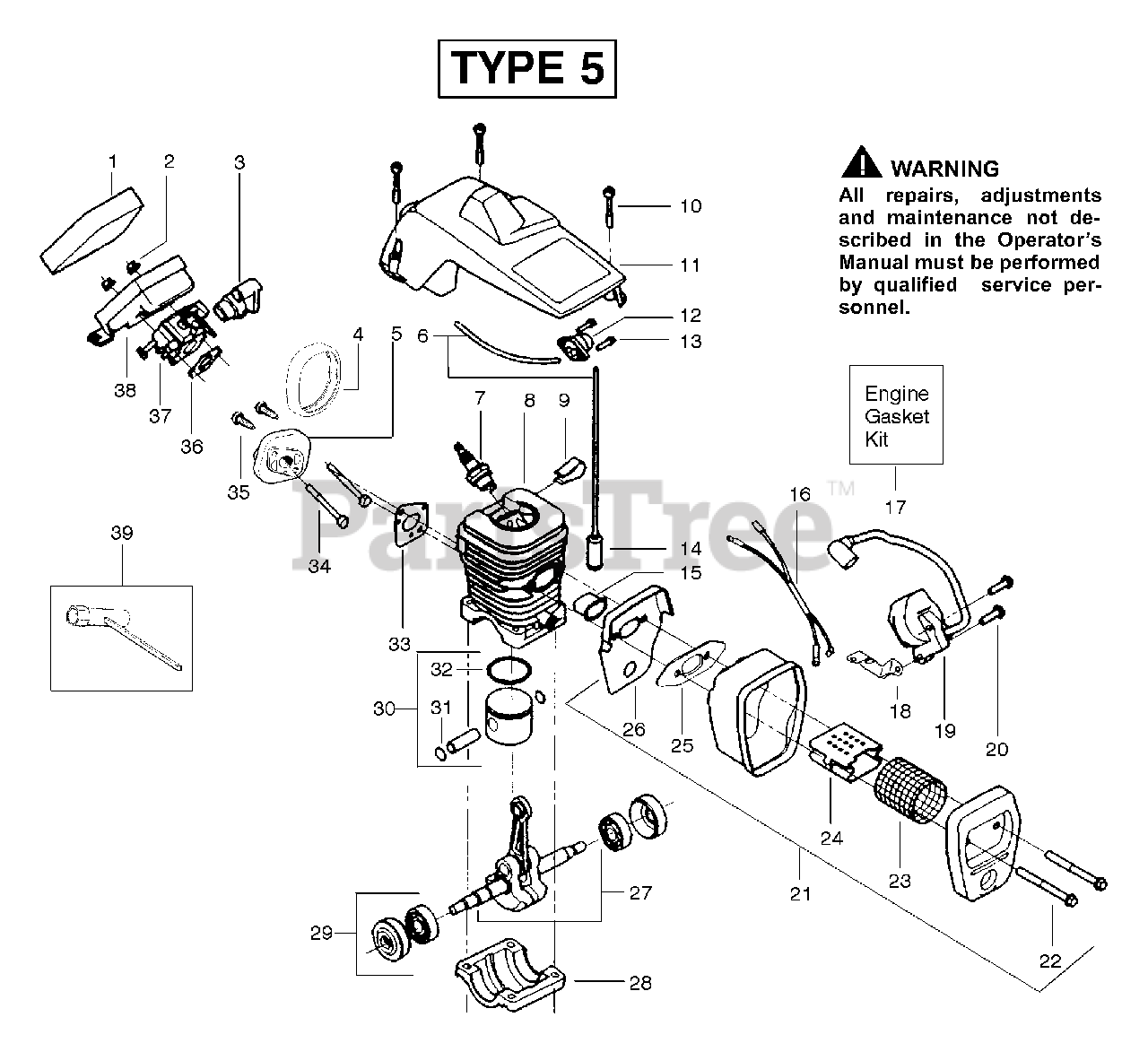

Engine Assembly Type 5 Parts Diagram

  • Title

1

Poulan 530037793

Foam Air Filter

$4.99

$

In Stock, Qty 7

0

2

Poulan 530016101

Nut

$6.49

$

In Stock, only 2 left!

0

3

Poulan 530035526

Grommet Carb Adjust

$

$

Not available

4

Poulan 530054144

Seal Carb Adapter

$

$

Not available

5

Poulan 530049700

Adapter Carb.

$10.99

$

In Stock, only 1 left!

0

6

Poulan 530069247

Kit Fuel Line (Small)

$7.99

$

In Stock, Qty 20+

0

7

Poulan 952030150

Spark Plug (RCJ7Y)

$3.49

$

In Stock, Qty 20+

0

8

Poulan 530071412

Kit Cylinder
(Superseded to 530012550)

$51.99

$

Usually ships in 3-10 days

0

9

Poulan 530016136

Clip High Tension Lead

$3.99

$

Usually ships in 3-10 days

0

10

Poulan 530016153

Screw

$6.49

$

Usually ships in 3-10 days

0

11

Poulan 530071310

Shield Cylinder

$

$

Not available

12

Poulan 530047213

Assy Air Purge
(Superseded to 530071835)

$11.99

$

In Stock, Qty 14

0

13

Poulan 530015780

Screw

$6.49

$

In Stock, only 2 left!

0

14

Poulan 530095646

Assy Fuel Pickup

$6.99

$

In Stock, Qty 20+

0

15

Poulan 530037652

Insulator Heat

$

$

Not available

16

Poulan 530052296

Assy. Wire Harness

$7.49

$

Usually ships in 3-10 days

0

17

Poulan 530069608

Kit Engine Gasket

Note: (Incl. 25, 33 & 36)

$8.99

$

In Stock, Qty 13

0

18

Poulan 530047442

Strap Ground

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 530039198

Module Ignition

$56.99

$

In Stock, only 1 left!

0

20

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 16

0

21

Poulan 530047207

Assy Muffler
(Superseded to 530071904)

Note: (Incl. 22-26)

$20.99

$

Usually ships in 3-10 days

0

22

Poulan 530016132

Screw

$6.49

$

In Stock, Qty 10

0

23

Poulan 530036103

Screen Spark

$

$

Not available

24

Poulan 530037813

Diffuser Muffler

$4.99

$

In Stock, only 1 left!

0

25

Poulan 530069608

Gasket Muffler (kit)

$8.99

$

In Stock, Qty 13

0

26

Poulan 530049870

Backplate Muffler

$6.49

$

Usually ships in 3-10 days

0

27

Poulan 530047062

Assy. Crankshaft
(Superseded to 545113101)

$72.99

$

In Stock, only 1 left!

0

28

Poulan 530037935

Cap Crankcase

$10.99

$

Usually ships in 3-10 days

0

29

Poulan 530056363

Assy. Seal & Bearing

$18.99

$

In Stock, only 2 left!

0

30

Poulan 530071408

Kit Piston

Note: (Incl. 31 & 32)

$

$

Not available

31

Poulan 530015697

Retainer Piston Pin

$6.49

$

In Stock, Qty 6

0

32

Poulan 530038729

Ring Piston
(Superseded to 545160401)

$6.49

$

In Stock, only 1 left!

0

33

Poulan 530069608

Gasket Adapter (kit)

$8.99

$

In Stock, Qty 13

0

34

Poulan 530016187

Screw

$6.49

$

In Stock, only 2 left!

0

35

Poulan 530016386

Screw

$8.99

$

In Stock, only 1 left!

0

36

Poulan 530069608

Gasket Carb. (kit)

$8.99

$

In Stock, Qty 13

0

37

Poulan 530071618

Kit Carburetor (W-14A)
(Superseded to 545081885)

$34.99

$

Usually ships in 3-10 days

0

38

Poulan 530037804

Housing Air Filter
(Superseded to 530057480)

$

$

Not available

39

Poulan 530031163

Wrench Bar

$9.99

$

In Stock, Qty 12

0

Poulan 530163675

Operator Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530057757

Decal Warning

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0
