2155 (13C-244G100) - Cub Cadet Garden Tractor (SN: 326006 & Above) Transmission Controls S/N 359,000 & Below Parts Diagram

Garden Tractor

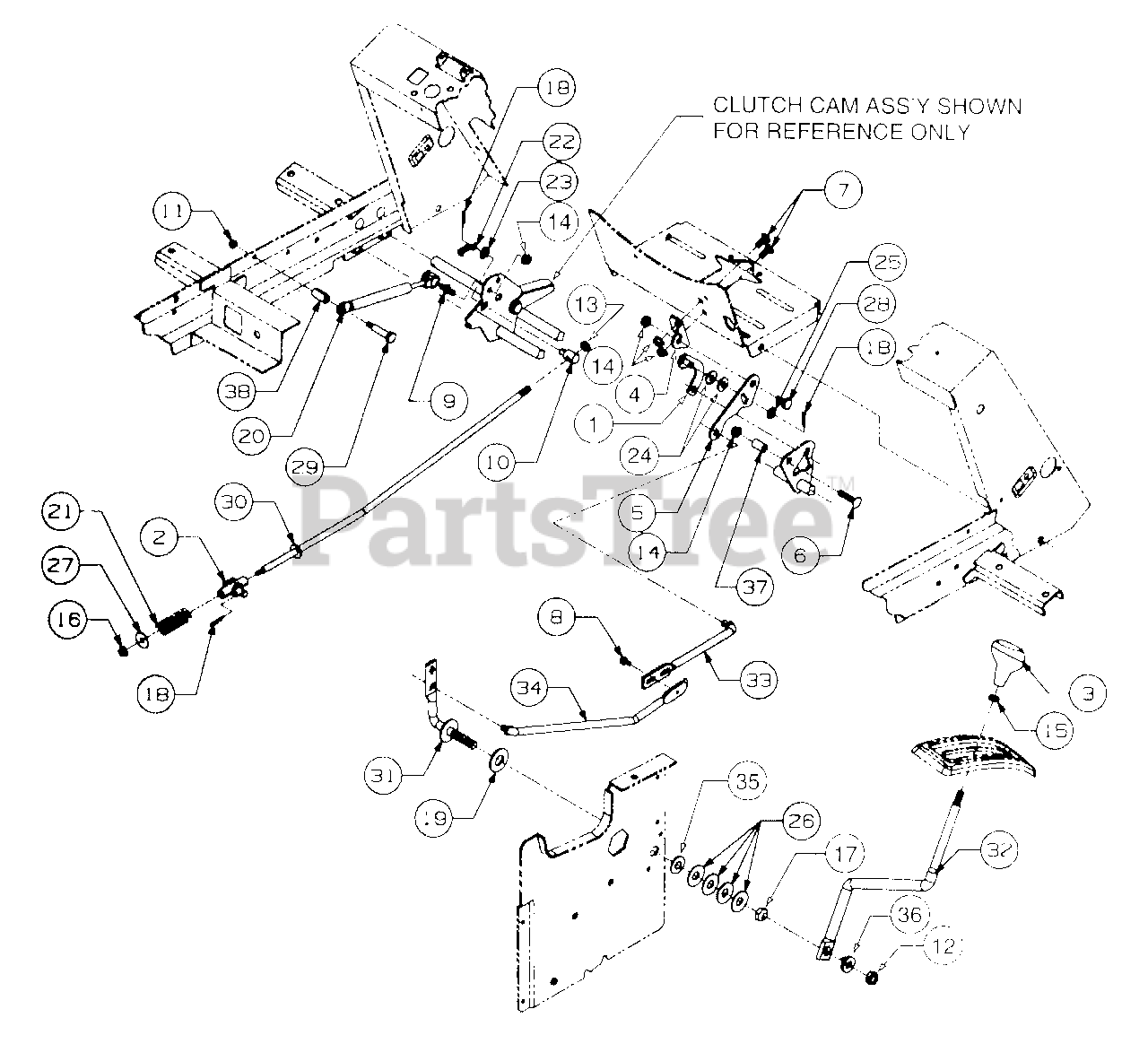

Transmission Controls S/N 359,000 & Below Parts Diagram

  • Title

1

Cub Cadet 603-0252

Bracket, Cruise Return

$

$

Not available

2

Cub Cadet 603-0272

Pivot Assy, Sleeve

$

$

Not available

3

Cub Cadet 631-0009

Knob, Shifter
(Superseded to 931-0009A)

$14.99

$

In Stock, only 4 left!

0

4

Cub Cadet 703-2488

Bracket, Cruise Pivot

Variations

Cub Cadet 703-2488-0498

BRACKET HYDRO-CRUISE CNTL PIVOT - OLD CUB YELLOW (0498)

$

$

Not available

$

$

5

Cub Cadet 703-2635

Cam, Hydro Cruise

$

$

Not available

6

Cub Cadet 710-0262

Bolt, Carriage, 5/16-18 x 1.5

$3.99

$

In Stock, Qty 13

0

7

Cub Cadet 710-0451

Bolt, Carriage, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0599

Screw, Hex Wash Hd Tapp 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3170

Screw, Ball, 5/16-18

$13.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 711-3397

Ferrule, Adjustment

$

$

Not available

11

Cub Cadet 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 10

0

12

Cub Cadet 712-3053

Nut, Hex Top Lock, 1/2-20
(Superseded to 912-3053)

$

$

Not available

13

Cub Cadet 712-3001

Nut, Hex Jam, 3/8-24 GR5
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 18

0

14

Cub Cadet 712-3004A

Nut, Hex Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-3008

Nut, Hex Jam, 3/8-16 GR5

$4.99

$

In Stock, Qty 19

0

16

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 712-0333

Nut, Hex, 1/2-20
(Superseded to 912-0333)

$

$

Not available

18

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 723-3013

Washer, Friction
(Superseded to 923-3013)

$

$

Not available

20

Cub Cadet 727-3090

Cylinder, Damper

$94.99

$

In Stock, only 1 left!

0

21

Cub Cadet 732-3094

Spring, Compression, .63 ID x 2.0
(Superseded to 932-3094)

$10.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 732-3118

Spring, Extension, .38 OD x 1.44

$10.99

$

In Stock, only 3 left!

0

23

Cub Cadet 736-0185

Washer, Flat, .406 x .75 x .063

$3.99

$

In Stock, only 3 left!

0

24

Cub Cadet 736-0262

Washer, Flat, .375 x .870 x .090

$3.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 736-0275

Washer, Flat, 5/16

$6.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 736-3022

Washer, Bell
(Superseded to 936-3022)

$5.49

$

In Stock, only 2 left!

0

27

Cub Cadet 736-3092

Washer, Flat, .265 x 1.0 x .03 Hd

$3.99

$

In Stock, Qty 9

0

28

Cub Cadet 738-0140

Bolt, Shoulder, .437 Dia x .180 Lg

$5.99

$

In Stock, Qty 15

0

29

Cub Cadet 738-0560

Bolt, Shoulder, .347 Dia x 1.375
(Superseded to 938-0560)

$10.99

$

In Stock, only 1 left!

0

30

Cub Cadet 747-3234

Rod, Hydro Adjustment

$

$

Not available

31

Cub Cadet 747-3251

Rod, Shift

$

$

Not available

32

Cub Cadet 747-3252

Rod, Gear Selector

$

$

Not available

33

Cub Cadet 747-3257

Link, Front Hydro Shifter

$

$

Not available

34

Cub Cadet 747-3258

Link, Rear Hydro Shifter

$

$

Not available

35

Cub Cadet 748-3057

Bushing, Shoulder

$

$

Not available

36

Cub Cadet 748-3058

Hub, Shift
(Superseded to 948-3058)

$

$

Not available

37

Cub Cadet 750-0252

Spacer, .377 ID x .50 OD x .830
(Superseded to 950-0252)

$21.99

$

In Stock, Qty 5

0

38

Cub Cadet 750-0434

Spacer, Tubing, .375 x .52 x 1.04

$6.99

$

Usually ships in 3-6 days

0
