21509T2 (80277) - Snapper 21" Walk-Behind Mower, 5hp Front Wheels Parts Diagram

21" Walk-Behind Mower, 5hp

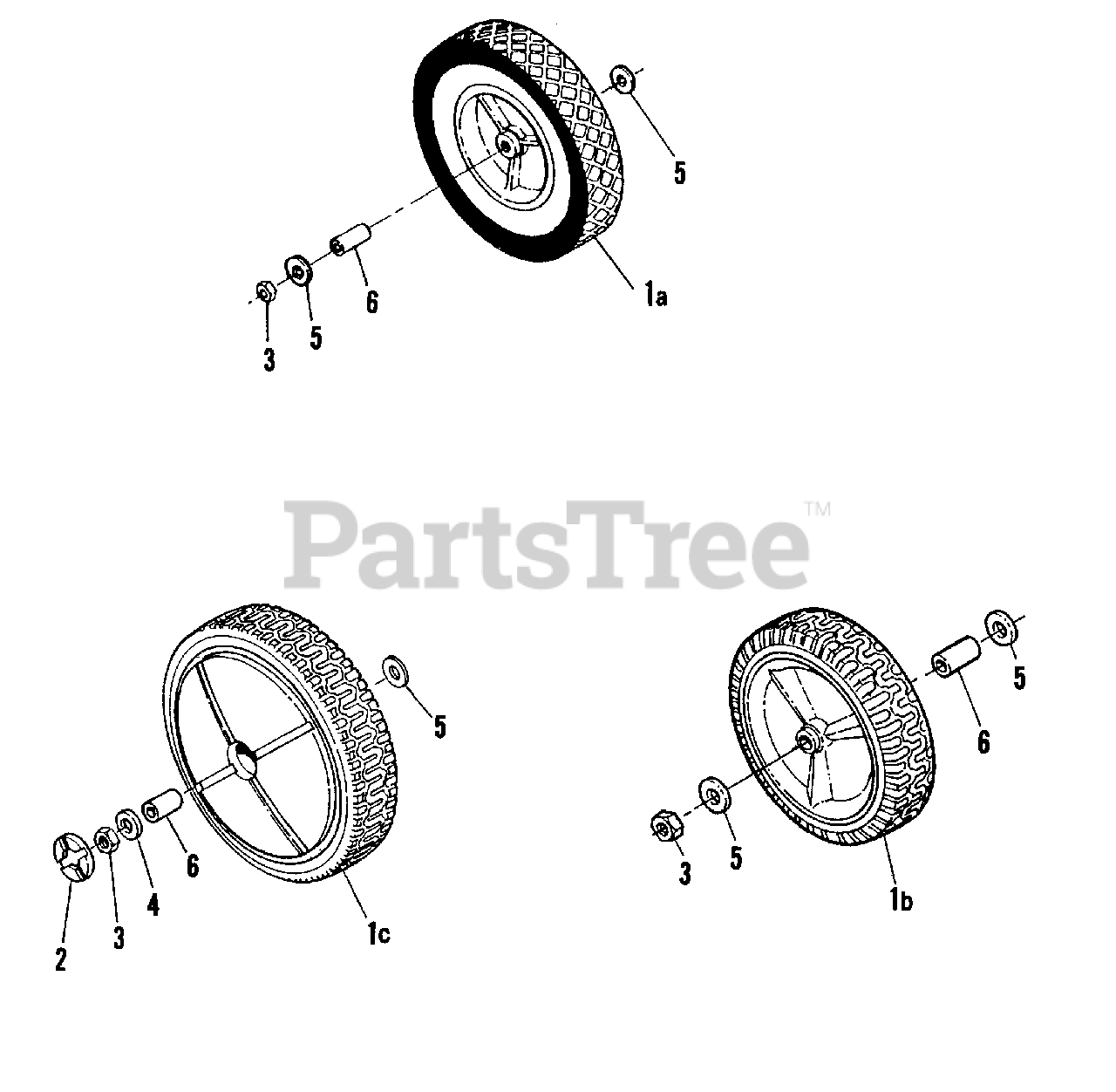

Front Wheels Parts Diagram

  • Title

1A

Snapper 7022795

WHEEL, 7 x 1.50 - Plastic

Note: (Used On OD, ODP)

$

$

Not available

1B

Snapper 7019195

WHEEL, 7 x 1.75 - Plastic

Note: Was 19333 (Used On D21, R21)

$

$

Not available

1C

Snapper 7019195

WHEEL, 7 x 1.75 - Plastic

Note: Was 19419 or 19495 (Used On Various)

$

$

Not available

2

Snapper 7017829

PLUG, Wheel
(Superseded to 7017829YP)

Note: (Used On 19419)

$3.99

$

In Stock, Qty 6

0

3

Snapper 7090377

NUT, 7/16 - 20 Hex Thin
(Superseded to 7090377SM)

Note: (Used On All)

$5.49

$

In Stock, Qty 20+

0

4

Snapper 7090500

WASHER, 7/16" ID SAE

Note: Was 91172 (Used On 19419)

$2.99

$

In Stock, Qty 7

0

5

Snapper 7031961

WASHER, 1" O.D. Flat
(Superseded to 703964)

Note: (Used On All)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7012309

AXLE BUSHING
(Superseded to 7012309YP)

Note: (Used On All)

$5.99

$

In Stock, only 4 left!

0
