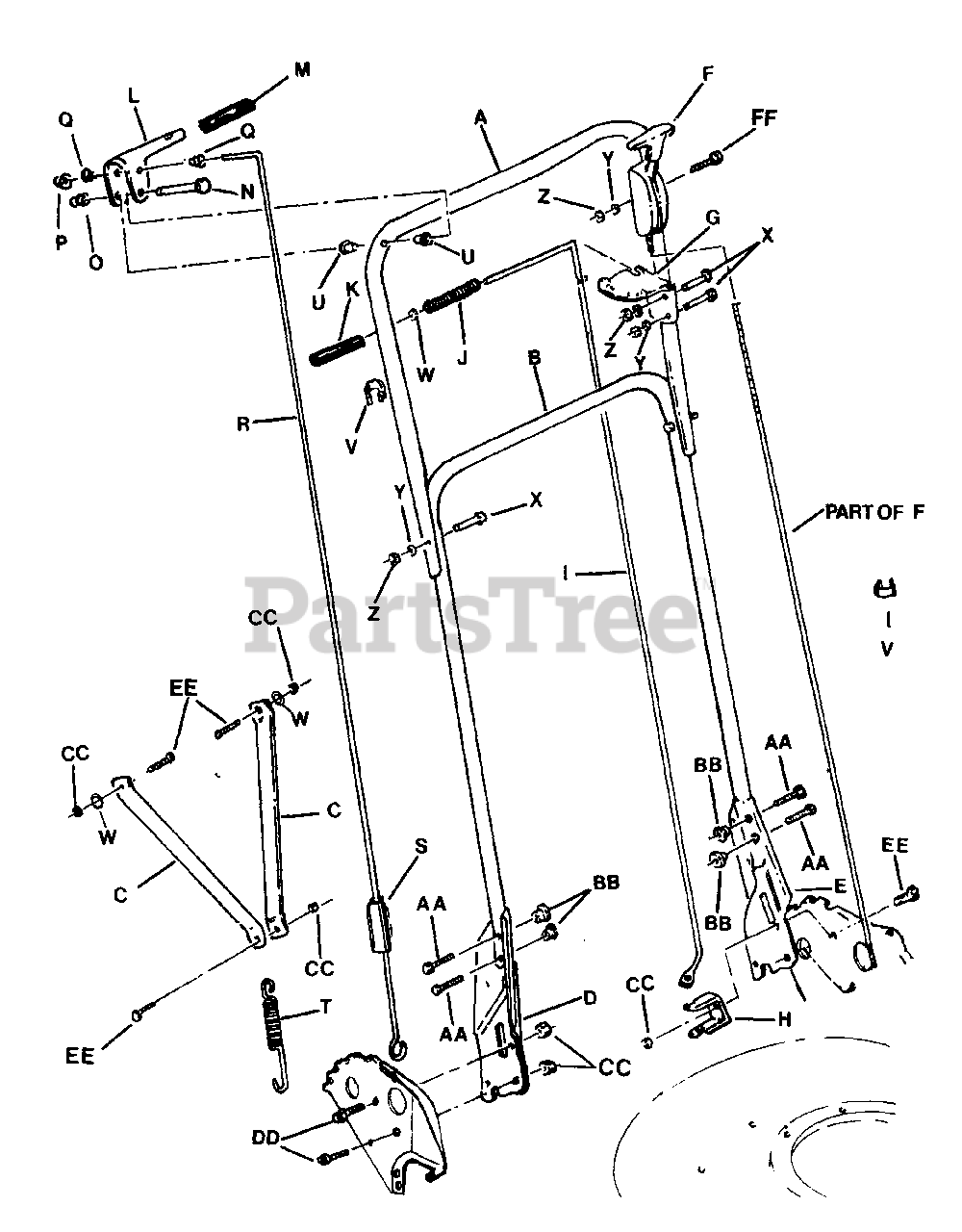

21500C - Snapper 21" Walk-Behind Mower, 5hp Handles, Controls 21500C, 21500PC Parts Diagram

21" Walk-Behind Mower, 5hp

Handles, Controls 21500C, 21500PC Parts Diagram

  • Title
A

Snapper 7033444

HANDLE, UPPER

Note: Was 39600

$

$

Not available

B

Snapper 7039602

HANDLE, MIDDLE

$

$

Not available

C

Snapper 7032833

STRAP, HANDLE
(Superseded to 7032833YP)

Note: Was 37729

$33.99

$

Usually ships in 2-12 days

0

D

Snapper 7033986

MOUNT, RIGHT HAND HANDLE
(Superseded to 7033986AYP)

Note: Was 39750

$36.99

$

In Stock, only 4 left!

0

E

Snapper 7033985

MOUNT, LEFT HAND HANDLE
(Superseded to 7033985AYP)

Note: Was 39749

$43.99

$

Usually ships in 2-12 days

0

F

Snapper 7026467

CONTROL, Throttle, 49.0" - B&S
(Superseded to 7026467YP)

Note: Was 18188

$38.99

$

Usually ships in 2-12 days

0

F

Snapper 7018780

CONTROL, THROTTLE, 44.375" - Robin
(Superseded to 7018780YP)

$

$

Not available

F

Snapper 7018201

CONTROL, THROTTLE, 49.0" - Honda

$

$

Not available

G

Snapper 7038478

SECTOR, SPEED CONTROL
(Superseded to 7038478YP)

$82.99

$

Usually ships in 2-12 days

0

H

Snapper 7032830

ANCHOR, Speed Control
(Superseded to 7032830YP)

Note: Was 31755

$26.99

$

In Stock, only 1 left!

0

I

Snapper 7012317

LEVER, SPEED CONTROL

$

$

Not available

J

Snapper 7012093

SPRING, SPEED CONTROL LEVER
(Superseded to 7012093YP)

$4.49

$

In Stock, only 4 left!

0

K

Snapper 7023801

GRIP, SPEED CONTROL LEVER
(Superseded to 7023801YP)

Note: Was 11879

$4.49

$

In Stock, Qty 6

0

L

Snapper 7032826

HANDLE, Clutch
(Superseded to 7074473BMYP)

Note: Was 31881

$16.99

$

In Stock, Qty 20+

0

M

Snapper 7014307

GRIP, CLUTCH HANDLE
(Superseded to 7014307YP)

Note: Was 11982

$4.49

$

In Stock, Qty 20+

0

N

Snapper 7023792

PIN, CLUTCH HANDLE
(Superseded to 704031)

Note: Was 11886

$3.99

$

In Stock, Qty 20+

0

O

Snapper 7091020

NUT, PUSH
(Superseded to 7091020YP)

Note: Was 90489

$4.49

$

In Stock, Qty 20+

0

P

Snapper 7012314

NUT, PUSH
(Superseded to 7012314YP)

$4.49

$

In Stock, only 3 left!

0

Q

Snapper 7012135

BUSHING, PULL ROD

$4.49

$

In Stock, only 1 left!

0

R

Snapper 7051466

ROD, CLUTCH PULL
(Superseded to 7023134YP)

Note: Was 23134

$18.99

$

In Stock, Qty 15

0

S

Snapper 7012121

COVER, VINYL
(Superseded to 7012121YP)

$

$

Not available

T

Snapper 7012122

SPRING, CLUTCH
(Superseded to 7012122YP)

$9.49

$

In Stock, Qty 20+

0

U

Snapper 7014343

BUSHING, CLUTCH HANDLE PIN
(Superseded to 7014343YP)

Note: Was 12070

$3.99

$

In Stock, Qty 20+

0

V

Snapper 7023813

CLIP
(Superseded to 7023813SM)

Note: Was 10098

$3.49

$

In Stock, Qty 9

0

W

Snapper 7090188

WASHER, FLAT 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

X

Snapper 7090552

SCREW, CAP 1/4-28 X 1 3/8
(Superseded to 703828)

$3.99

$

Usually ships in 2-12 days

0

Y

Snapper 7090053

WASHER, INTERNAL TOOTH LOCK 1/4
(Superseded to 703462)

$4.49

$

In Stock, Qty 7

0

Z

Snapper 7090095

NUT, HEX 1/4-28
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

AA

Snapper 7027230

SCREW, CAP 1/4-20 X 1
(Superseded to 703820)

Note: Was 90548

$3.99

$

In Stock, only 4 left!

0

BB

Snapper 7012322

NUT, CURVED HEAD T 1/4-20

$

$

Not available

CC

Snapper 7090222

NUT, LOCK 5/16 - 24
(Superseded to 703896)

$3.49

$

In Stock, Qty 20+

0

DD

Snapper 7090238

CAPSCREW, 5/16-24 x 1
(Superseded to 703301)

$3.99

$

Usually ships in 2-12 days

0

EE

Snapper 7090233

CAPSCREW, 5/16-24 x 3/4
(Superseded to 703336)

$4.49

$

In Stock, Qty 5

0

FF

Snapper 7090111

CAPSCREW, 1/4-28 x 1 3/4

$2.99

$

In Stock, only 3 left!

0
