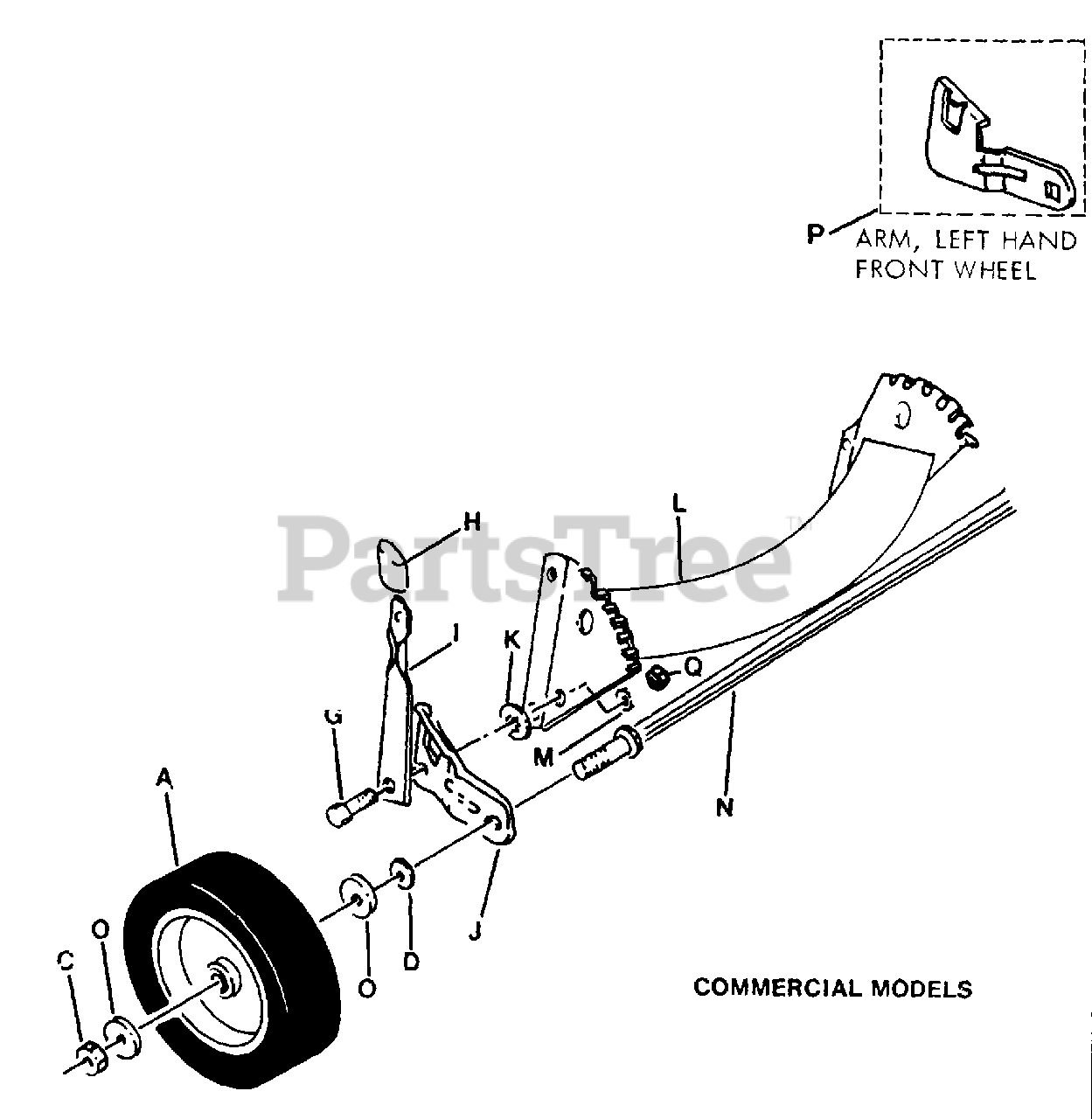

21500C - Snapper 21" Walk-Behind Mower, 5hp Front Wheels, Brackets, Latches Commercial Models Parts Diagram

21" Walk-Behind Mower, 5hp

Front Wheels, Brackets, Latches Commercial Models Parts Diagram

  • Title

A

Snapper 7012347

WHEEL, FRONT 7 x 1.50 - 21500C & 21500PC (steel rim)

$

$

Not available

C

Snapper 7090377

NUT, 7/16F HEX LOCK
(Superseded to 7090377SM)

Note: Was 90394

$5.49

$

In Stock, Qty 20+

0

D

Snapper 7011079

WASHER, SPRING
(Superseded to 7011079YP)

$4.99

$

In Stock, Qty 20+

0

G

Snapper 7011078

SCREW, SHOULDER 5/16-18 x 1"
(Superseded to 703840)

$5.49

$

In Stock, only 2 left!

0

H

Snapper 7011093

GRIP, HEIGHT LATCH
(Superseded to 7011093YP)

$6.49

$

In Stock, Qty 20+

0

I

Snapper 7012325

LATCH, HEIGHT
(Superseded to 7012325YP)

$5.99

$

In Stock, Qty 20+

0

J

Snapper 7031017

ARM, RIGHT HAND FRONT WHEEL
(Superseded to 7031017YP)

$14.99

$

Usually ships in 2-12 days

0

K

Snapper 7011791

RETAINER, BOLT
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

L

Snapper 7047815

BRACKET, FRONT WHEEL -- STRUCTURE
(Superseded to 7047815YP)

Note: Was 47735

$92.99

$

Usually ships in 2-12 days

0

M

Snapper 7090391

LOCKWASHER, 5/16 INTERNAL TOOTH
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

N

Snapper 7021119

AXLE, FRONT WHEEL
(Superseded to 7021119YP)

$22.99

$

In Stock, Qty 17

0

O

Snapper 7031121

CAP, HUB
(Superseded to 7031121YP)

Note: (Commercial Models Only)

$6.99

$

In Stock, Qty 10

0

P

Snapper 7031016

ARM, LEFT HAND FRONT WHEEL
(Superseded to 7031016YP)

$7.99

$

In Stock, only 3 left!

0

Q

Snapper 7091511

NUT, 5/16-18 HEX
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0
