21500C (83674) - Snapper 21" Walk-Behind Mower, 5hp Middle & Lower Handles - Hand Propelled Parts Diagram

21" Walk-Behind Mower, 5hp

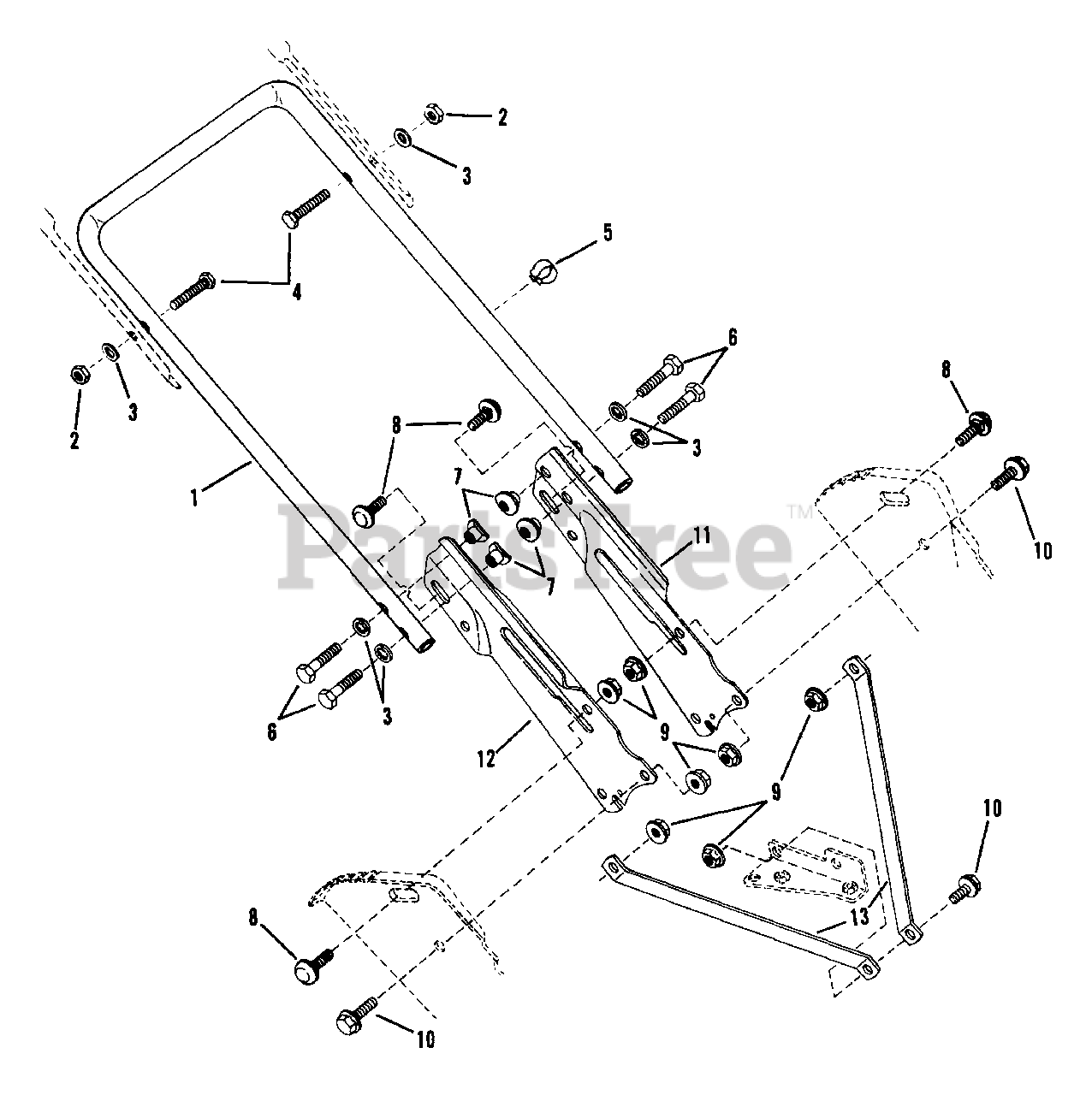

Middle & Lower Handles - Hand Propelled Parts Diagram

  • Title

1

Snapper 7039602

HANDLE, Middle

$

$

Not available

2

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 6

0

4

Snapper 7090552

SCREW, 1/4-28 x 1 3/8 Hex Head Cap (Gr. 5)
(Superseded to 703828)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper 7023813

CLIP
(Superseded to 7023813SM)

Note: Was 14374

$3.49

$

In Stock, Qty 20+

0

6

Snapper 7027230

SCREW, 1/4-20 x 1" Hex Head Cap (Gr. 5)
(Superseded to 703820)

Note: Was 90548

$3.99

$

In Stock, only 4 left!

0

7

Snapper 7012322

T-NUT, 1/4-20 Curve Head

$

$

Not available

8

Snapper 7090799

BOLT, 5/16-18 x 5/8" Carriage
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

9

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

10

Snapper 7090595

BOLT, 5/16-18 x 3/4" Hex Flange Lock
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

11

Snapper 7033985

MOUNT, L.H. Handle
(Superseded to 7033985AYP)

Note: Was 39749

$43.99

$

Usually ships in 2-12 days

0

12

Snapper 7033986

MOUNT, R.H. Handle
(Superseded to 7033986AYP)

Note: Was 39750

$36.99

$

In Stock, only 4 left!

0

13

Snapper 7032833

STRAP, Handle
(Superseded to 7032833YP)

Note: Was 37729

$33.99

$

Usually ships in 2-12 days

0
