21500 - Toro Guardian Walk-Behind Mower (SN: 005000001 - 005999999) (1975) HOUSING ASSEMBLY Parts Diagram

Guardian Walk-Behind Mower

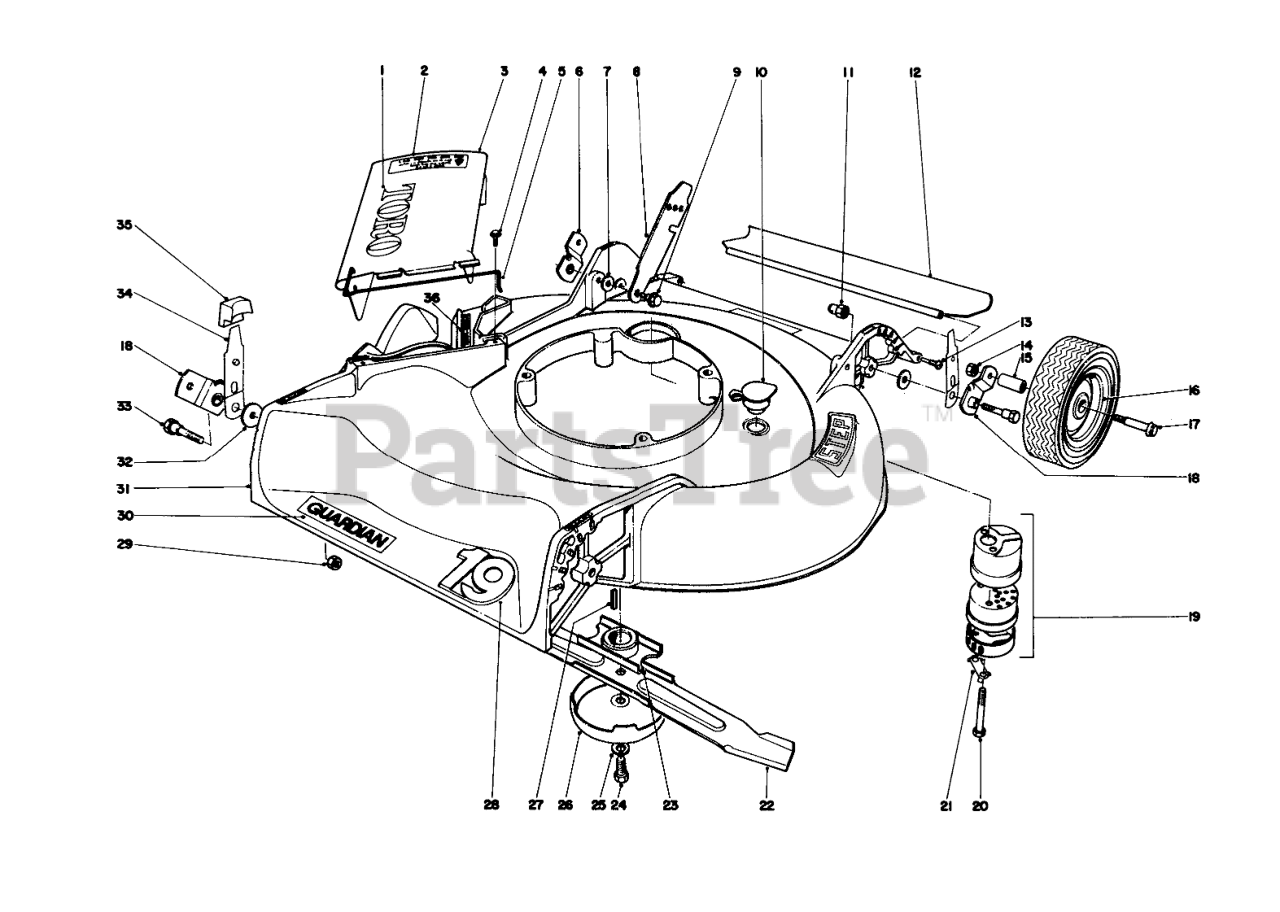

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 204690

Decal

$

$

Currently unavailable

2

Toro 204330

Decal Caution

$

$

Currently unavailable

3

Toro 20-2800

Deflector Cover Assembly (Incl. Ref. #1, 2 & 5)
(Superseded to 13-4049)

$

$

Not available

4

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

5

Toro 20-2640

SPRING HINGE

$

$

Not available

6

Toro 20-2130

Pivot Arm
(Superseded to 98-1527)

$

$

Not available

7

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 6

0

8

Toro 5-2446

Latch
(Superseded to 43-1550)

$

$

Not available

9

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

10

Toro 6-4500

WASHOUT PLUG

$

$

Not available

11

Toro 12-2080

HANDLE PIVOT NUT

$25.99

$

Usually ships in 3-6 days

0

12

Toro 22-4960

SHIELD - TRAILING

$91.99

$

Usually ships in 3-6 days

0

Toro 224950

Rear Shield

Note: Not illustrated

$

$

Currently unavailable

13

Toro 8-6160

SAFTEY SHIELD SCREW

$

$

Not available

14

Toro 32146-12

Nut
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 20+

0

15

Toro 174560

Bushing

$

$

Currently unavailable

16

Toro 174120

Wheel & Tire (Incl. Ref. #15) (Model 19400)

$

$

Currently unavailable

Toro 174140

Wheel & Tire (Incl. Ref. #15) (Model 19400)

Note: Not illustrated

$

$

Currently unavailable

Toro 174120

Wheel & Tire (Incl. Ref. #15) (Model 21500)

Note: Not illustrated

$

$

Currently unavailable

17

Toro 3-2652

Bolt

$

$

Not available

18

Toro 20-2140

Pivot Arm
(Superseded to 98-1511)

$

$

Not available

19

Toro 5-4769

Muffler Assy. (Incl. Ref. #20 & 21)

$62.99

$

Usually ships in 3-6 days

0

20

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

21

Toro 3-5094

CLIP - LOCKING

$11.99

$

Usually ships in 3-6 days

0

22

Toro 20-2730

Blade
(Superseded to 20-2730-03)

$

$

Not available

Toro 20-2720

Blade
(Superseded to 20-2720-03)

Note: Not illustrated

$41.99

$

In Stock, only 2 left!

0

23

Toro 20-2750

Blade Retailer
(Superseded to 49-7890)

$

$

Not available

24

Toro 3-5246

SPECIAL SCREW

$

$

Not available

25

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

26

Toro 84240

Anti Scalp Cup

$

$

Currently unavailable

27

Toro 21-5070

KEY-SQUARE

$

$

Not available

28

Toro 20-2680

Emblem Deck

$

$

Currently unavailable

Toro 20-2670

Emblem Deck

Note: Not illustrated

$

$

Currently unavailable

29

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

30

Toro 224770

Decal Deck

$

$

Currently unavailable

31

Toro 6-0659

Housing

$

$

Currently unavailable

Toro 6-0669

Housing

Note: Not illustrated

$

$

Currently unavailable

32

Toro 54460

Washer

$

$

Currently unavailable

33

Toro 34655

Pivot Screw

$

$

Currently unavailable

34

Toro 23-0400

SPRING ARM ASM

$

$

Not available

35

Toro 84220

Knob Arm

$

$

Currently unavailable

36

Toro 22-7350

Decal

$

$

Not available

Toro 20-2490

Loose Parts Bag

Note: Not illustrated

$

$

Currently unavailable
