2150 PR - Poulan Chainsaw, Type 4 (2006-11) Engine - Type 1-5 Parts Diagram

Chainsaw, Type 4

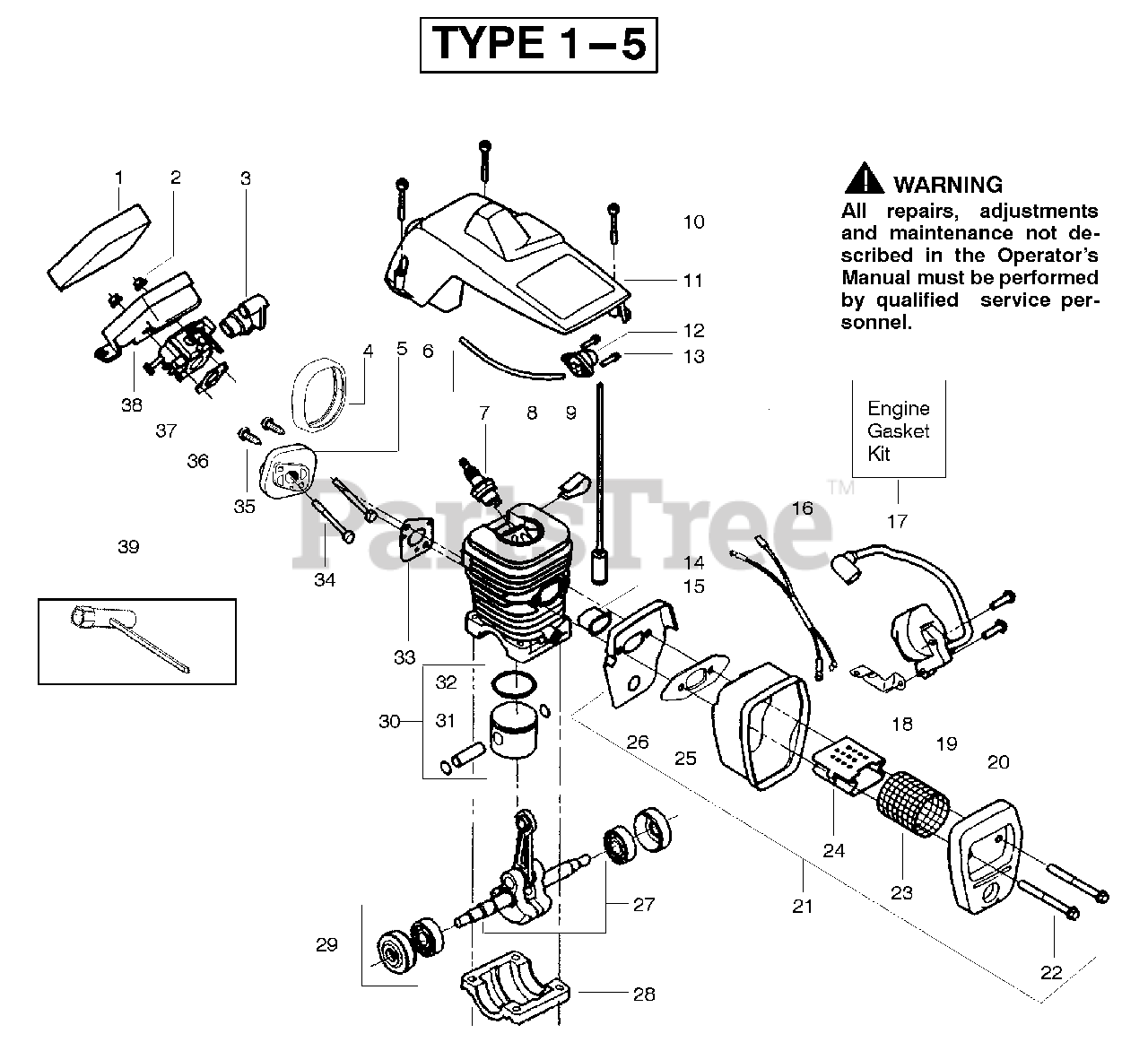

Engine - Type 1-5 Parts Diagram

  • Title

1

Electrolux/AYP 530037793

Foam- Air Filter

$4.99

$

In Stock, Qty 5

0

2

Electrolux/AYP 530016101

Nut

$6.49

$

In Stock, only 2 left!

0

3

Electrolux/AYP 530035526

Grommet-Carb Adjust
(Superseded to 530049244)

$4.99

$

In Stock, only 3 left!

0

4

Electrolux/AYP 530054144

Seal-Carb Adapter

$

$

Not available

5

Electrolux/AYP 530049700

Carb. Adapter

$10.99

$

In Stock, only 1 left!

0

6

Electrolux/AYP 530069247

Fuel Line Kit (Small)

$7.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 952030150

Spark Plug (RCJ-7Y)

$3.49

$

In Stock, Qty 20+

0

8

Electrolux/AYP 530069606

Kit-Cylinder
(Superseded to 530071252)

$34.61

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 530016136

Clip-High Tension Lead

$3.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 530016153

Screw

$6.49

$

In Stock, only 1 left!

0

11

Electrolux/AYP 530049227

Cylinder Shield

$12.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 530047213

Air Purge Ass’y.
(Superseded to 530071835)

$11.99

$

In Stock, Qty 14

0

13

Electrolux/AYP 530015780

Screw

$6.49

$

In Stock, only 2 left!

0

14

Electrolux/AYP 530095646

Fuel Pick-up Ass’y.

$6.99

$

In Stock, Qty 20+

0

15

Electrolux/AYP 530037652

Heat Insulator

$

$

Not available

16

Electrolux/AYP 530052296

Assy. -Wire Harness

$7.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 530069608

Kit-Engine Gasket

Note: (Incl. 25, 33 & 36)

$8.99

$

In Stock, Qty 12

0

18

Electrolux/AYP 530047442

Strap-Ground

$3.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 530039167

Module- Ignition
(Superseded to 530071905)

$66.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 16

0

21

Electrolux/AYP 530047207

Assy-Muffler
(Superseded to 530071904)

Note: (Incl. 22-26)

$20.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 530016132

Screw

$6.49

$

In Stock, Qty 10

0

23

Electrolux/AYP 530036103

Screen-Spark

$

$

Not available

24

Electrolux/AYP 530037813

Diffuser-Muffler

$4.99

$

In Stock, only 1 left!

0

25

Electrolux/AYP 530069608

Gasket-Muffler (kit)

$8.99

$

In Stock, Qty 12

0

26

Electrolux/AYP 530049870

Backplate-Muffler

$6.49

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 530047062

Assy. - Crankshaft
(Superseded to 545113101)

$72.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 530037935

Cap-Crankcase

$10.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 530056363

Assy.-Seal & Bearing

$18.99

$

In Stock, only 2 left!

0

30

Electrolux/AYP 530069604

Kit-Piston

Note: (Incl. 31 & 32)

$

$

Not available

31

Electrolux/AYP 530015697

Retainer-Piston Pin

$6.49

$

In Stock, Qty 6

0

32

Electrolux/AYP 530029805

Ring - Piston

$6.49

$

In Stock, Qty 17

0

33

Electrolux/AYP 530069608

Gasket-Carb. Adap.(kit)

$8.99

$

In Stock, Qty 12

0

34

Electrolux/AYP 530016187

Screw

$6.49

$

In Stock, only 2 left!

0

35

Electrolux/AYP 530016386

Screw

$8.99

$

In Stock, only 1 left!

0

36

Electrolux/AYP 530069608

Gasket - Carb. (kit)

$8.99

$

In Stock, Qty 12

0

37

Electrolux/AYP 530069703

Kit-Carburetor (WT-324)
(Superseded to 545081885)

$34.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 530037804

Housing- Air Filter
(Superseded to 530057480)

$

$

Not available

39

Electrolux/AYP 530031163

Wrench - Bar

$9.99

$

In Stock, Qty 12

0

39

Electrolux/AYP 530163668

Operator Manual

Note: Not Shown

$6.49

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 530057268

Decal Instruction

Note: Not Shown

$

$

Not available

39

Electrolux/AYP 530038486

Decal Stop

Note: Not Shown

$

$

Not available
