2150 PR - Poulan Chainsaw (Original) Engine Type 6 Parts Diagram

Chainsaw

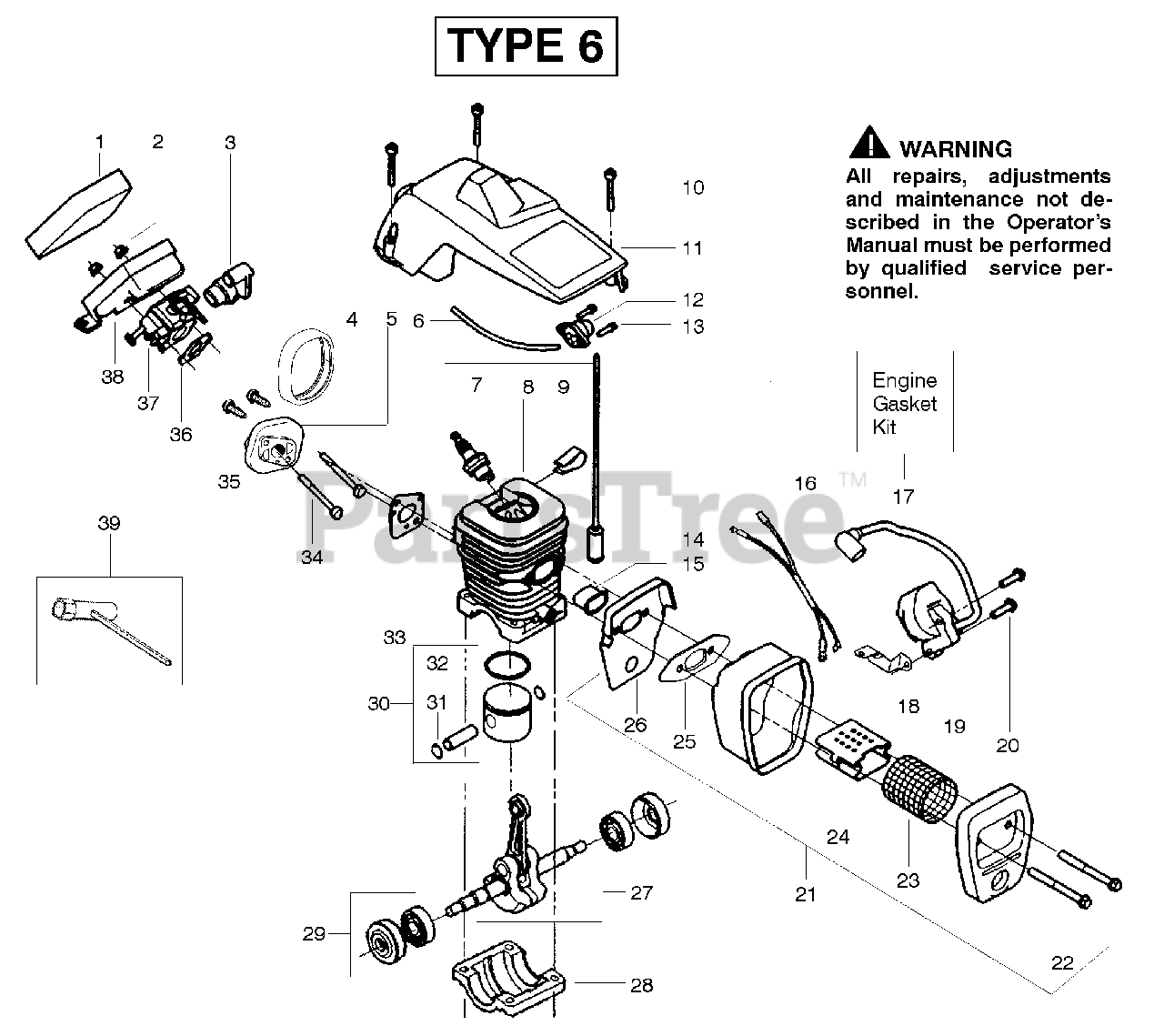

Engine Type 6 Parts Diagram

  • Title

1

Poulan 530037793

Foam- Air Filter

$4.99

$

In Stock, Qty 7

0

2

Poulan 530016101

Nut

$6.49

$

In Stock, only 2 left!

0

3

Poulan 530035526

Grommet-Carb Adjust

$

$

Not available

4

Poulan 530054144

Seal-Carb Adapter

$

$

Not available

5

Poulan 530049700

Adapter-Carb.

$10.99

$

In Stock, only 1 left!

0

6

Poulan 530069247

Kit-Fuel Line (Small)

$7.99

$

In Stock, Qty 20+

0

7

Poulan 952030150

Spark Plug (RCJ-7Y)

$3.49

$

In Stock, Qty 20+

0

8

Poulan 530071412

Kit-Cylinder
(Superseded to 530012550)

$51.99

$

Usually ships in 3-10 days

0

9

Poulan 530016136

Clip-High Tension Lead

$3.99

$

Usually ships in 3-10 days

0

10

Poulan 530016153

Screw

$6.49

$

Usually ships in 3-10 days

0

11

Poulan 530049227

Shield-Cylinder

$12.99

$

Usually ships in 3-10 days

0

12

Poulan 530047213

Assy- Air Purge
(Superseded to 530071835)

$11.99

$

In Stock, Qty 14

0

13

Poulan 530015780

Screw

$6.49

$

In Stock, only 2 left!

0

14

Poulan 530095646

Assy-Fuel Pick-up

$6.99

$

In Stock, Qty 20+

0

15

Poulan 530037652

Insulator-Heat

$

$

Not available

16

Poulan 530052296

Assy. -Wire Harness

$7.49

$

Usually ships in 3-10 days

0

17

Poulan 530069608

Kit-Engine Gasket

Note: (Incl. 25, 33 & 36)

$8.99

$

In Stock, Qty 13

0

18

Poulan 530047442

Strap-Ground

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 530039198

Module- Ignition

$56.99

$

In Stock, only 1 left!

0

20

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 16

0

21

Poulan 530047207

Assy-Muffler
(Superseded to 530071904)

Note: (Incl. 22-26)

$20.99

$

Usually ships in 3-10 days

0

22

Poulan 530016132

Screw

$6.49

$

In Stock, Qty 10

0

23

Poulan 530036103

Screen-Spark

$

$

Not available

24

Poulan 530037813

Diffuser-Muffler

$4.99

$

In Stock, only 1 left!

0

25

Poulan 530069608

Gasket-Muffler(kit)

$8.99

$

In Stock, Qty 13

0

26

Poulan 530049870

Backplate-Muffler

$6.49

$

Usually ships in 3-10 days

0

27

Poulan 530047062

Assy. - Crankshaft
(Superseded to 545113101)

$72.99

$

In Stock, only 1 left!

0

28

Poulan 530037935

Cap-Crankcase

$10.99

$

Usually ships in 3-10 days

0

29

Poulan 530056363

Assy.-Seal & Bearing

$18.99

$

In Stock, only 2 left!

0

30

Poulan 530071408

Kit-Piston

Note: (Incl. 31 & 32)

$

$

Not available

31

Poulan 530015697

Retainer-Piston Pin

$6.49

$

In Stock, Qty 6

0

32

Poulan 530038729

Ring - Piston
(Superseded to 545160401)

$6.49

$

In Stock, only 1 left!

0

33

Poulan 530069608

Gasket - Adapter(kit)

$8.99

$

In Stock, Qty 13

0

34

Poulan 530016187

Screw

$6.49

$

In Stock, only 2 left!

0

35

Poulan 530016386

Screw

$8.99

$

In Stock, only 1 left!

0

36

Poulan 530069608

Gasket - Carb.(kit)

$8.99

$

In Stock, Qty 13

0

37

Poulan 530071620

Kit-Carburetor (WT-624)
(Superseded to 545081885)

$34.99

$

Usually ships in 3-10 days

0

38

Poulan 530037804

Housing- Air Filter
(Superseded to 530057480)

$

$

Not available

39

Poulan 530031163

Wrench - Bar

$9.99

$

In Stock, Qty 12

0

39

Poulan 530163668

Operator Manual

Note: Not Shown

$6.49

$

Usually ships in 3-10 days

0

39

Poulan 530057757

Decal - Warning

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0
